More fuselage and wing prep

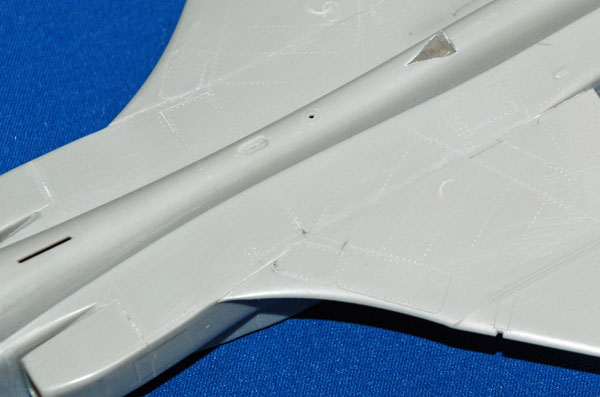

Hopefully you can see here that the top wing join is all sorted and the rivet detail lost in the sanding process, reinstated. I plan to attach the re-worked wing fences later, once all the rest of the sanding and re-scribing of the underside is complete.

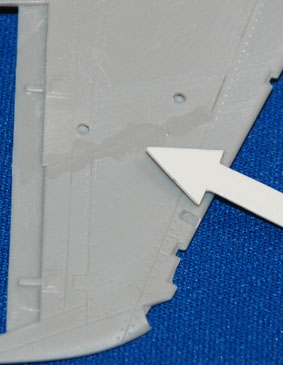

You can see the underside of the wing join in this pic that has liquid poly showing – even here the join isn’t that good and despite thinning the inside edge of the wing it still sat proud and needed sanding, re-scribing of the detail and re-riveting.
Wing stores pylons

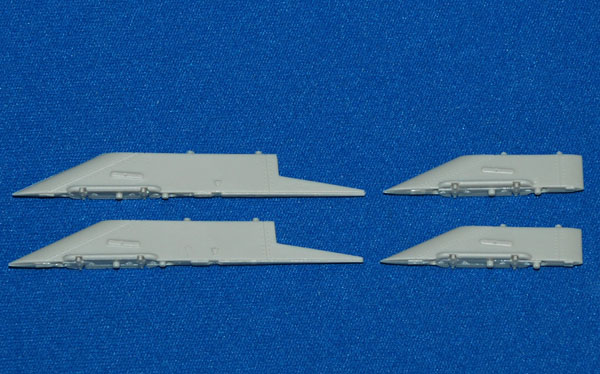

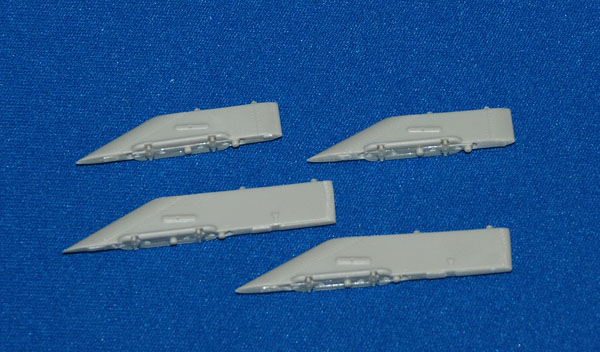

Here’s the classic before and after photos showing how the French shaped pylons have been modified to better represent the pylons fitted to RAF Jaguars – a very straightforward task using a scalpel and sanding sticks. The separate stores sway-braces fit perfectly.
Intake vent doors

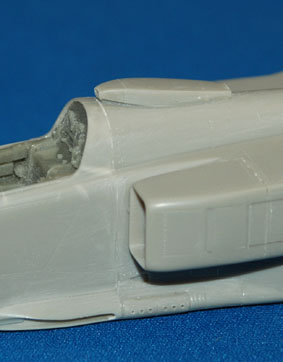

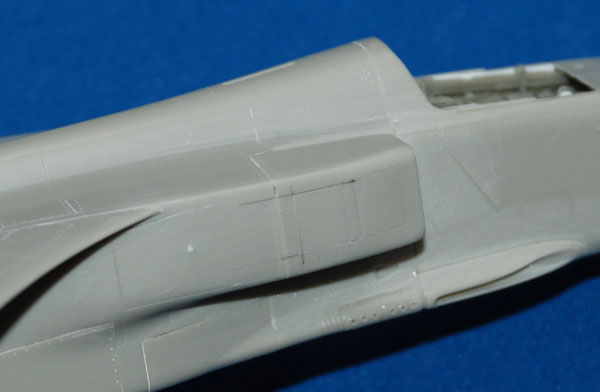

Only one of the square-shaped vent doors is moulded on each side of the kit intakes – there should be 2. Some careful re-scribing, steel rules and templates enabled this to be done quite quickly.
