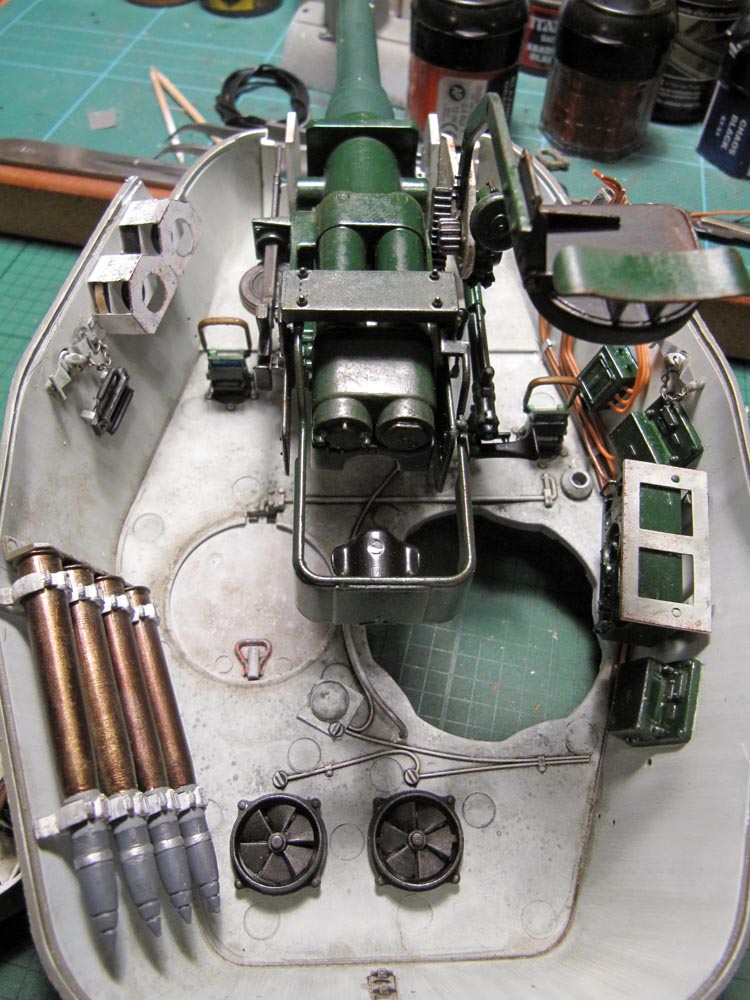

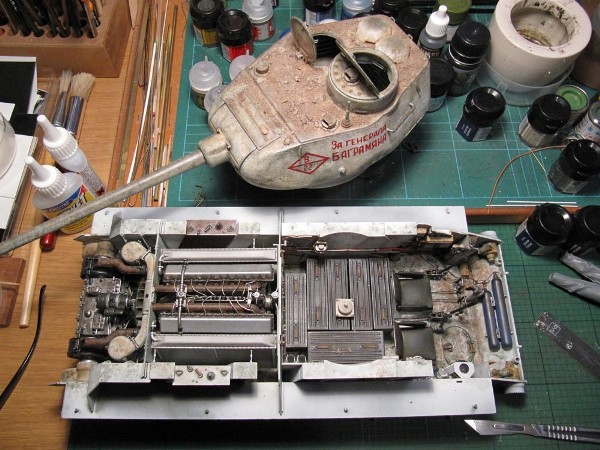

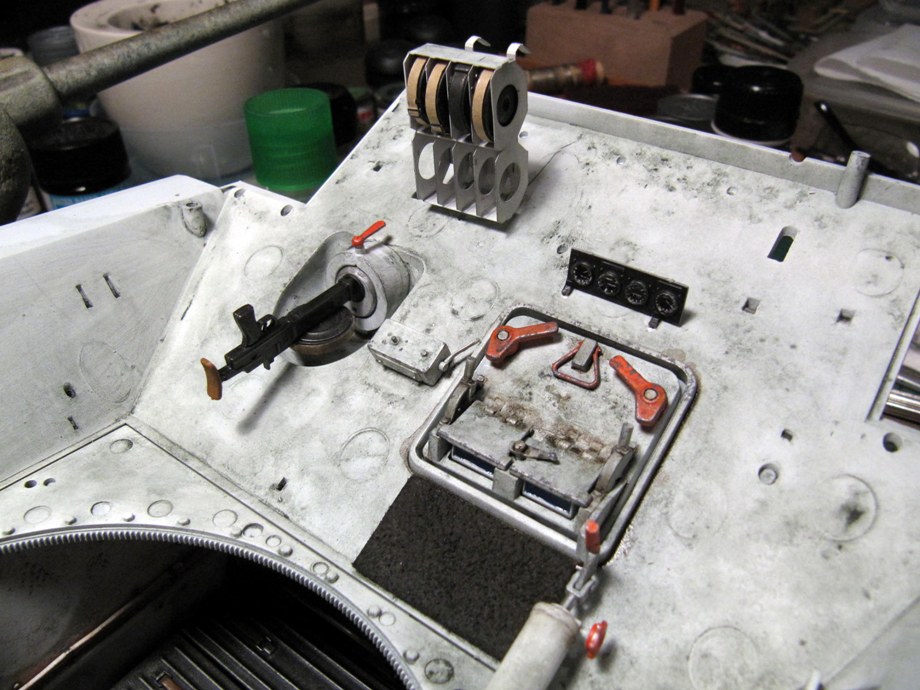

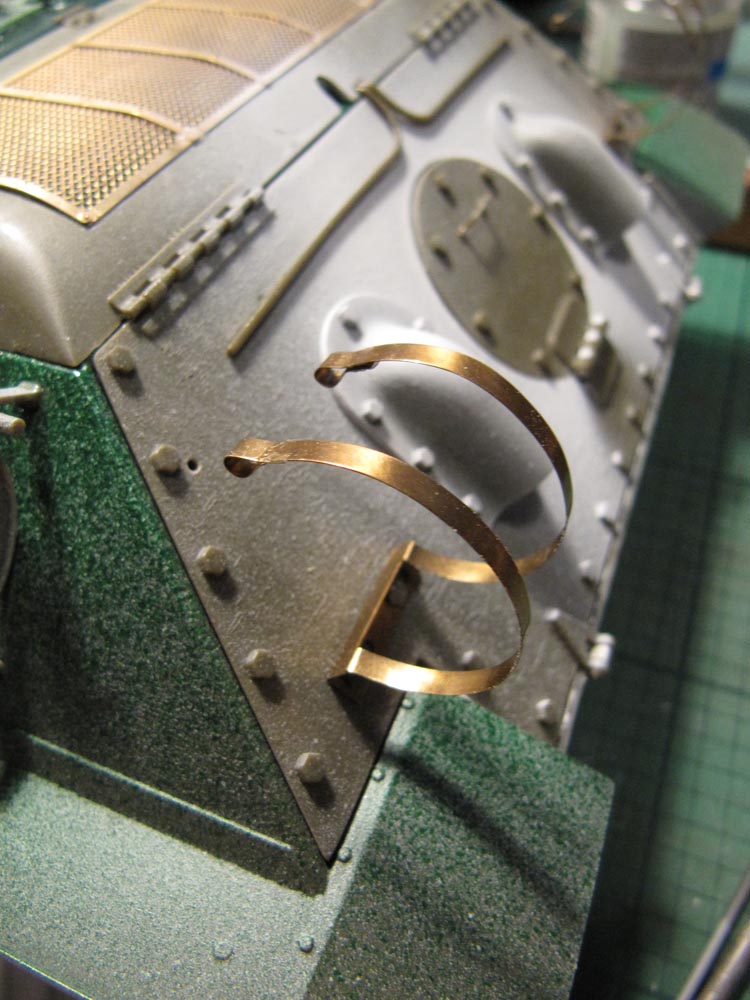

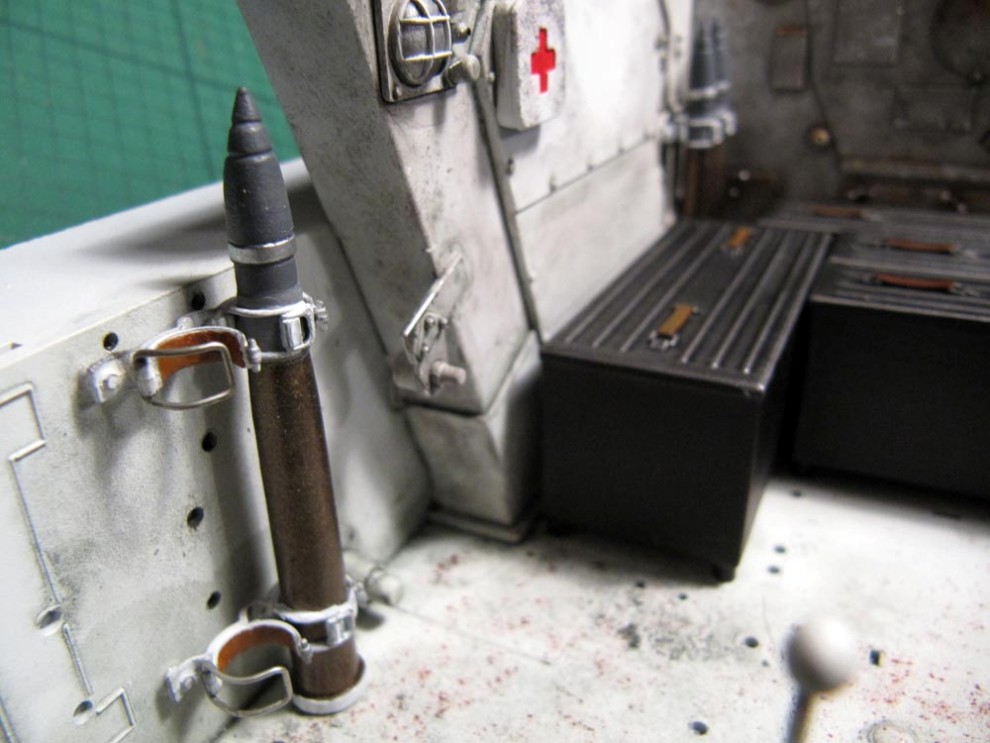

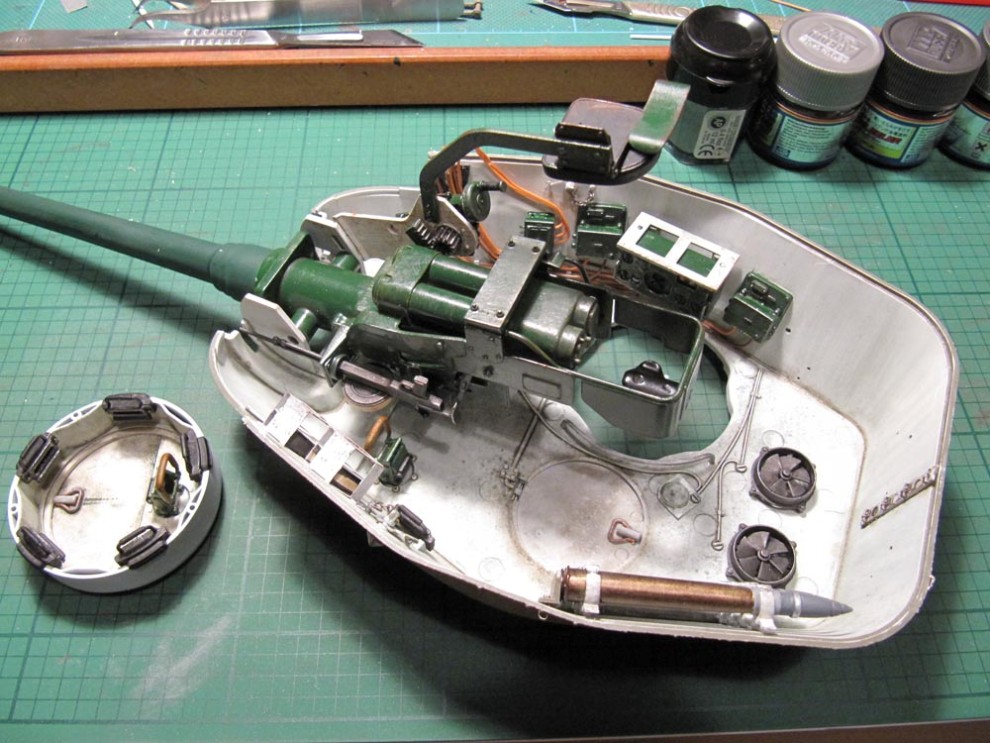

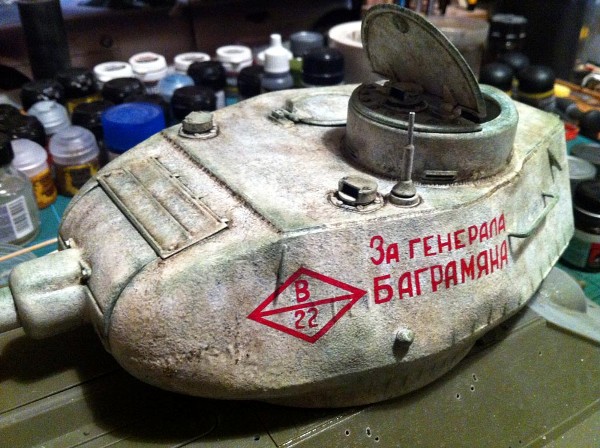

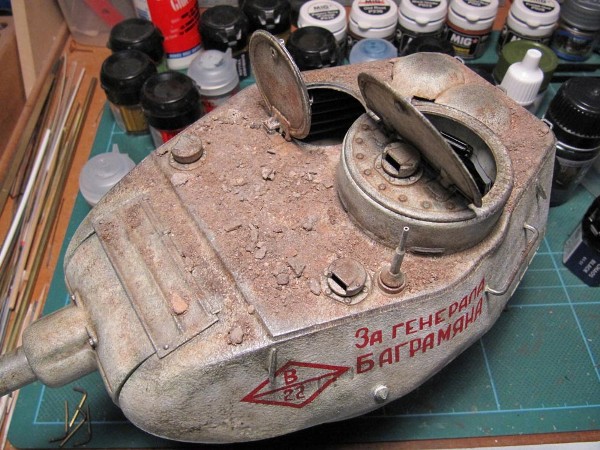

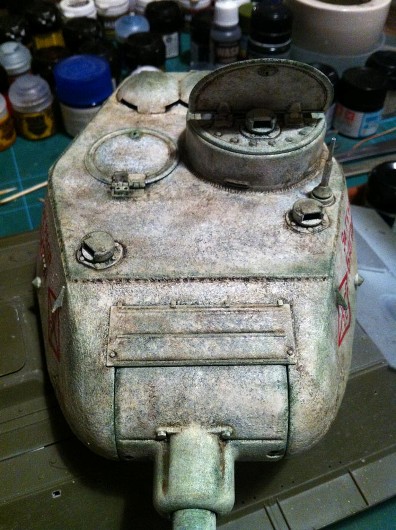

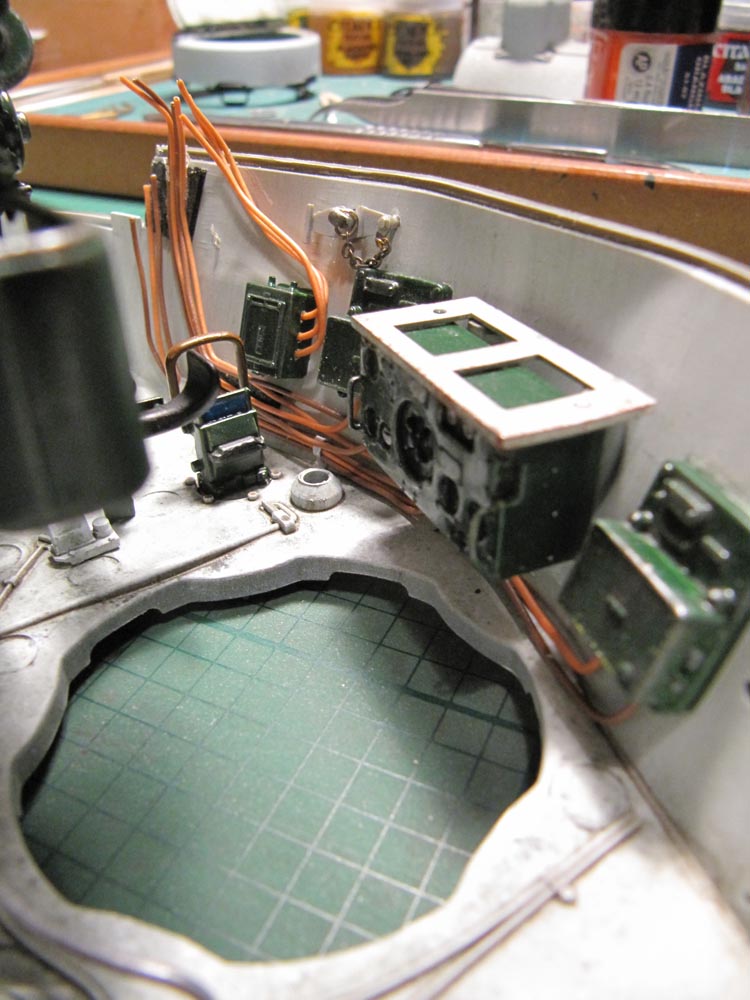

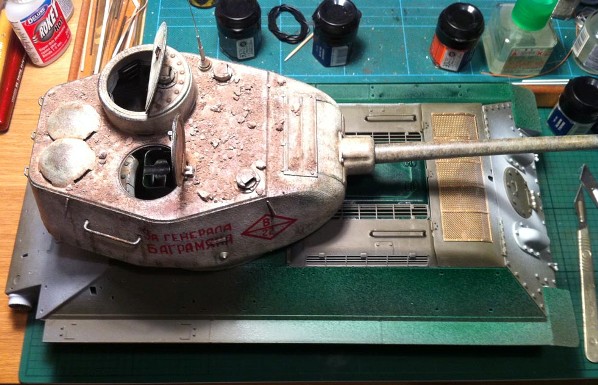

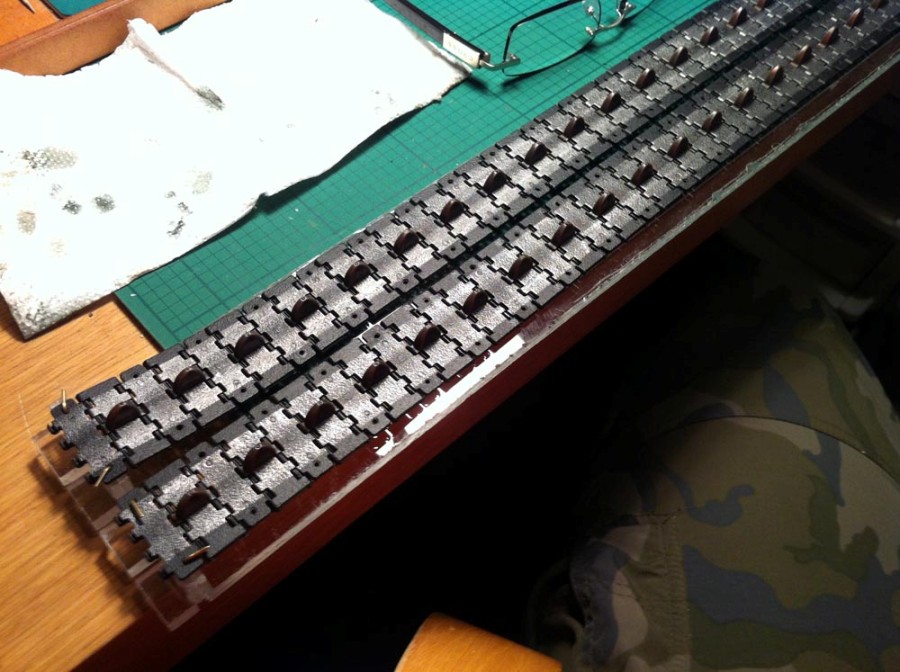

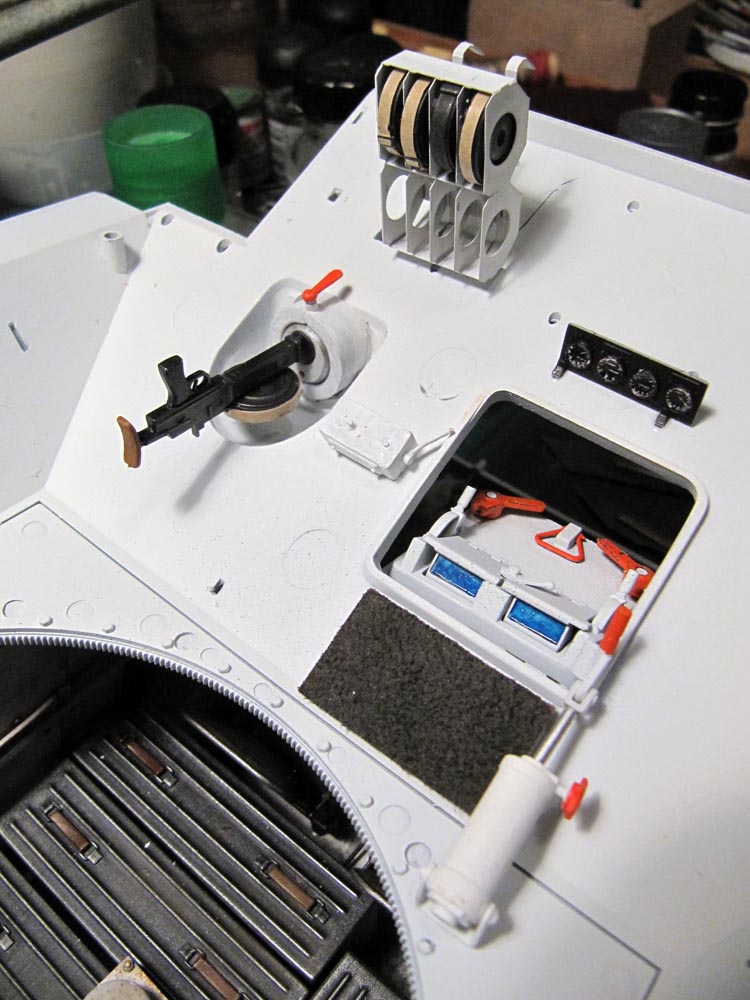

Here are some other photos taken during construction.
Gallery

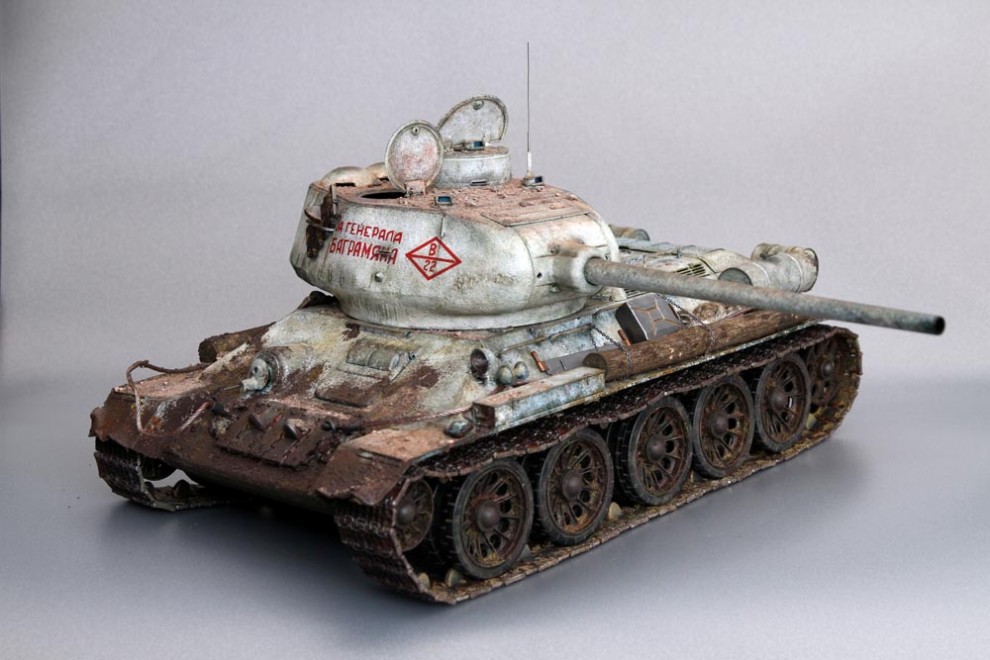

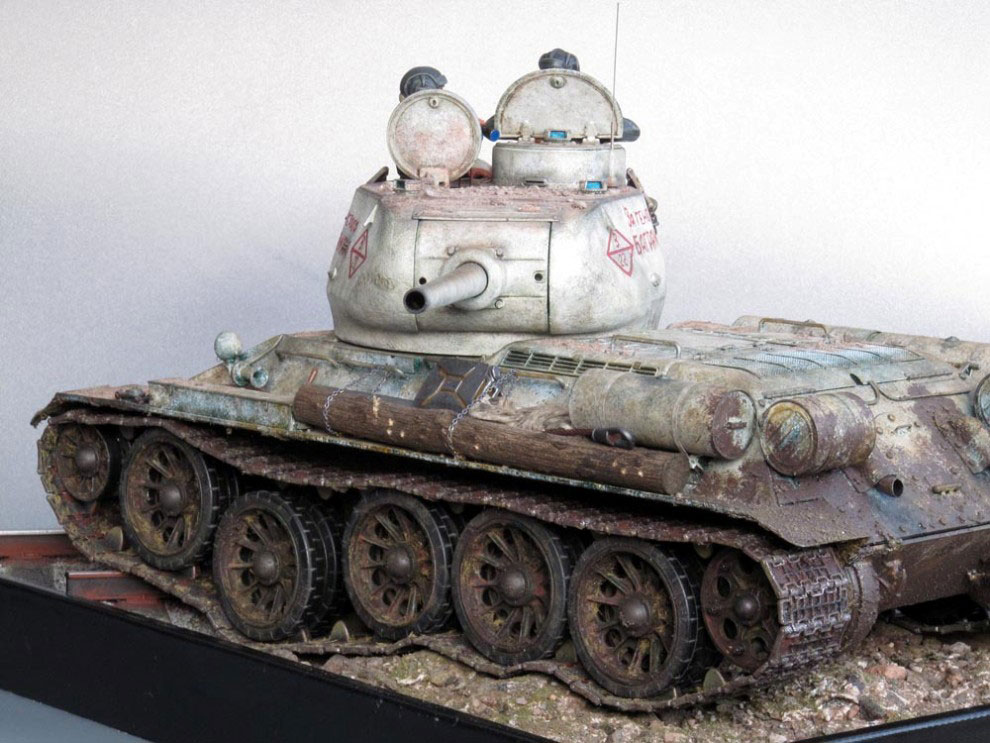

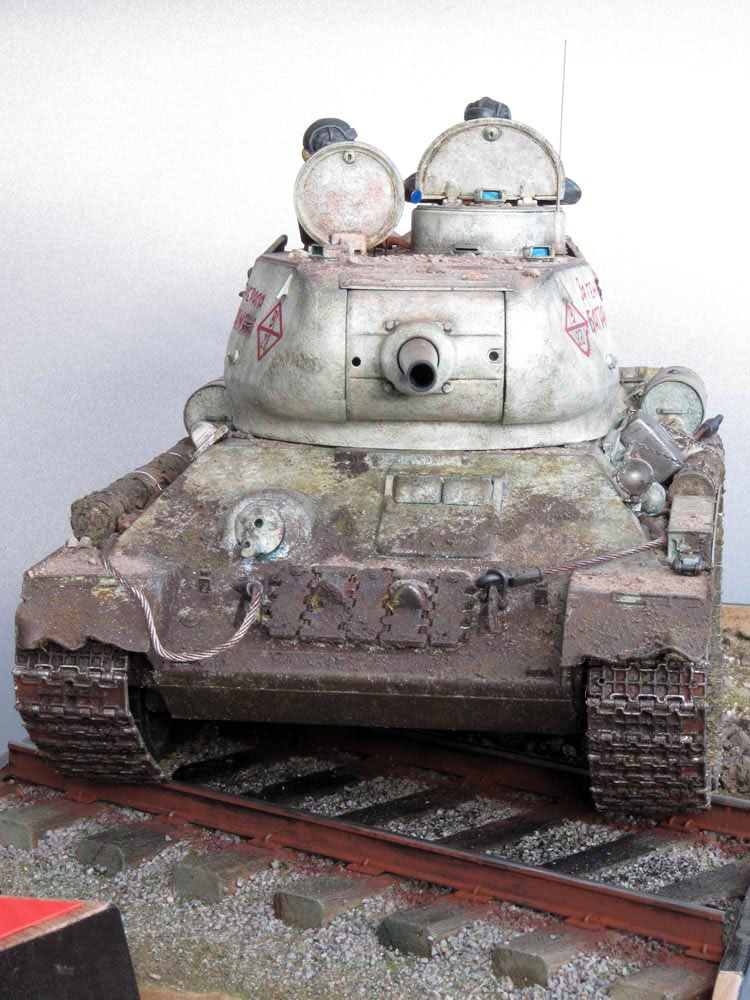

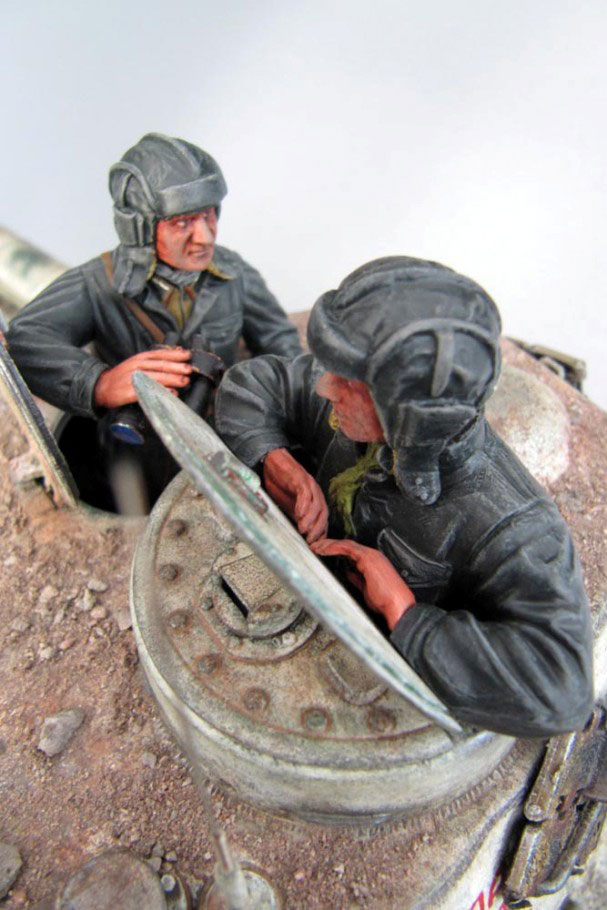

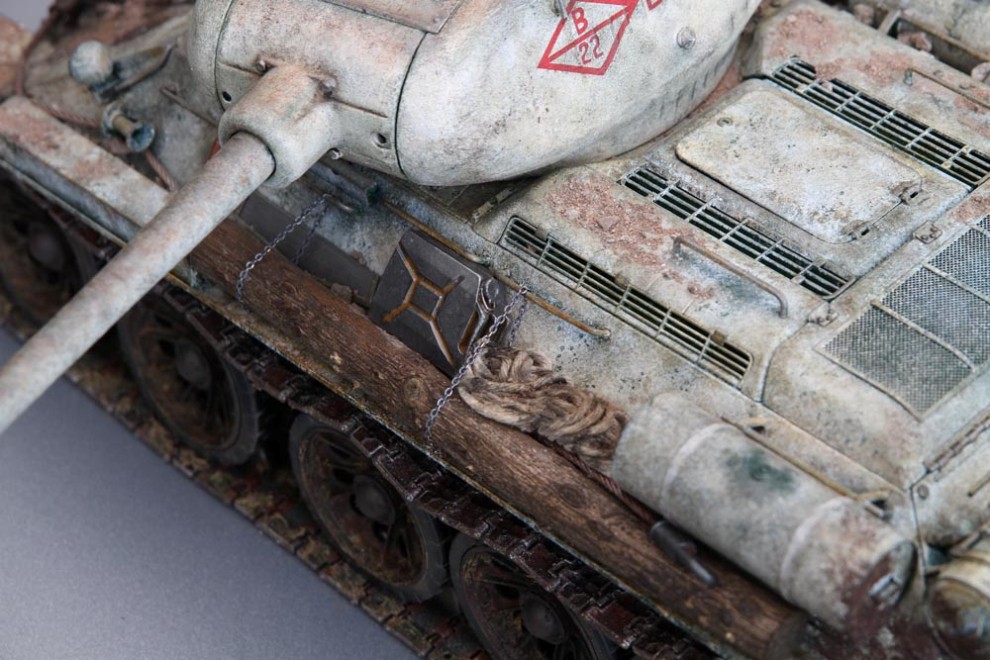

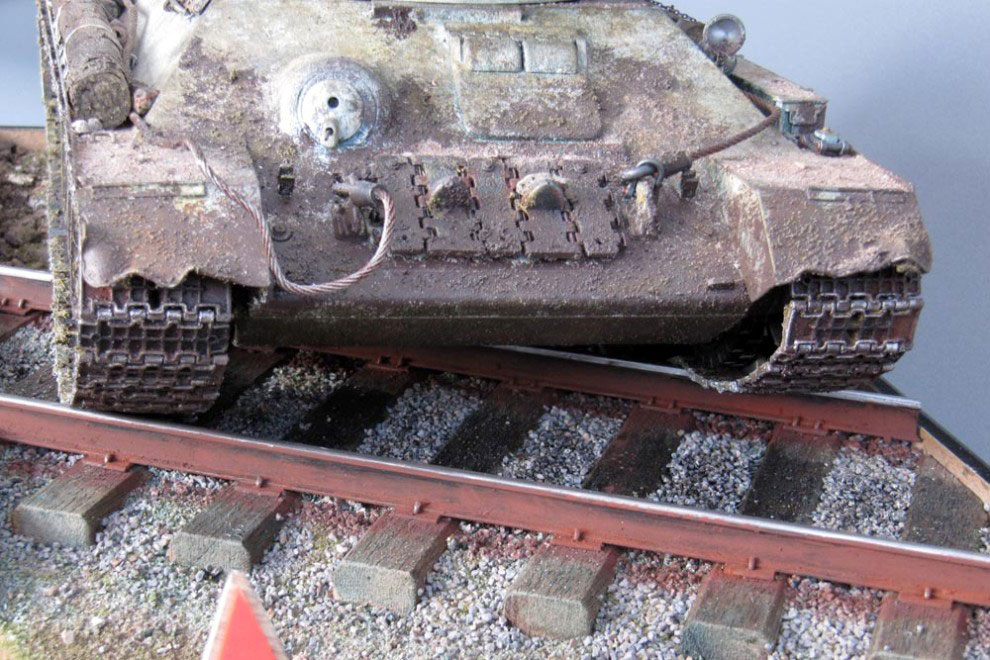

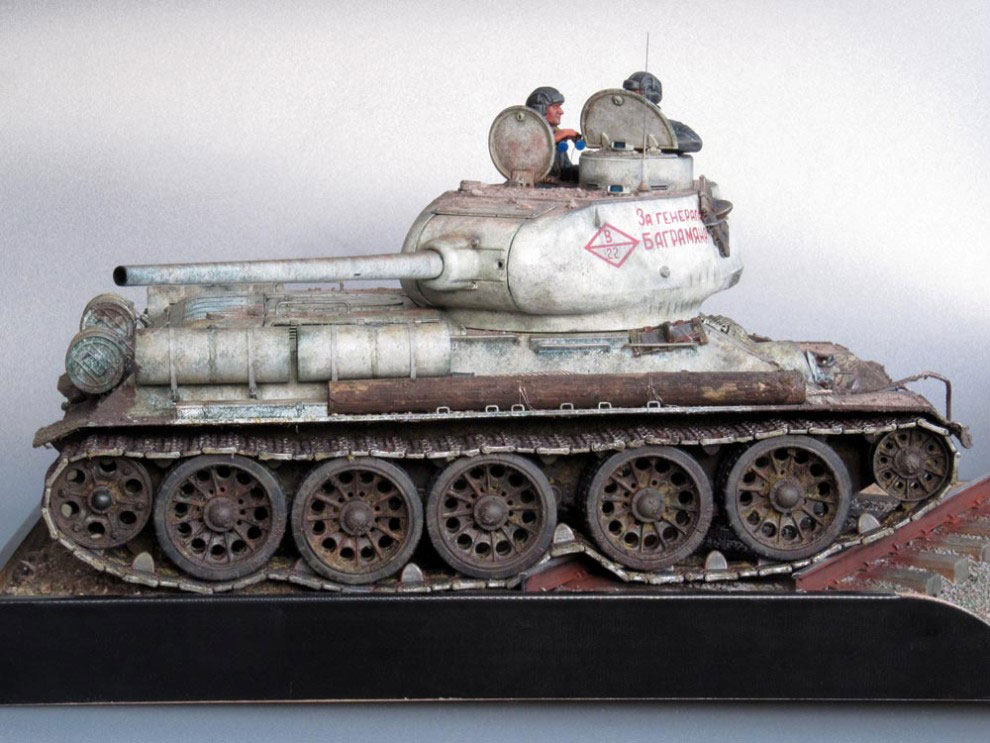

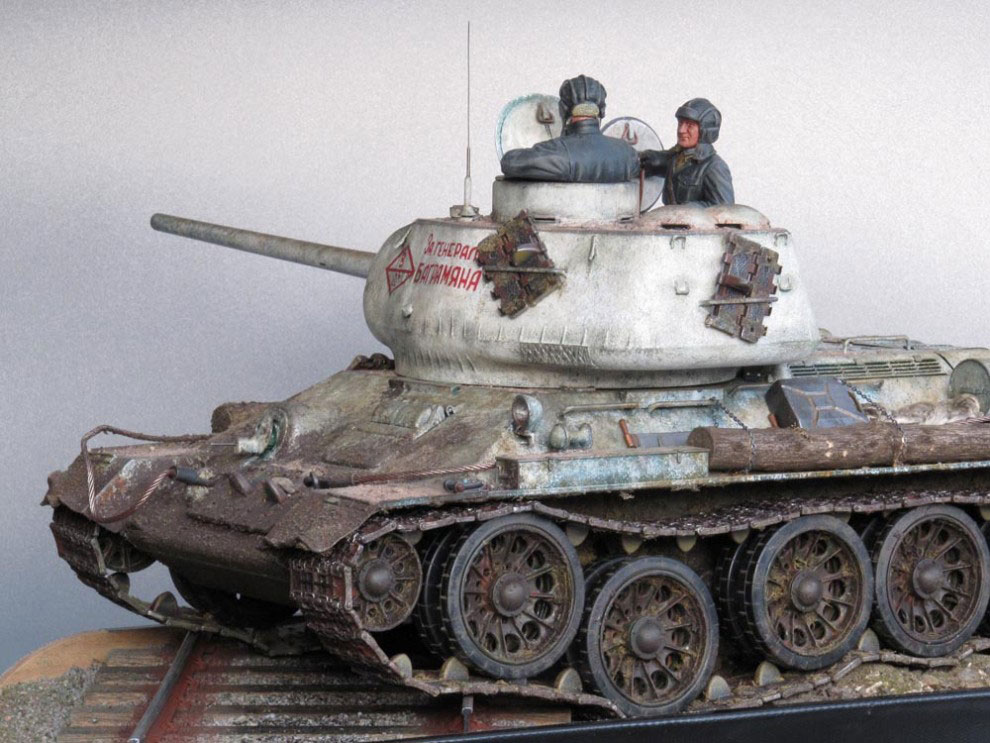

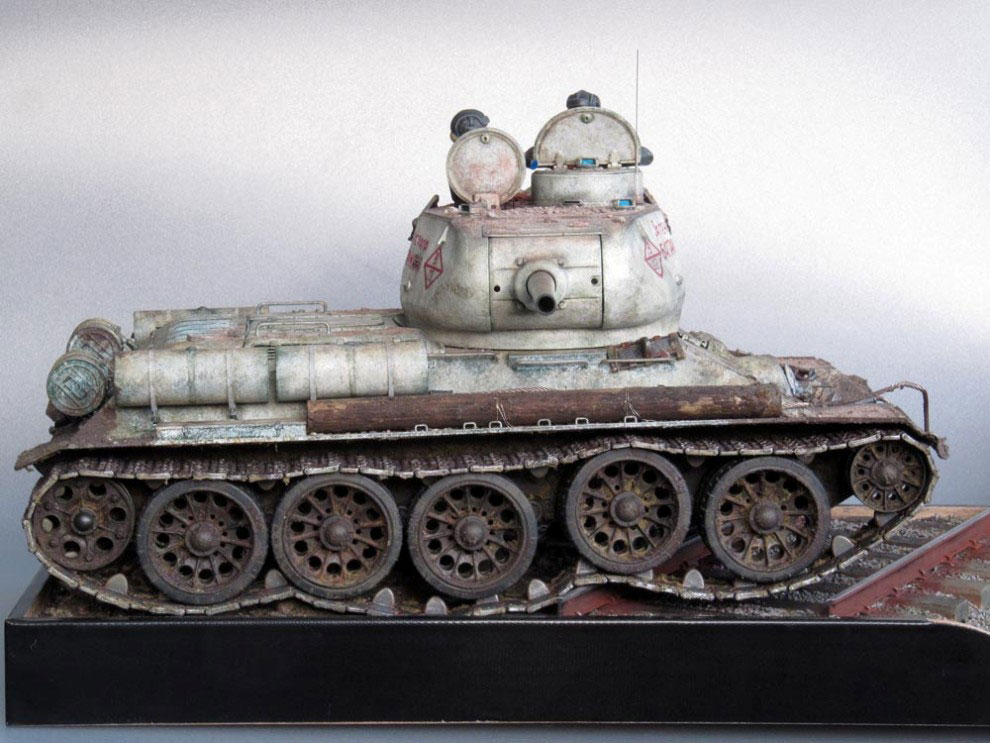

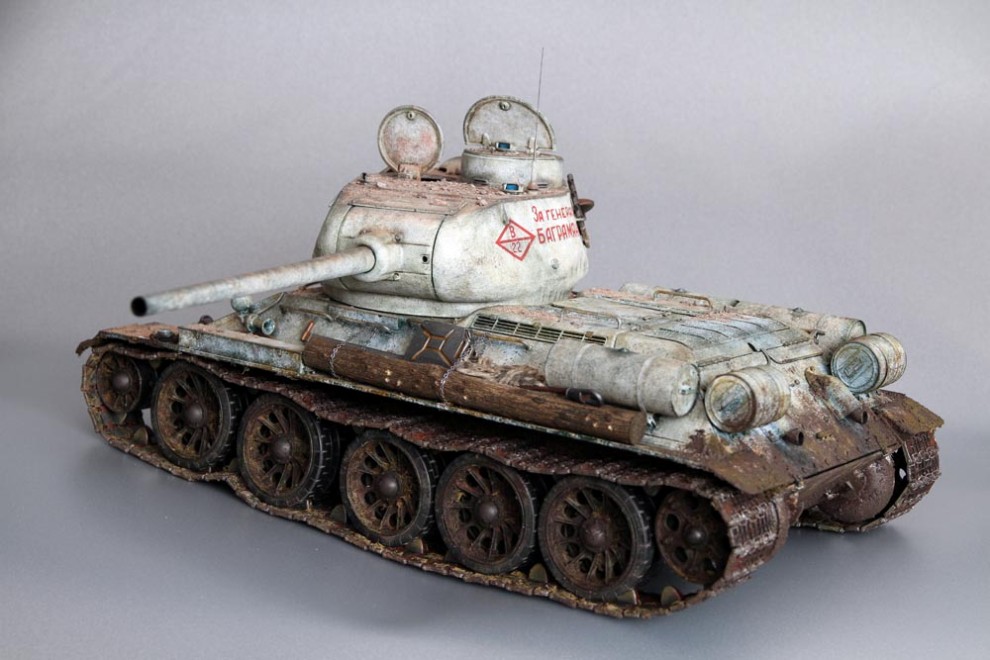

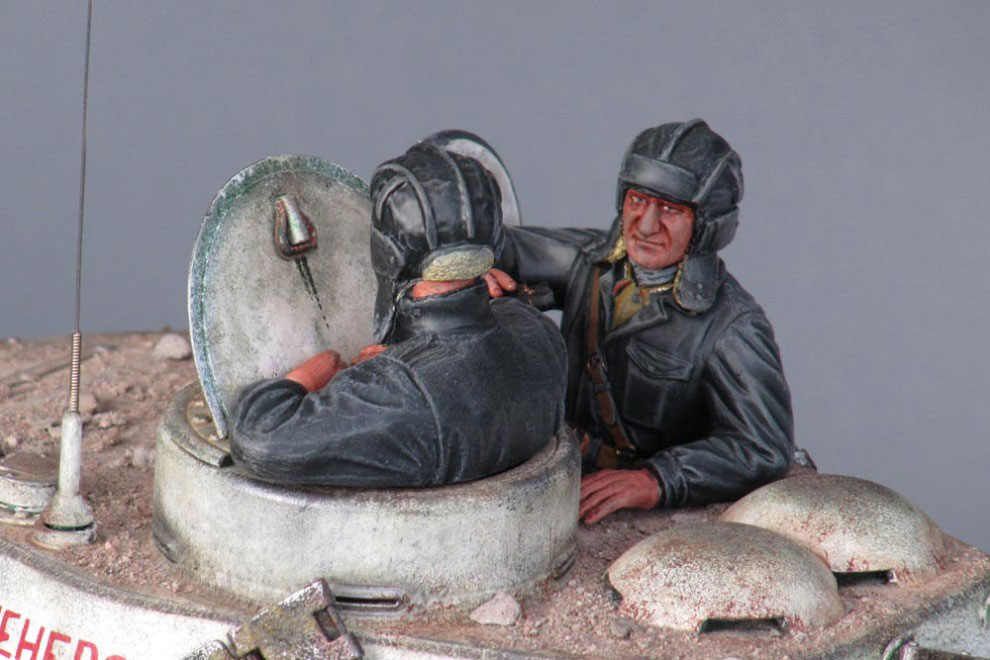

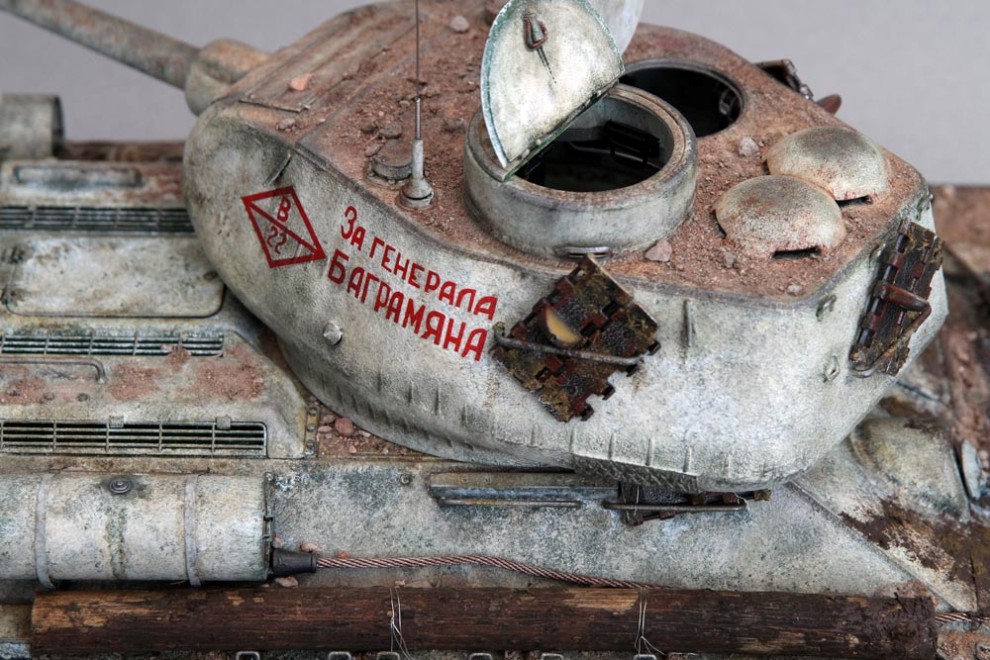

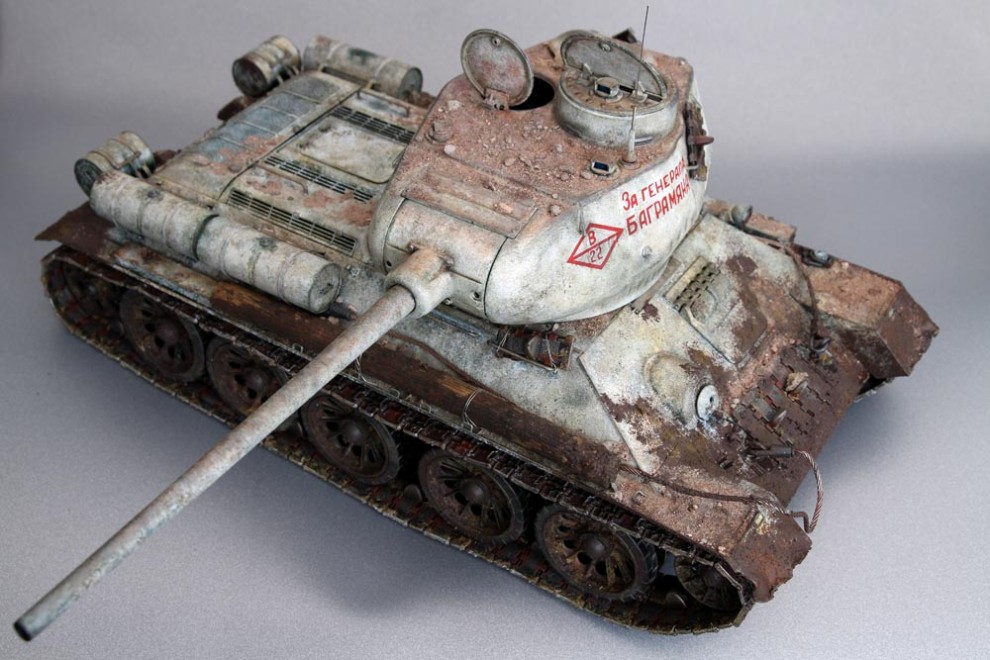

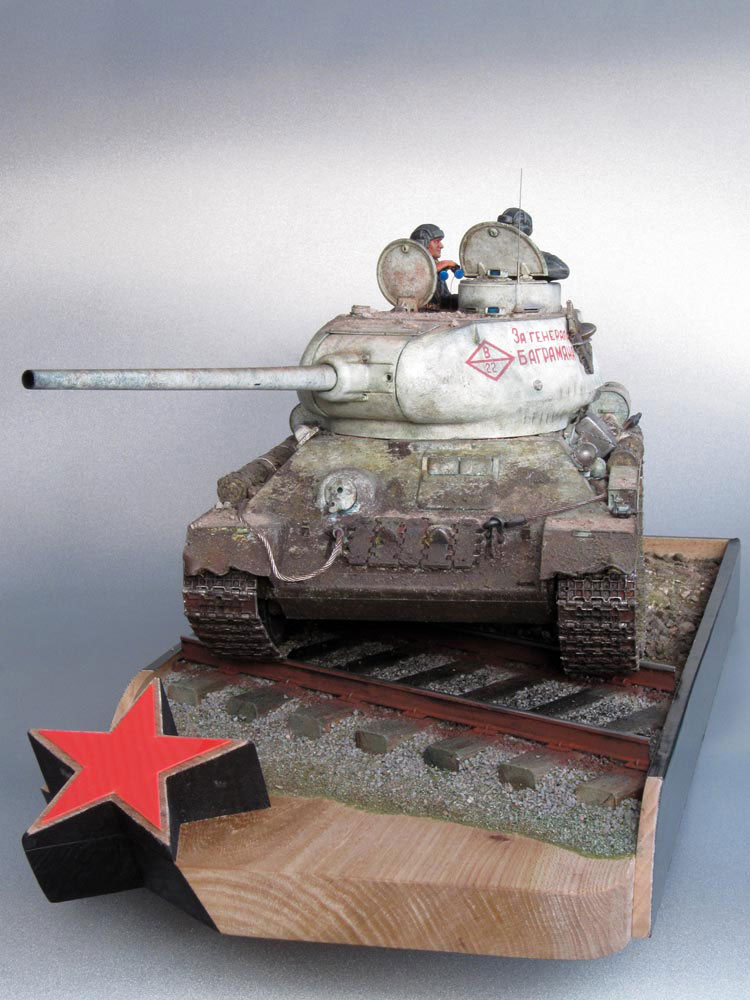

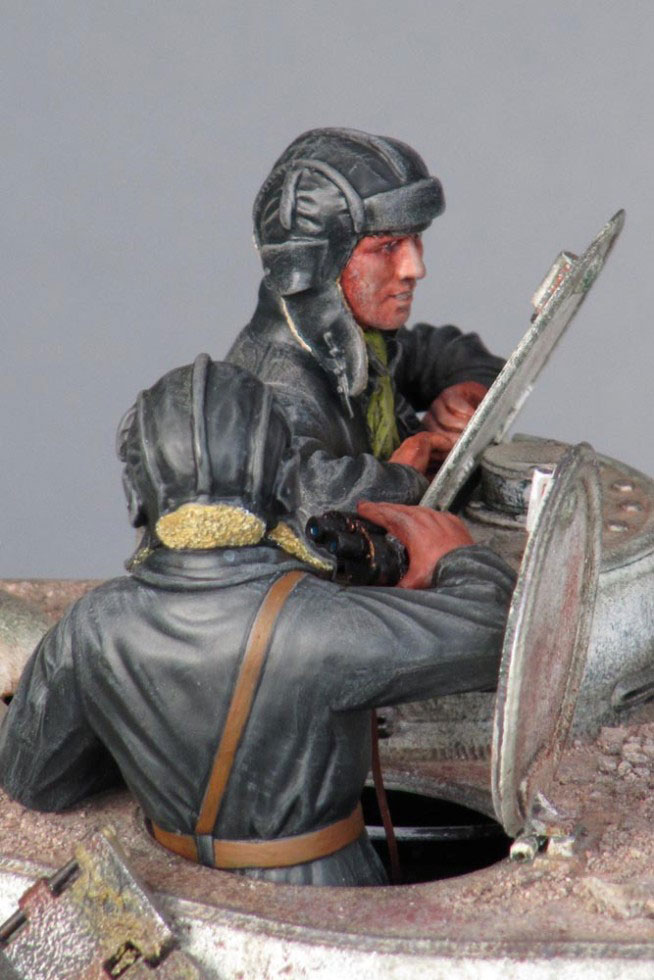

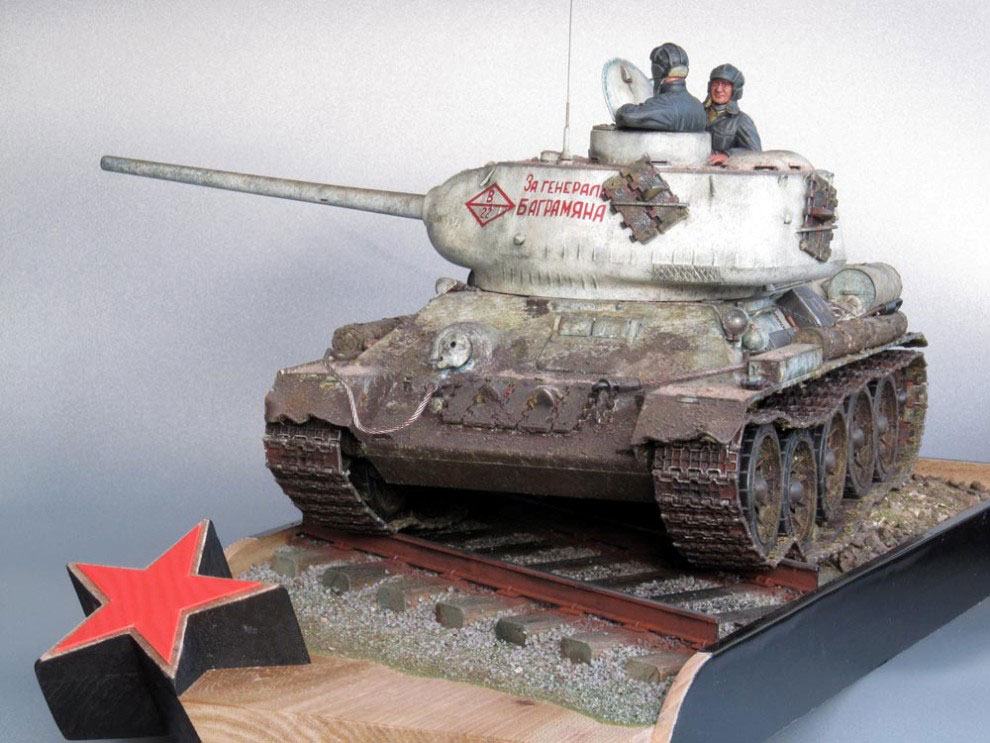

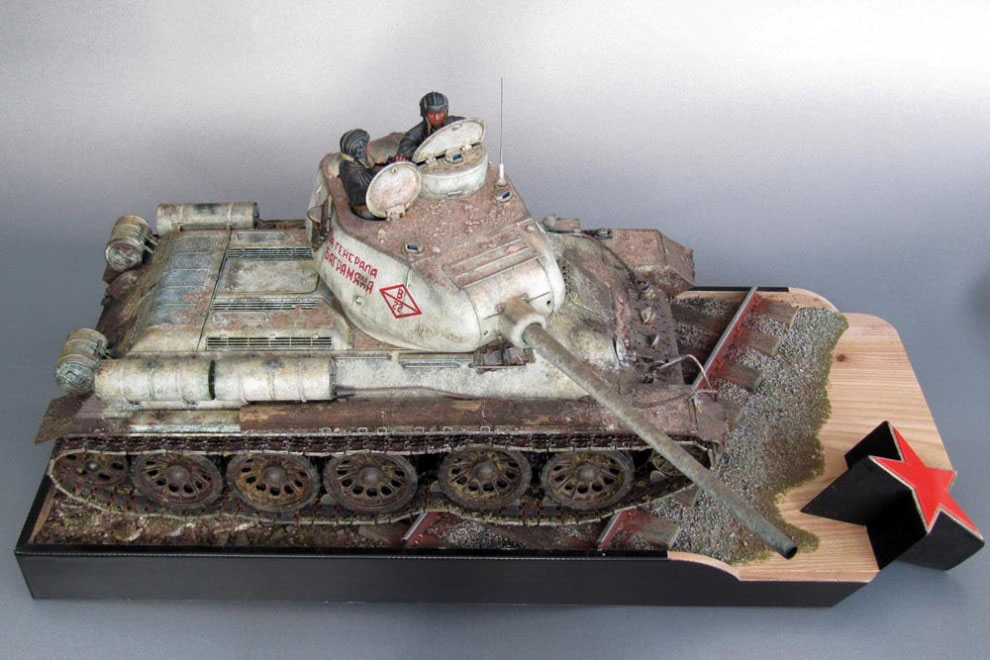

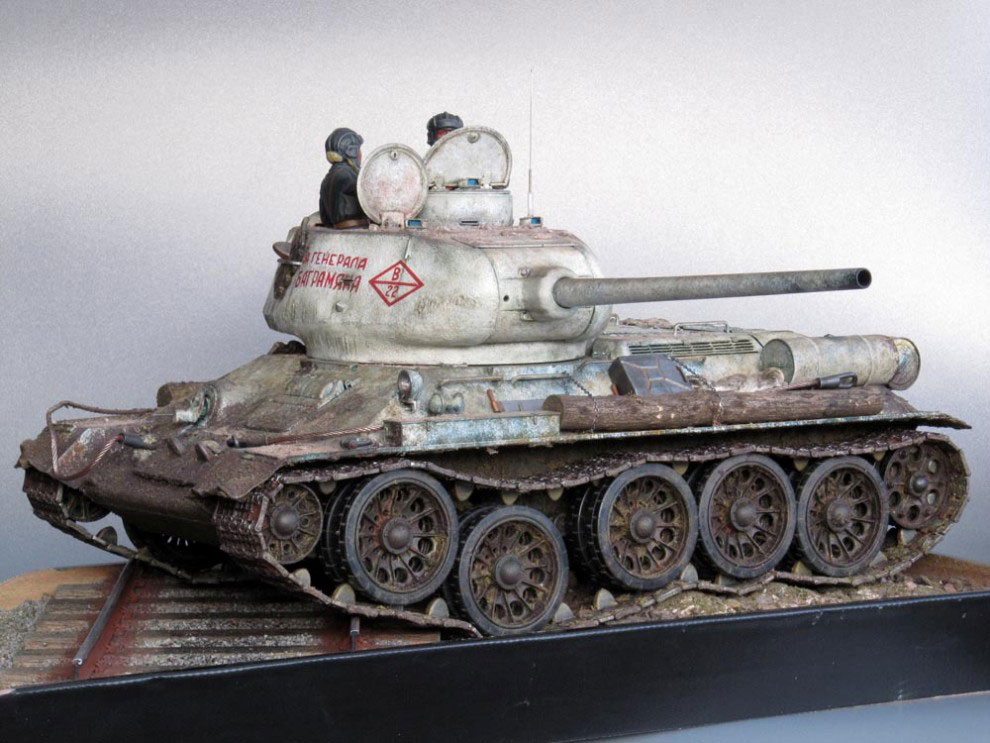

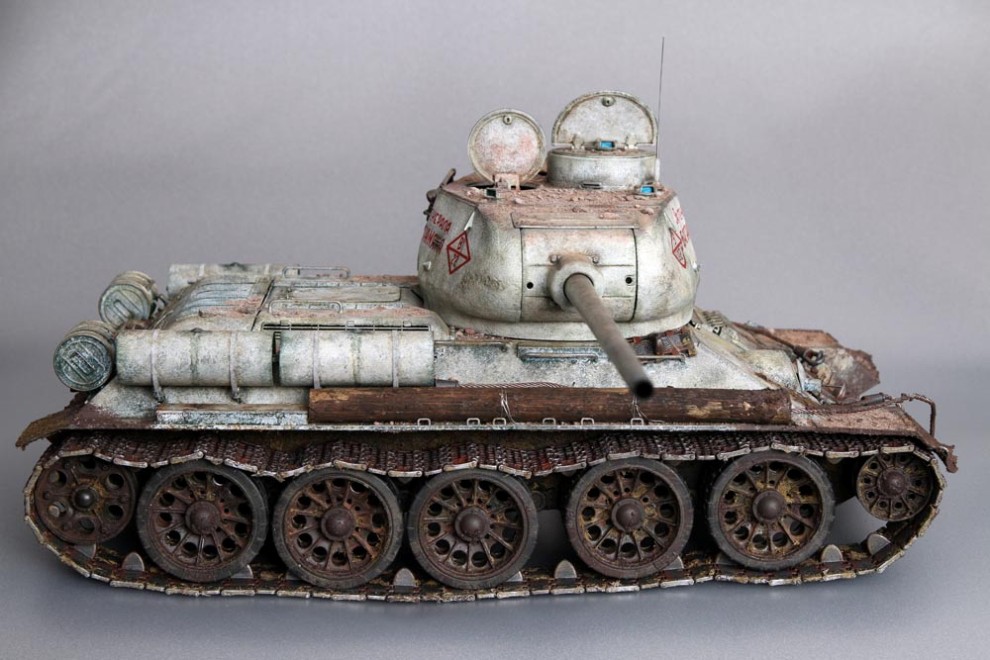

Below are a series of images of the completed model. Click on a thumbnail to see the enlarged image.
You can download a pdf of the Full Article here.
(Download a free copy of Adobe Acrobat Reader here)
Here’s a little bit of background to the T-34/85 and combat assessment *
As the war went on, the T-34 gradually lost the innovative design advantages it had at the beginning of the German invasion in 1941. As the war progressed it had become an increasingly easy target for the more powerful 75mm and 88mm armed tanks; weapons could even pierce the turret relatively easily. It should be noted that the turret armour, which was cast, was softer than that of the other parts of the tank and it offered poor resistance even to the 37 mm shells of automatic AA guns.
The 85 mm ZiS gun of the T-34/85 greatly increased firepower over the previous 76.2 mm F-34 cannon on the T-34/76. The length of the 85 mm gun barrel (4.645 meters) made it necessary to be careful not to dig it into the ground on bumpy roads or in combat; A.K. Rodkin commented: “the tank could have dug the ground with it in the smallest ditch. If you fired it after that, the barrel would open up at the end like the petals of a flower.”
At the start of the war, T-34s were about four percent of the Soviet tank arsenal, but by the end it comprised at least 55% of tank production (based on figures from; Zheltov 2001 lists even larger numbers). By the time the T-34 had replaced older models and became available in greater numbers, newer German tanks, including the improved Panzer V “Panther”, outperformed it. The T-34-85 tank initially cost about 30 percent more to produce than a Model 1943, at 164,000 rubles; by 1945 this had reduced to 142,000 rubles. During the course of the Great Patriotic War the cost of a T-34 tank reduced by almost half, from 270,000 rubles in 1941, while in the meantime its top speed remained about the same, and its main gun’s armour-penetration and turret frontal-armour thickness both nearly doubled.
During the last years of the war the Soviets ‘improving tactics were still inferior to the Germans’, but the Red Army’s growing operational and strategic skill and its larger inventory of tanks helped bring the loss ratios down. The T-34/85 in early 1944 did give the Red Army a tank with a better gun and turret, while its armour and mobility were arguably better than German Panzer IV and Sturmgeschütz III it could not match the Panther’s armour or its 7.5 cm KwK 42 gun. To the Soviet advantage there were far fewer Panthers than T-34s or German AFVs in general.
* Source Wikipedia
