Phinal cockpit details…
The main task at this stage is to add the prominent wiring behind the pilot and RIO. Previously I had drilled out some holes in the back of the RIOs instruments and this helped to locate the wires. I used fine lead detailing wire that’s perfect for the task.

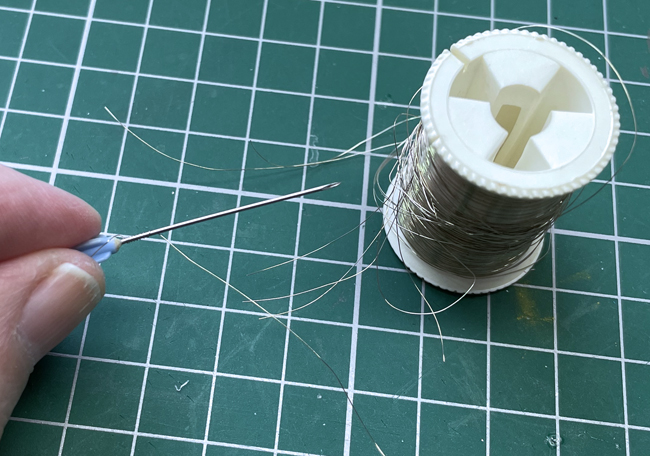

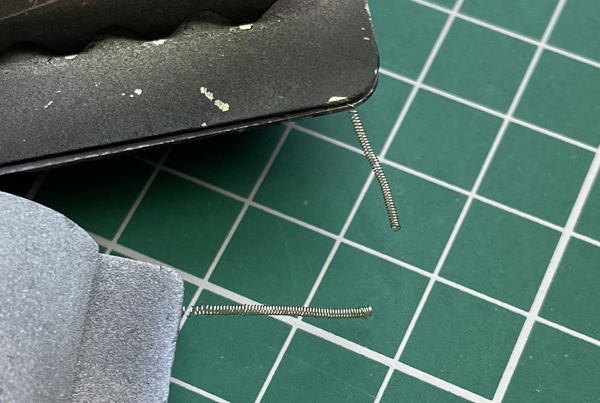

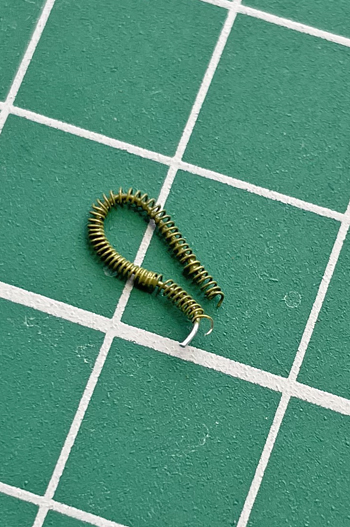

Other additions included finely coiled wire to represent the oxygen hoses and an eduard canopy detailing set (a tip is to insert a piece of flexible wire into the coil to help it to keep it’s shape). This is great because you get the canopy rails, hooks, mirrors etc that help to finish this area nicely. I also added a couple of RBF tags just stowed to add a bit more interest. If I had my time again I would definitely add the canopy set to my earlier build of my ZM F-4E Early that you may have seen.
VIDEO DEMO

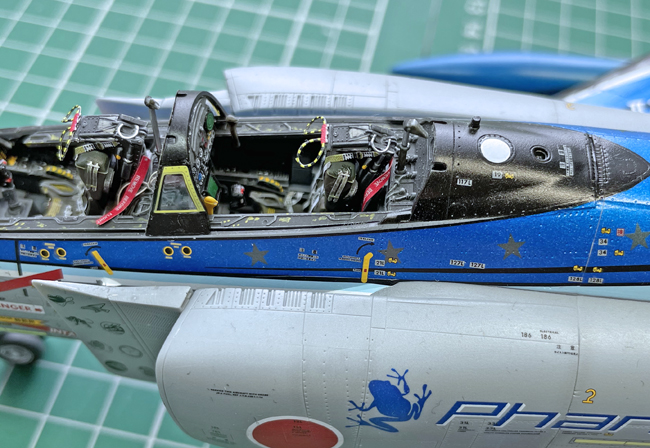

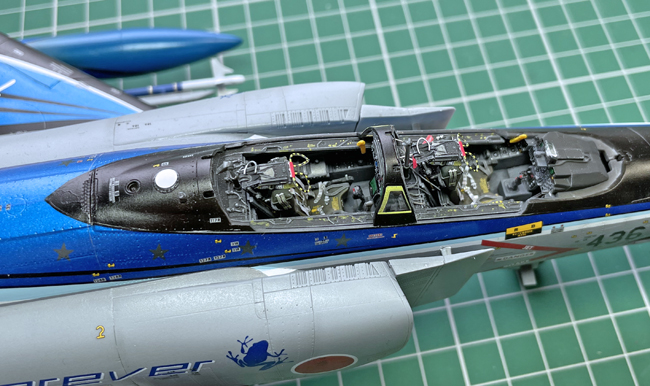

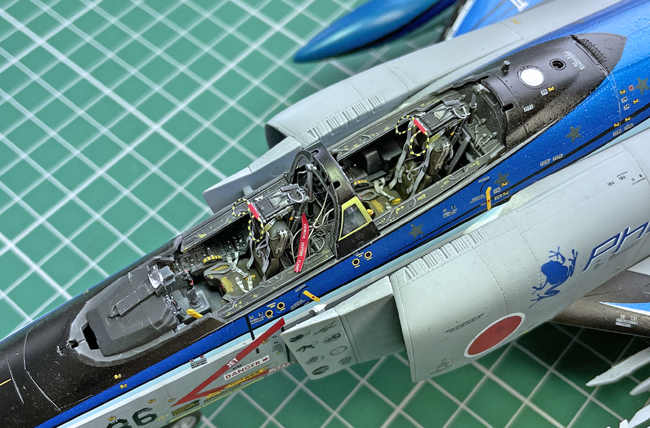

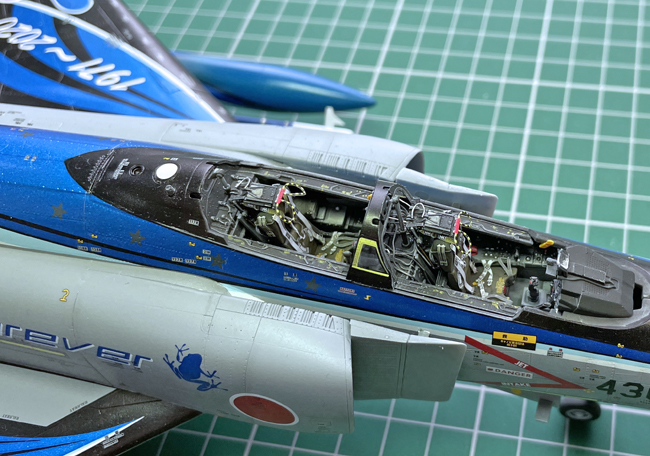

Here are a few photos showing the cockpit nearing completion.

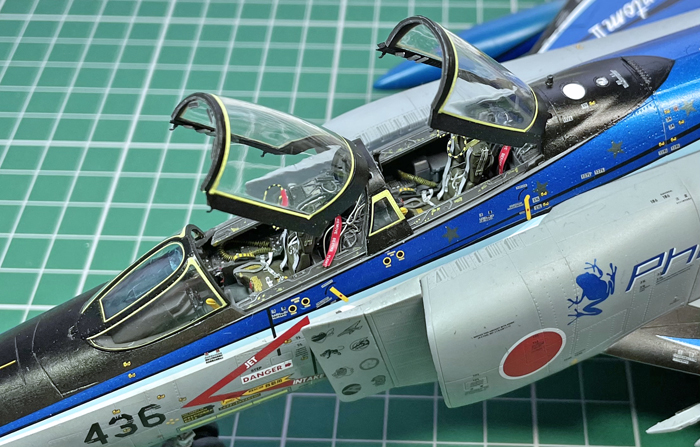

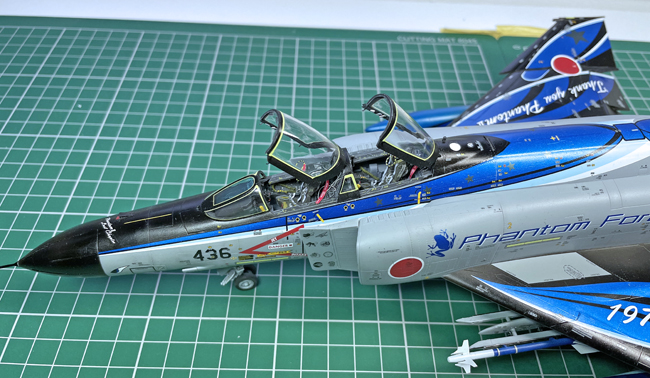

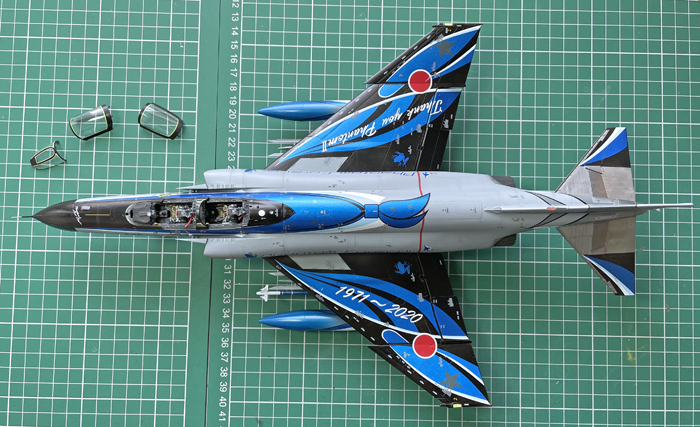

Just the canopies to add…

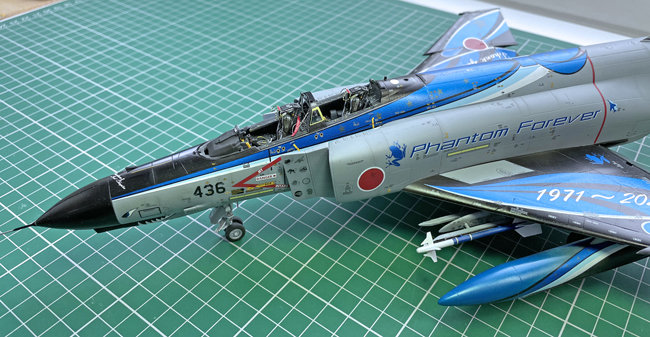

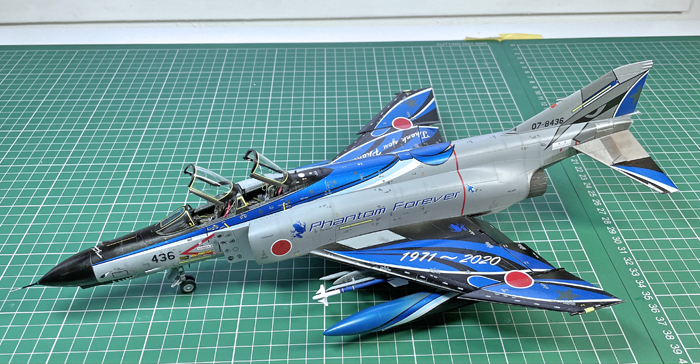

And that, as they say is that!
Paul Ainsworth says
She’s looking superb,Geoff!👏😉👍
Geoff Coughlin says
Hey, thanks Paul. Right in the middle of decaling now and what a scheme – I never thought I’d make a model with such striking markings – incredible! That will all be in the next update and I reckon you need to allow 3-4 long sessions at the bench to get through the decaling stage – I’ve only just added all the large ones and lots of small ones now! It’s still fun though :) GC
Paul Ainsworth says
You’re more than welcome,my friend.I love all the ‘special schemes’ worn on the JASDF Phantoms with just one exception and that’s the ‘Digital’.I know that’s just my personal opinion and whether it’s the colour combination used I’m not sure.
That said,I must admit it’s very striking to the eye.
I’m following your excellent work with great relish and hope your back issue is on the wane as well,Geoff.😊👍
Steve Piggott says
Hi Geoff ,good to see You back at the bench ,and I hope You’re back problems are easing up for You. Great start to this Phantastic Phantom, and I’m really looking forward to see how You approach the painting and decal stages. With immaculate timing Mine arrived this very morning ,and I was blown away by the quality of this great model. Looking forward to the next instalments, all the best and take care,
Steve.
Geoff Coughlin says
Hi Steve – thanks for that and back is much improved – physio worth all the effort :)
Yes, all the decaling is done now and there’s a weekly update on this one now until it’s all finished. Keep a close eye out for the next update… Geoff C.
Manuel Magrinho says
Great job Geoff!
You nailed it, and the work on the tanks is just beautiful.
Waiting to the unveil :-)
Geoff Coughlin says
Thanks Manuel! Much appreciated. GC
Toby Page says
Hi Geoff,
I recently joined, mainly to see what phantoms are being built. I have a couple of ZM phantom kits and the cockpit detail seems really good. What’s the rationale to using the Eduard PE?
Geoff Coughlin says
Hi Toby – the eduard PE gives you the canopy detail as that’s basic on the kit parts. You also need a seat harness as that’s not included. Apart from that I just added some eduard RBF tags (1:72 scale is more realistic). Apart from that just some scratched detail for all the wiring behind the seats. A fair representation is provided in the kit for behind the RIO but plenty to go in behind the pilot. Cheers, Geoff
Steve Piggott says
Hi Geoff, what a Phantastic Phantom ! One of Your best builds to date ,and huge inspiration to all of Us lucky enough to have
bought one. Great tips through the build as ever, and a really useful guide on applying those Phantastic decals. I’ve been watching this beautiful Phantom on You Tube all week,and the other anniversary F-4’s ,and You’ve captured the look and Spirit
of Her perfectly. I’m looking foward to seeing what You make of the new Tamiya F-4B when it arrives , it will have to go some to be as good as this one ! Many thanks for a cracking start to the new year, All the best, Steve.
Geoff Coughlin says
Hi Steve
Thanks very much for your kind words here – it’s really appreciated. As you say, It’ll be great to get my hands on the new Tamiya F-4B that’s due our I think in June 2021 – can’t wait for that! I’ll prioritise that build as soon as it comes in so everyone won’t have long to see just how good it is. And again Steve, you’re right, it will have to be out of the top drawer to be on a par with this ZM kit – Oh I do love a competition between manufacturers :) GC
Geoff Coughlin says
14.11.22 A small update everyone… Thanks to Dan B, you can now get a paint that pretty much exactly matches the metallic blue you need: Mr Color 76 Metallic Blue :) Happy days, GC (PS: Albion Alloys is a great source for these paints – see Contents page for link to their page in SMN and their website details)
Richard Allen says
Fantastic build and video! just managed to pick up this kit for a decent price, going to stick to plan and build my 1/48 Meng F-4G first but this kit is quite an exciting prospect!
Definitely something to look forward too this winter!
Geoff Coughlin says
Hi Richard,
Thanks very much for that – really did enjoy the build and you will too I’m sure :) Cheers for now, Geoff C.
