On the home leg now
Time really to start bringing everything together and see the full effect of all the hard work.

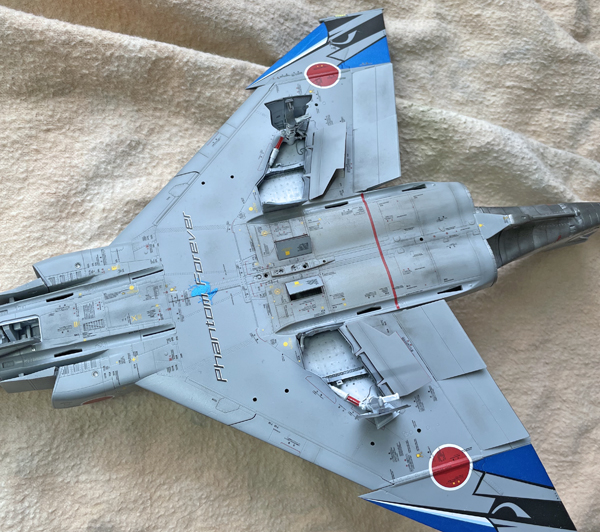

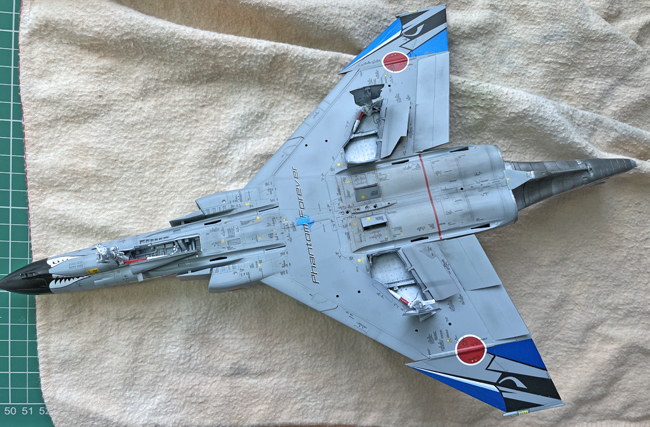

We need to start getting some grime and weathering onto the underside – especially the back end that stains heavily, even on ‘anniversary’ aircraft! If you check out facebook there are some great photos and one in particular of the underside of this machine and I used that for reference.

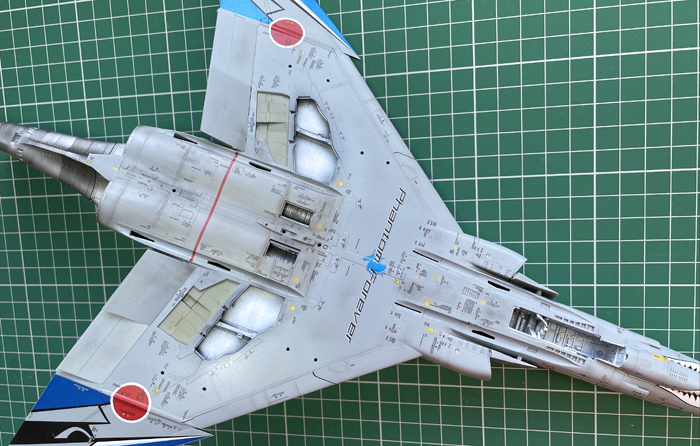

What you see here is done completely with pastel chalks – various browns, greys and yellows. Your Techniques Bank has quite a lot on how I do all this.

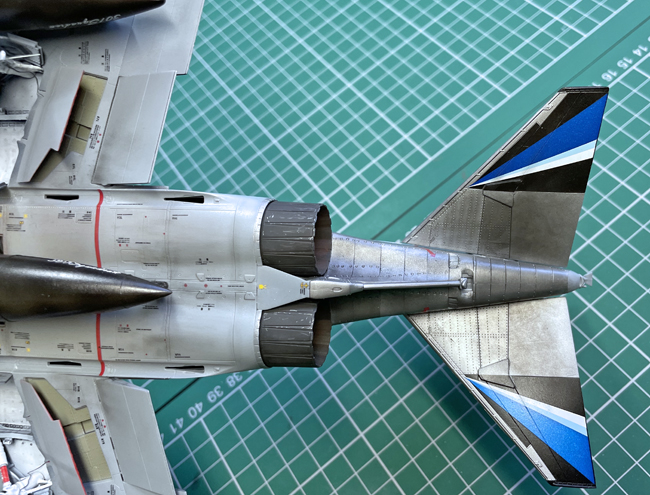

Finishing off that back end…

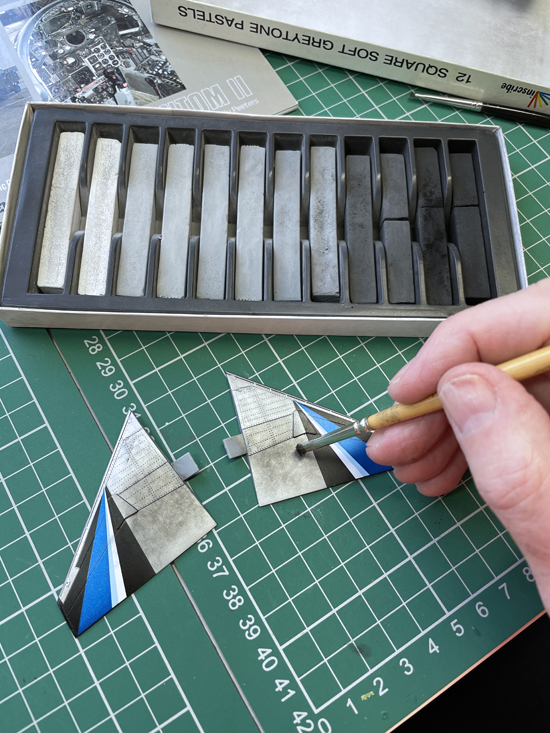

The metallic areas are further weathered using pastels and also some ordinary pencil graphite applied with a cotton bud. Dark grey pastels stippled onto the undersurfaces of the stabilisers and rear fuselage to represent spotty deposits give a convincing look to this area I think.

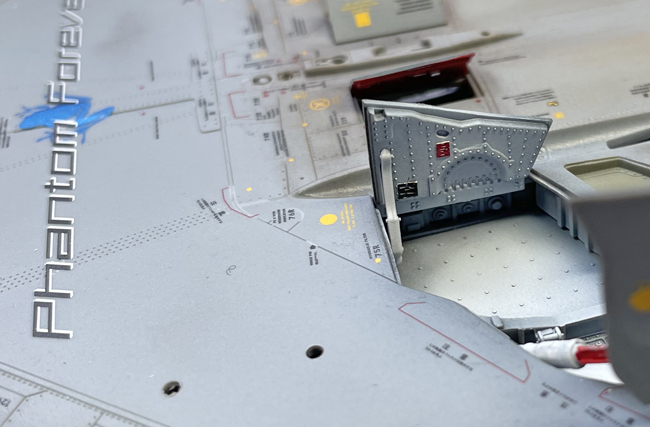

The grey panel lines are slightly enhanced by using a slightly darker grey than the base colour – just carefully ‘painted’ along the panel lines – just take your time and build this effect up gradually.
Undercarriage…

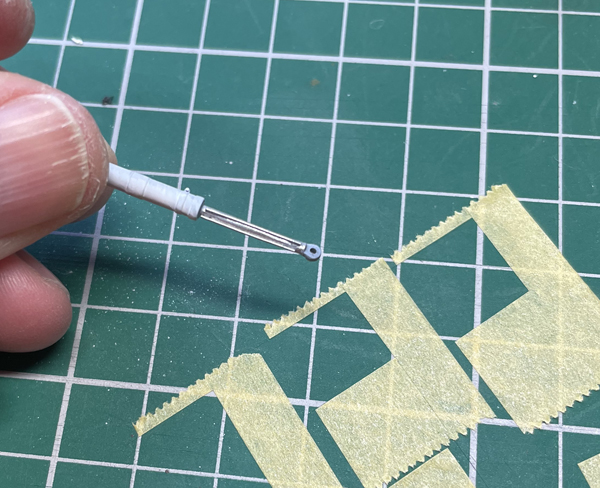

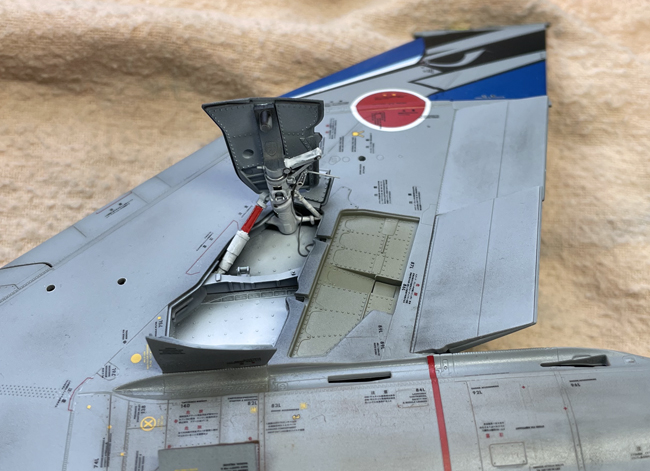

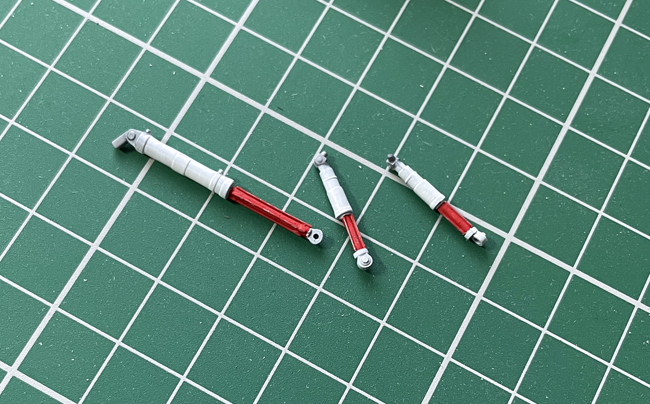

Invariably when the Phantom II is parked, locking jacks are fitted around the retraction units to prevent accidental retraction and I wanted to add these – they are easy to manufacture by simply adding small lengths of fuse wire (3-4) sections for each part. Then just paint them red and add some weathering and also RBF tags for completeness. I think the effect looks good (see pics here and on the final shots).
I also sanded flats on the tyres and added brake lines to the legs. The main omission from all F-4 kits that I’m aware of is the metallic rod that stick up behind each leg at about 45 degrees. I added these from thick wire. Some stencils were also added from coloured metal foil. A little oil wash added some depth to finish. The legs click into place very well so it should be easy to get all the legs at the correct angles.
