A tongue in cheek request from one of my colleagues at the Norwich International Aviation Academy where I am Course Leader and Lecturer for Aviation Engineering courses and Geoff’s impeccable build of his Dan-Air example got this little project underway.

Within the Academy, we have a couple of display cases slowly getting filled up with aircraft that have flown from RAF Horsham St Faiths and latterly Norwich International Airport.

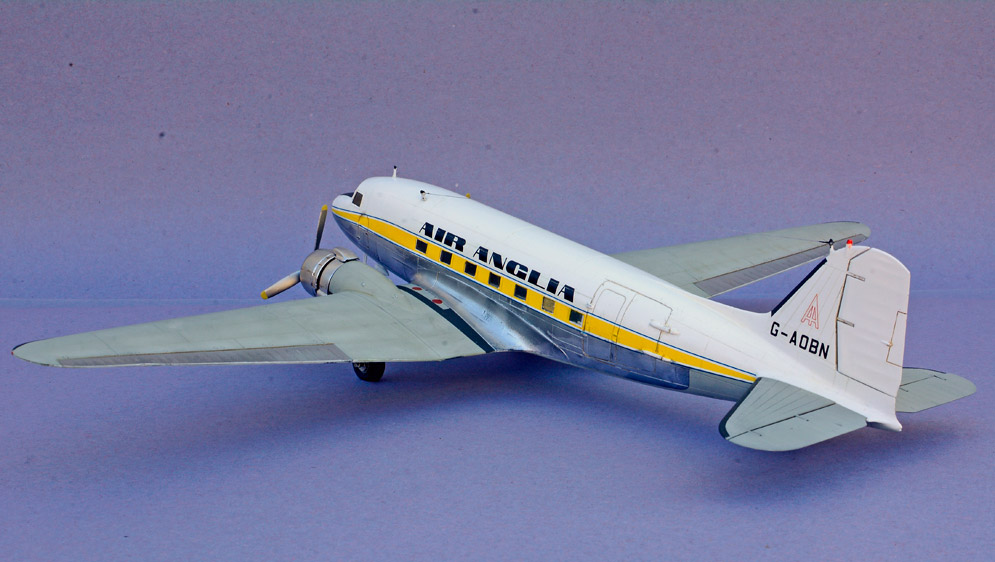

After a recent return to plastic modelling, I had offered to build a Vultee Vengeance TTIV target tug of 695 squadron and a Venom NF3 in 23 Squadron colours, this I duly did, he was impressed with my handiwork, and said colleague, as he grabbed his coat, uttered “How about an Air Anglia Dak?!?”

I noted that 26 Decals (Ray Charles) produces some laser printed decals for the Air Anglia Daks that operated out of Norwich in the 1970’s.

So no excuses left, started doing some more research and made contact with one of the local ex Air Anglia pilots and he had quite a few photos of them in period and remembers flying many hours in G-AOBN from Norwich up to the Shetland Isles, Manchester in the early days of “our” local East Anglian airline.
The four Air Anglia aircraft G-AGJV, G-AMPZ, G-ANTD and G-AOBN had all undergone the Transair mod which entails rudimentary undercarriage door mods, a bit more power and extra windows in the passenger compartment.

I had some reasonable photo references of BN, so I chose that as the prototype. She had been used by British United Airlines a radio calibration aircraft in the 60’s, and has a different aerial arrangement to the other aircraft and only required one additional cabin window being added on the port fuselage side.

The model went together very quickly and I didn’t suffer the door fit issues that Geoff had with his Dan-Air model. I needed to add a tail mounted anti-collision beacon to the fin and this was made from 1 mm plastic rod, the additional streamlined antenna under the nose was fashioned from two pieces of sprue turned to rough shape in a drill chuck. Eduard Brassin resin wheels were used instead of the kit items and I “weighted” the tail wheel also.

Painting was a combination of Tamiya Flat White undercoat on the fuselage, Micromeshed to smooth it off before finishing with Halfords aerosol Appliance white. The flying surfaces and fuselage underside grey were Tamiya Royal Light Grey over black pre-shading. I also lightened some of the grey and highlighted the wing panels centres. The matt was buffed to a semi gloss ready which also aided the underwing registration decal to bed down.

Heeding Geoff’s advice, the Alclad came last as it required a gloss black undercoat, together with careful masking of the yellow/green fuselage cheat line.

So as an Alclad2 virgin, I don’t think it went too badly and I used a combination of polished aluminium with flat aluminium patches to try and give it that “lived-in” look. Alclad2 was used for the prop blades with grey spinners and yellow green tips. The build took about 30-40 hours spread over two weeks of evenings and weekends.

If you want to see the model in the flesh, do come along and visit the Norwich International Aviation Academy, it is open to the general public, we also have a selection of engines from Rolls Royce Heritage on display and also a “live” Boeing 737 inside the building which you can view, oh and a great Café!

Stuart M.

This is the 1:72 Airfix kit with Eduard photo etch, Quickboost resin exhausts and the same company’s P&W engines. Unfortunately, as with all resin radial engines the modeller has to provide the push rods. With two nine cylinder engines that’s only 36!

Panel lines partly filled then ‘riveted’. The U-shaped aerial was moved to behind the astrodome and Gee aerial fitted as per the RAF style. Xtradecal decals to represent the aircraft of 46 Squadron normally based at Oakington in 1948. These aircraft were not polished aluminium but painted silver. I think I used AK Interactive Xtreme White Aluminium and then a matt varnish.

Hope you like her?

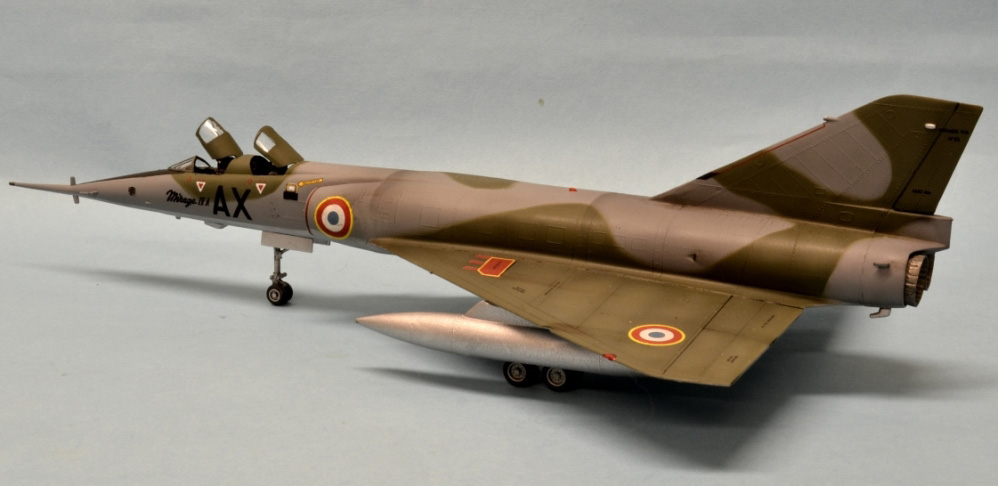

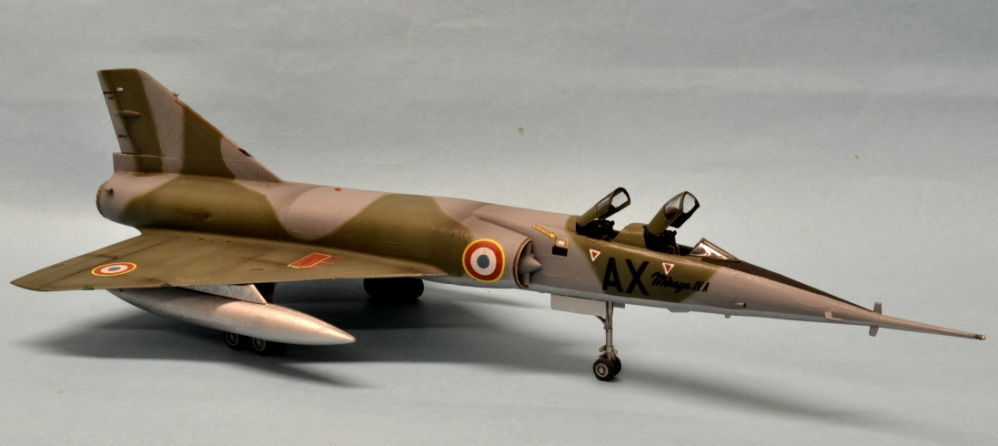

Kit: Heller Mirage IVa | Catalogue number: 80351 | Scale: 1:72
Cost: £5 from a second-hand trader
Materials: injection moulded plastic
Additional materials used:
Paints: Xtracolor Dark Sea Grey, NATO Green, Aluminium, Humbrol Matt Black 33, Revell 9 Anthracite, Revell 2 Matt Varnish, Winsor and Newton oil paints and pastels.
Neomega: ACES II ejection seats

As a more successful contemporary of Britain’s TSR.2, I have always admired the Mirage IV and wanted to depict it in its camouflaged heyday, around the 1980s and 1990s. The aircraft were in service for around 40 years so finishes changed. The kit provides markings for a camouflaged variant circa 1985 and then provides alternative code letters and serials for different individual aircraft.
The model assembled easily over a couple of evenings. Some sanding and filling was required at the wing roots, on the fuselage spine and at the rear underside where the housing for the jet pipes joins the fuselage, but nothing serious. I closed the airbrakes which fitted perfectly. I left off smaller parts such as antennae and wheels and then used a coat of automotive grey primer to highlight any imperfections. I then sprayed the cockpits with Tamiya NATO black, drybrushed with grey and then I picked out switches with acrylic red, yellow and white. The cockpits were masked and the undersides sprayed in Xtracolor Aluminium. The upper surfaces and canopy clear areas were sprayed with Xtracolor Dark Sea Grey and then masked with rolls of Blu-Tac, with the inner areas masked with Tamiya tape, and Xtracolor NATO Green sprayed to give a camouflage effect, with lightened areas sprayed over to give a weathered appearance. I sprayed the Stand-off missile while but could find no details of marking or stencilling, so eventually left it off.
I used mainly the kit decals, which bedded down perfectly without silvering and providing excellent opacity, and Carpena decals for the roundels. Weathering was provided by a quick overspray of Tamiya Smoke, plus a wash of oil paints around the control surfaces. I added ejection seats from a Neomega set (probably ACES II slightly modified) and then added final details such as wheels (Tyres painted with my trusty Revell 9 anthracite), canopies and antennae.
Overall, I very much enjoyed this project and will now search for the Heller 1:48 kit, for which a number of aftermarket detailing sets are available.
Jonathan B.

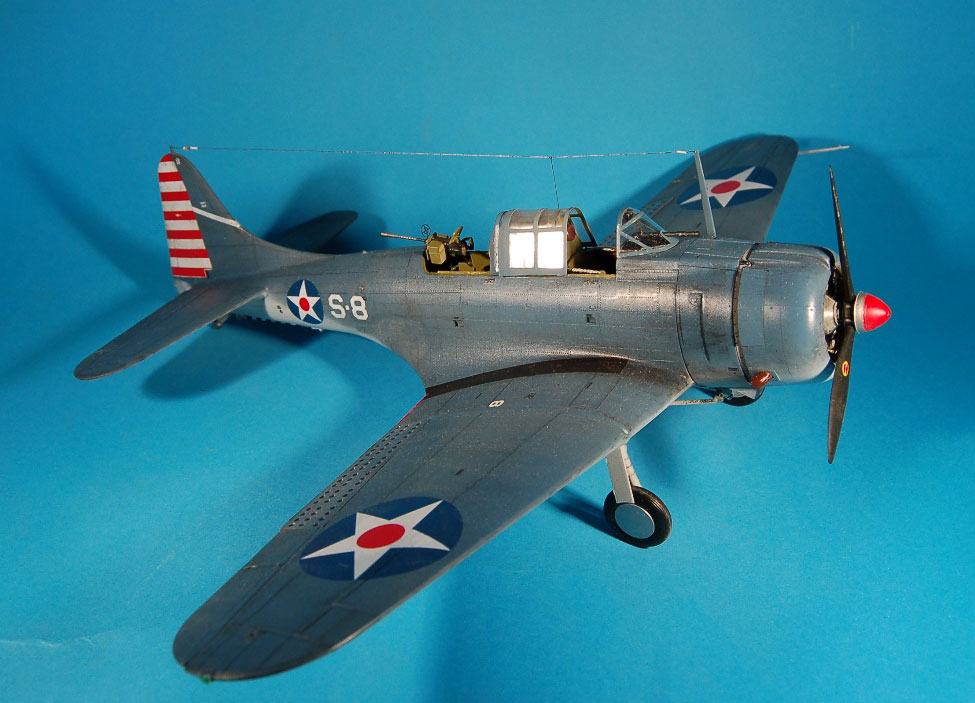

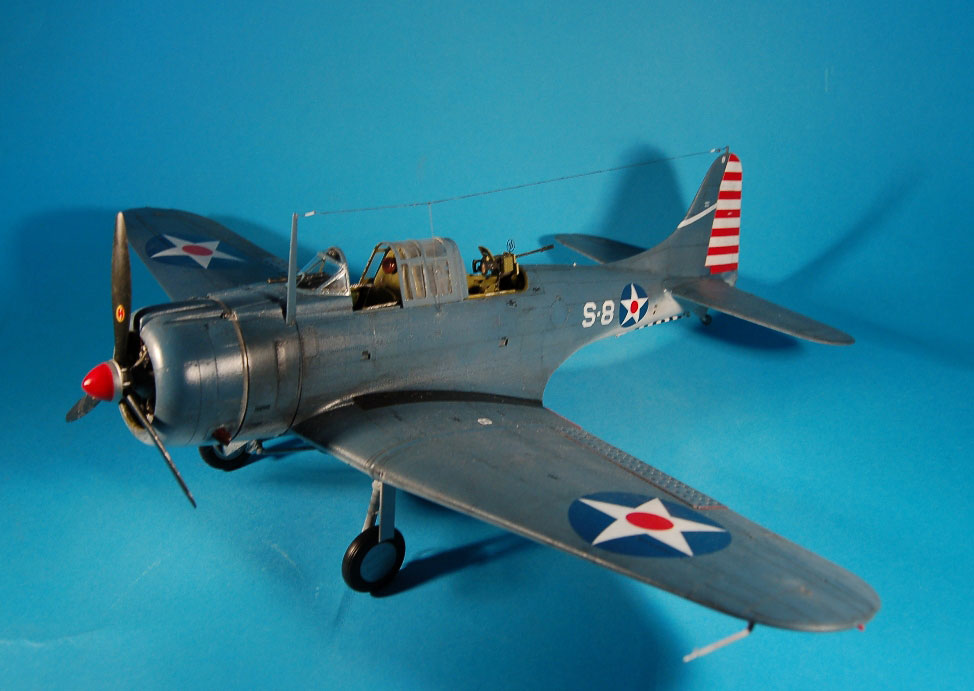

Kit: Trumpeter Dauntless III
Scale: 1:32 | Paint: Gunze, Tamiya | Extras: Yellow Wings Decals
I backdated this kit to make it accurate for the Battle of the Coral Sea
Mish E.

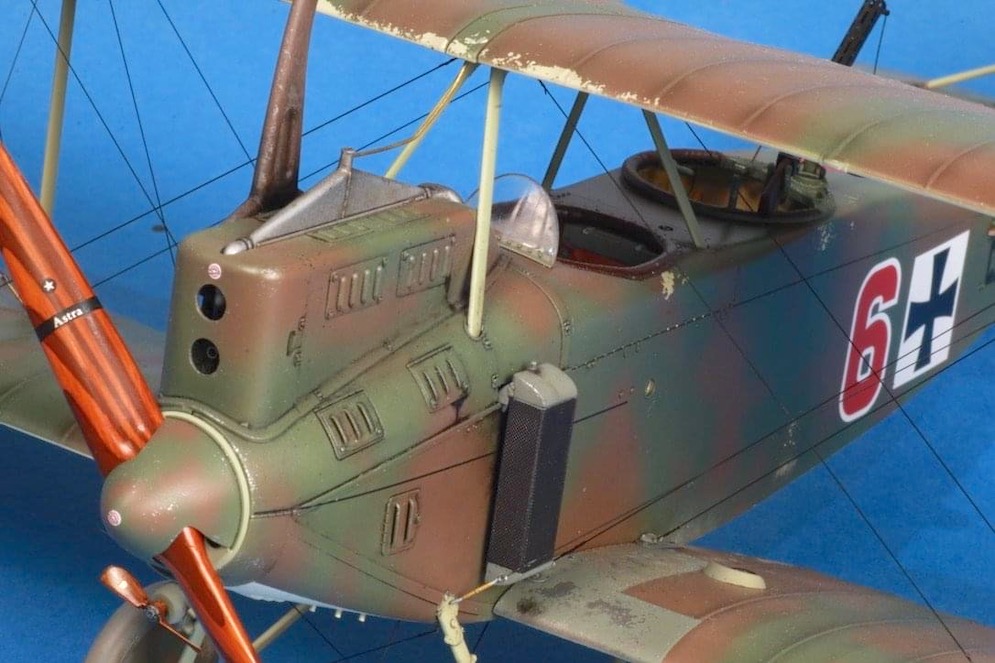

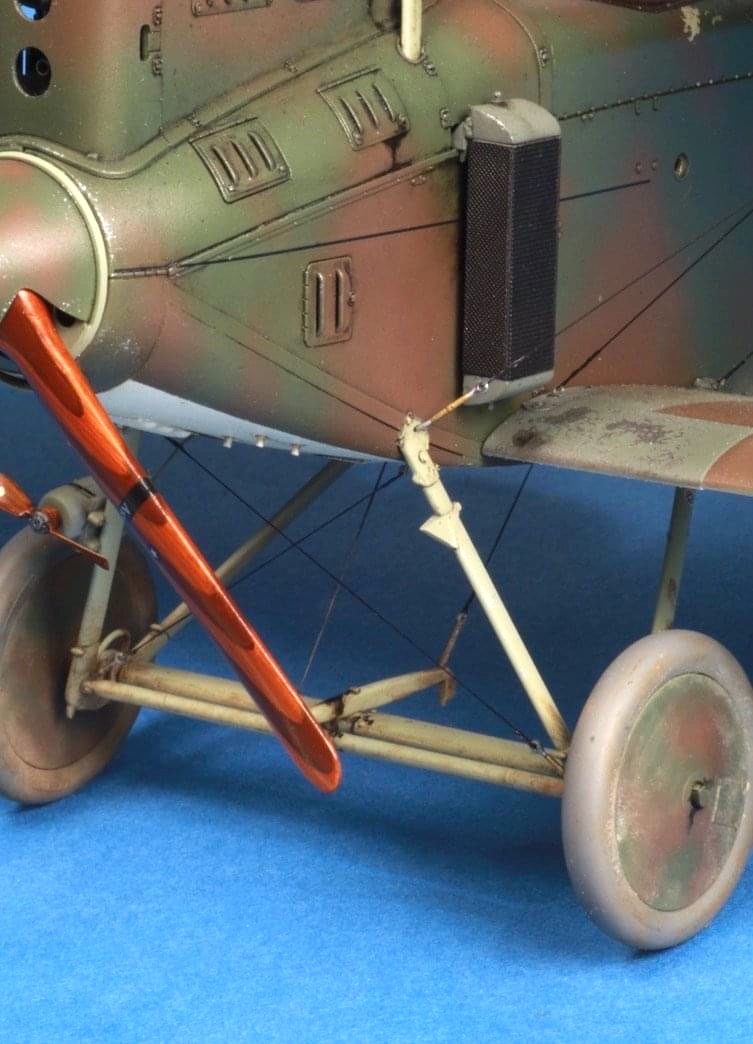

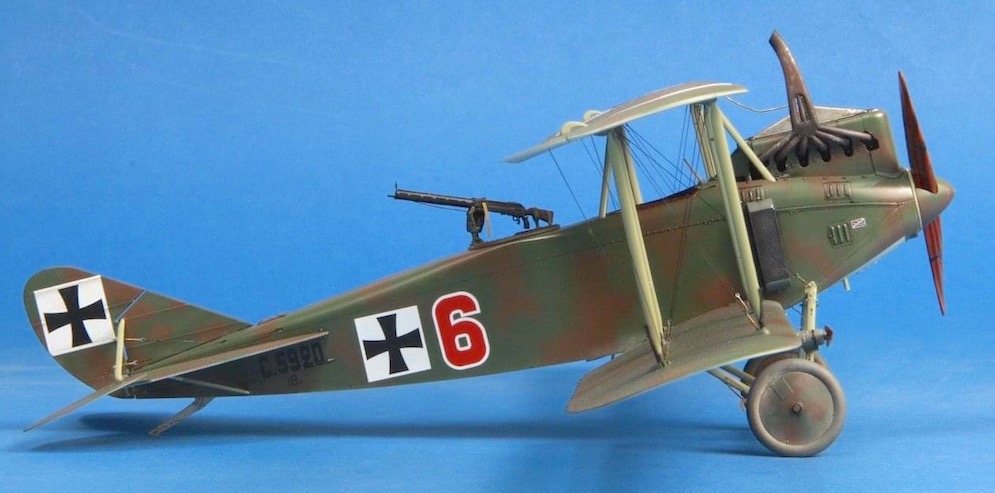

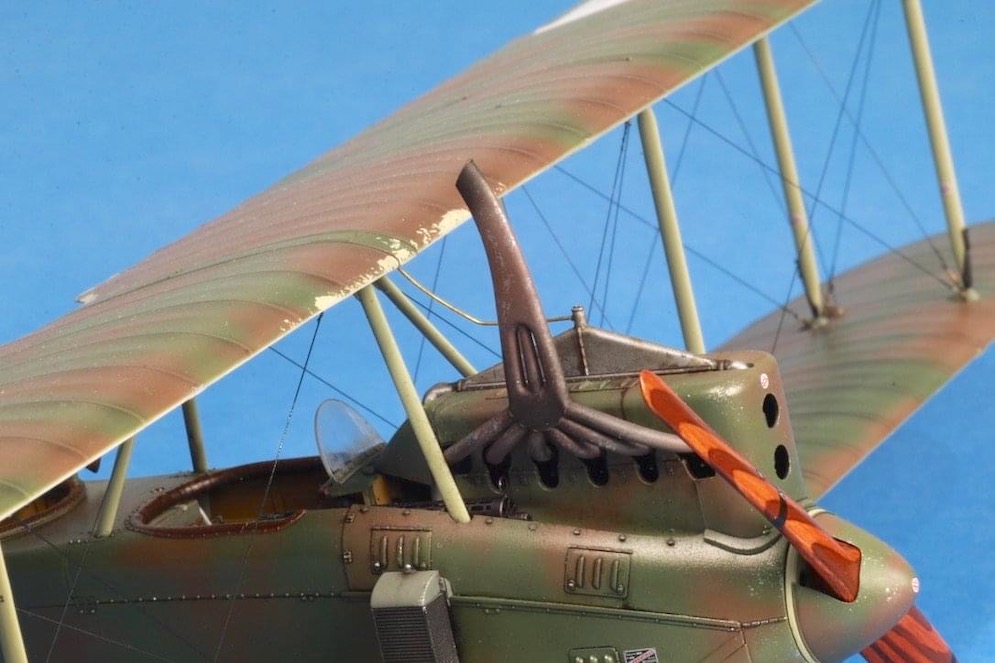

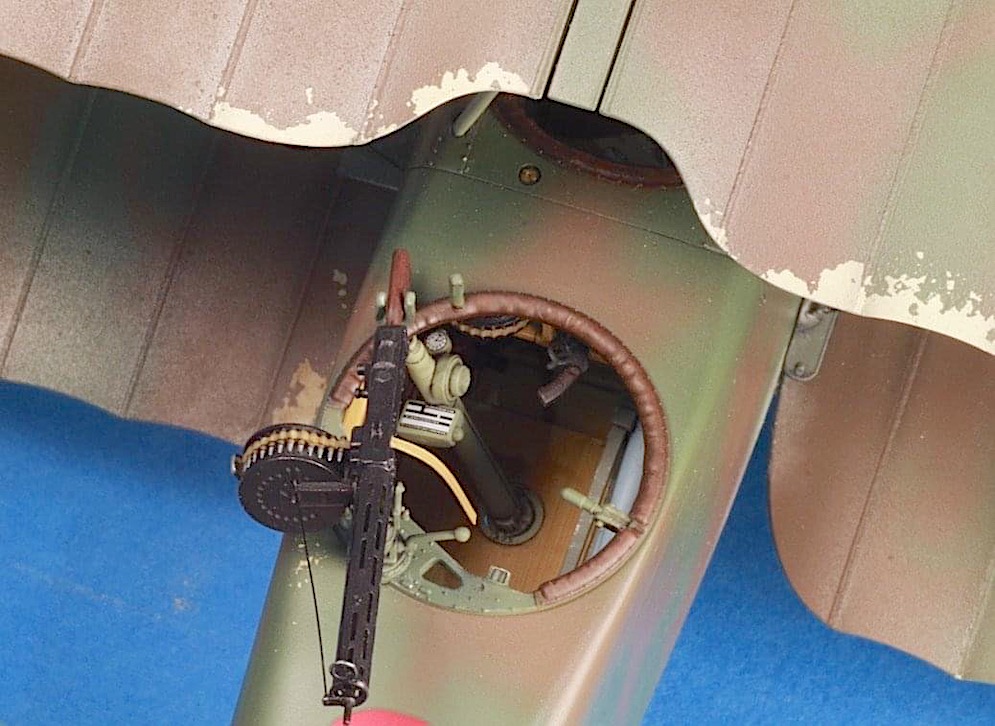

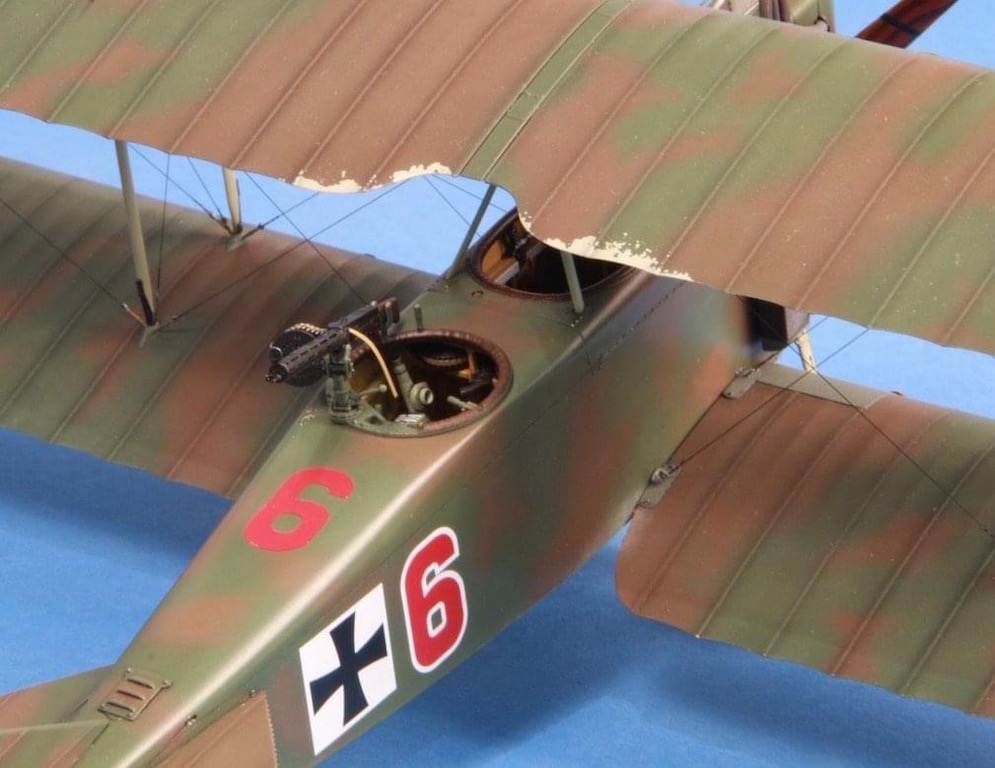

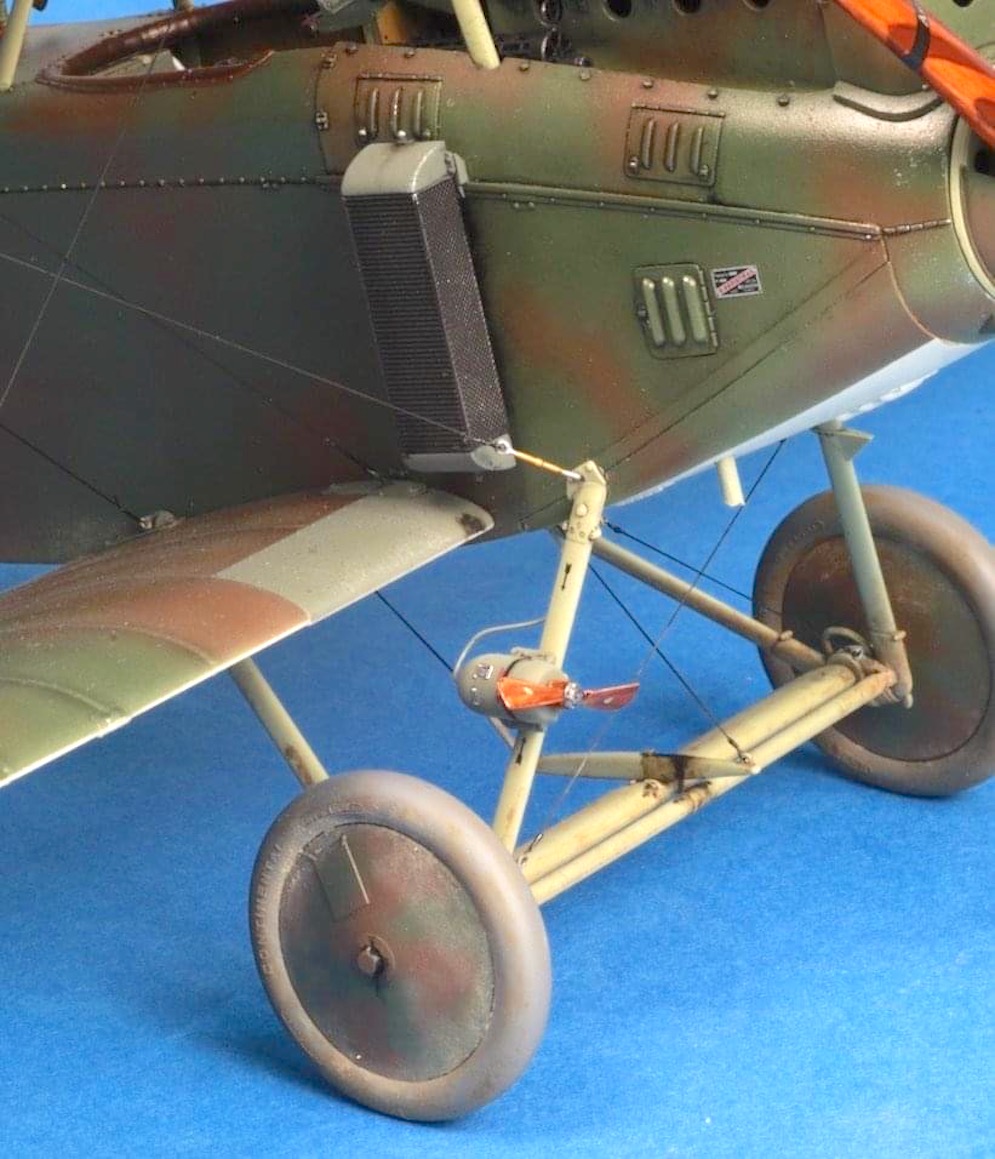

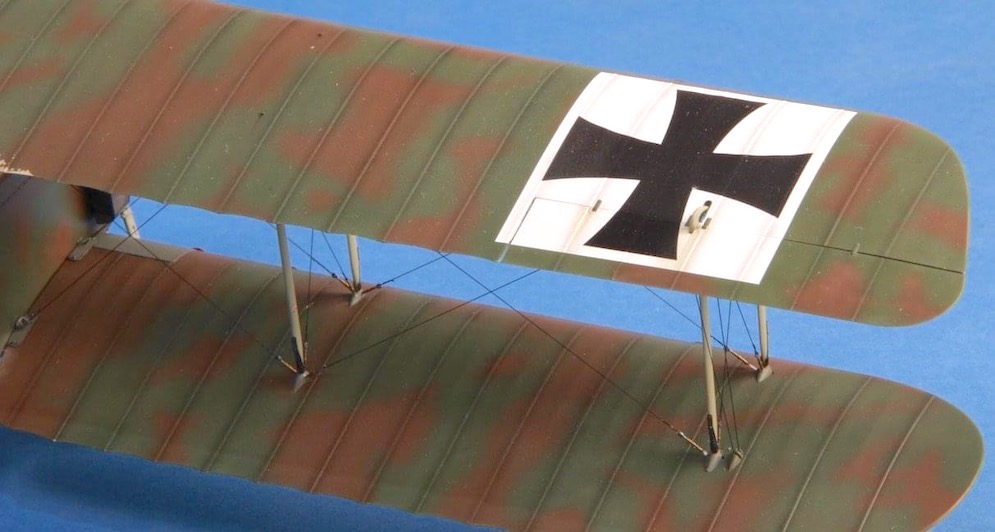

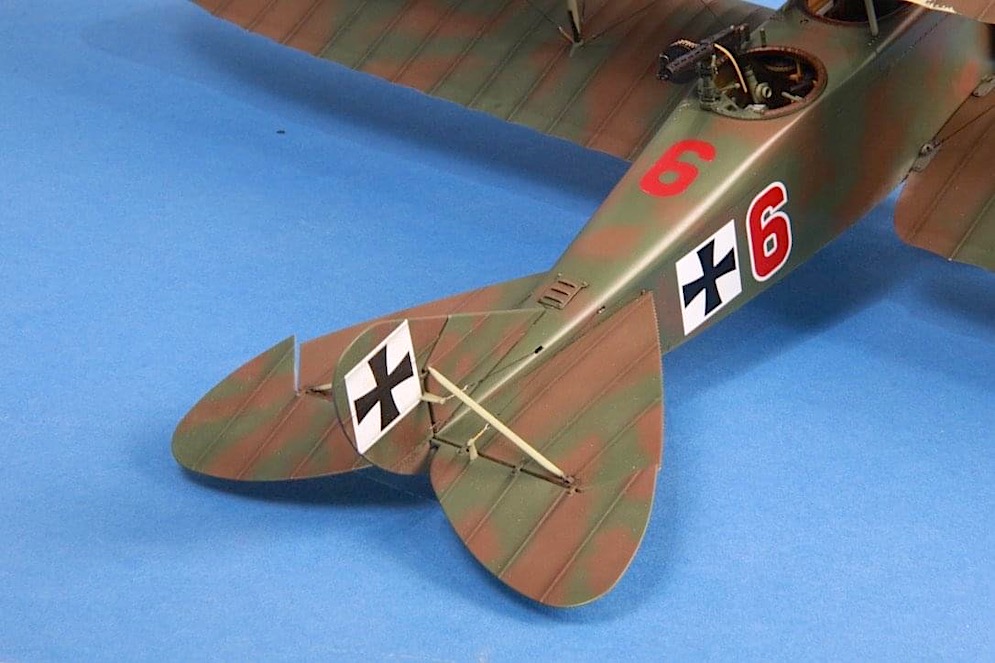

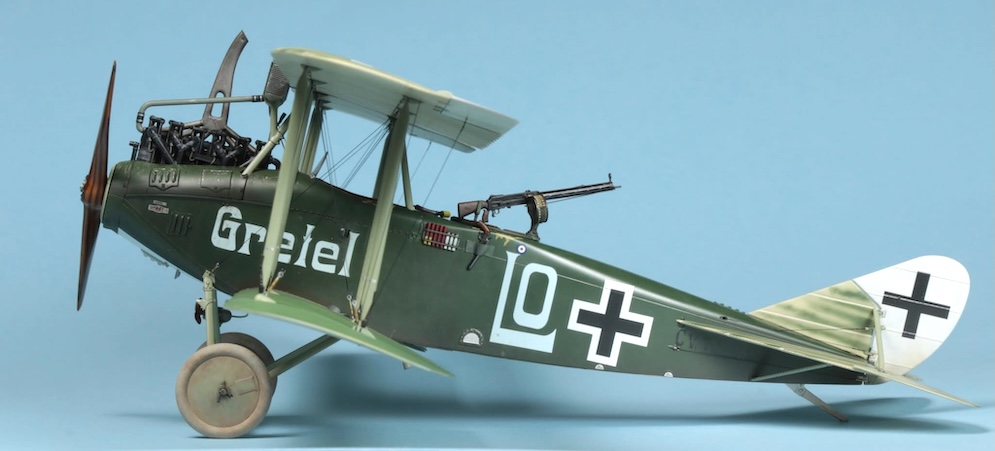

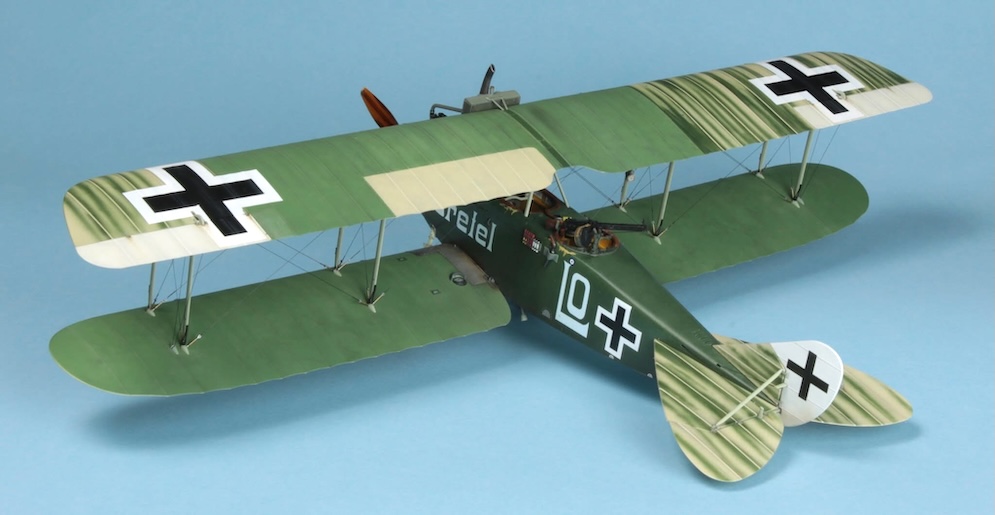

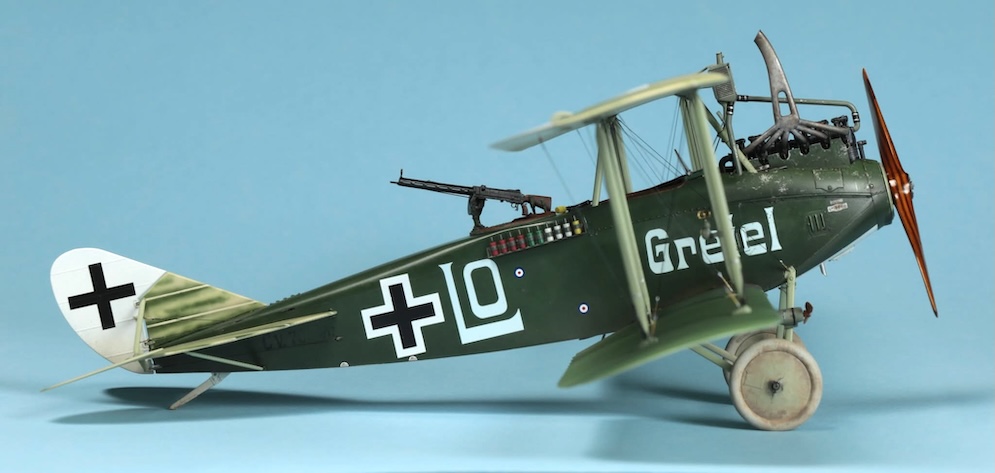

Wingnut Wings kit
1:32 scale
Tamiya paint
Prop: oils over acrylic

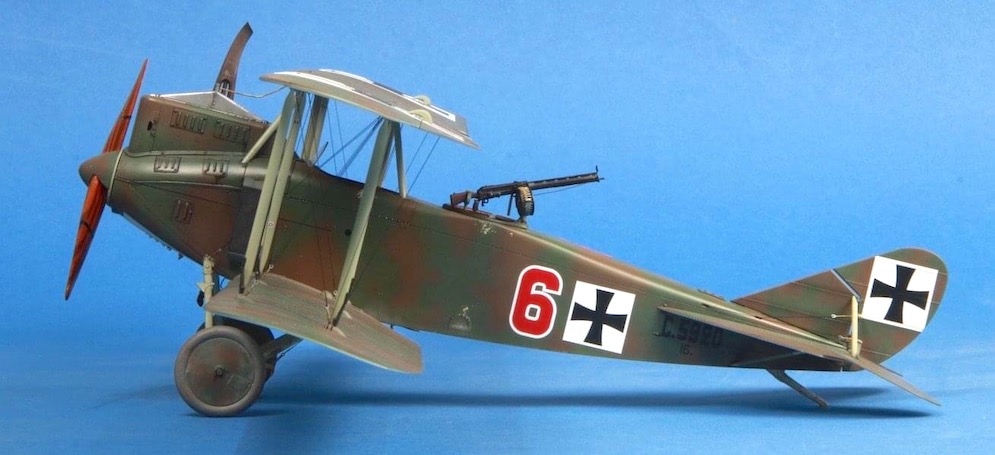

I based the wear on some old photos. There’s a really good late production version with some serious wear and tear on the photos.

David G. L.

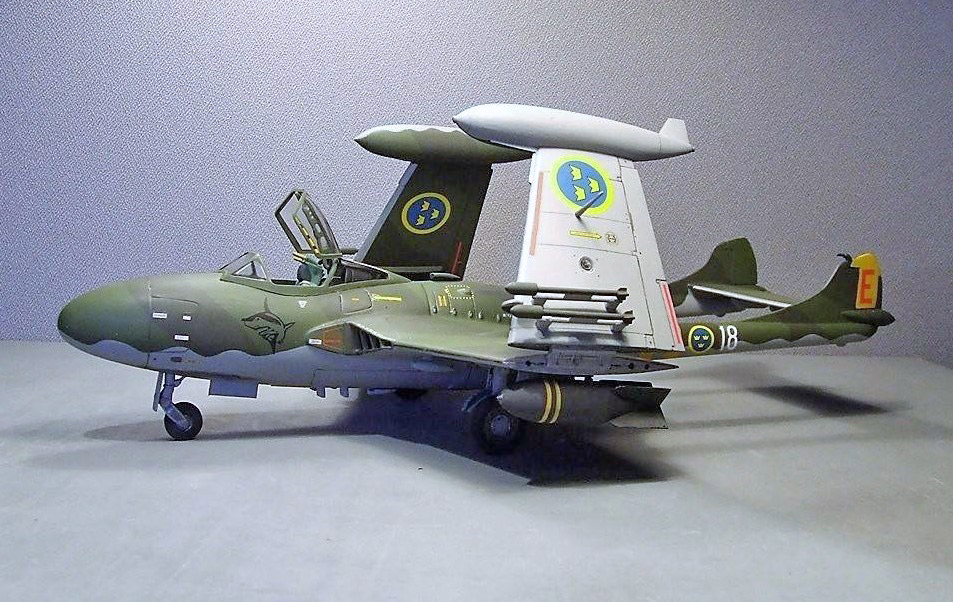

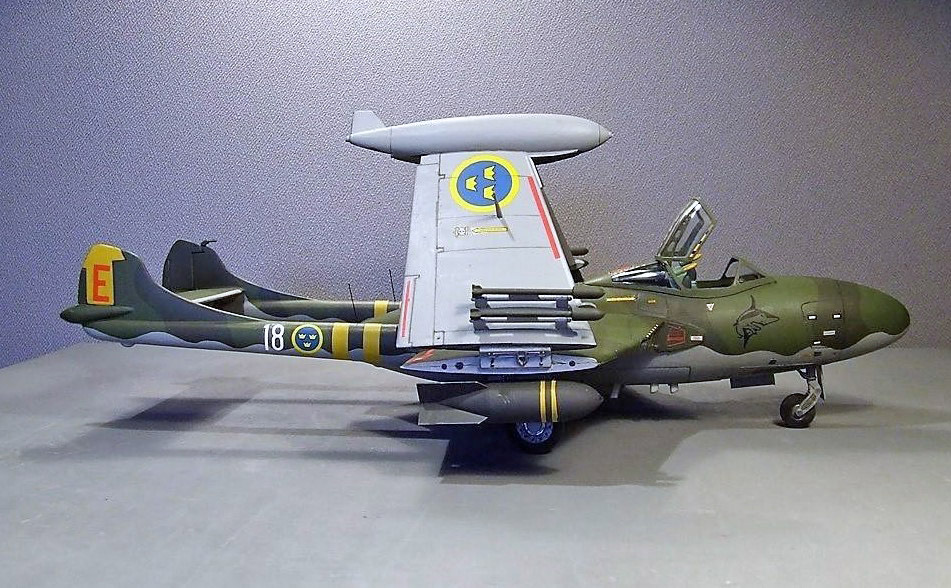

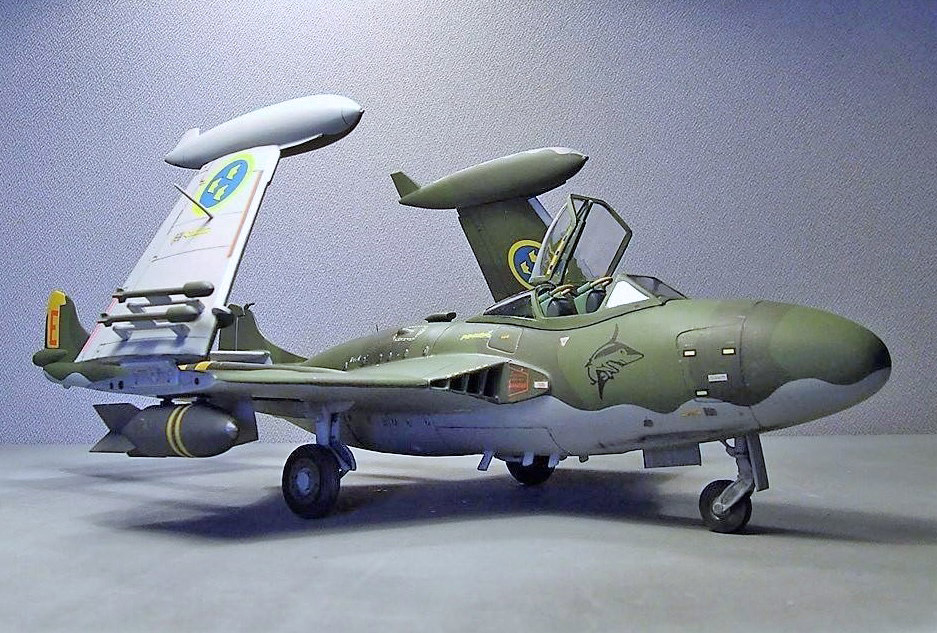

Here’s my 1:32 scale De Havilland Venom with Swedish markings and camo.
Good old – and BIG Matchbox kit.

Raimo L.

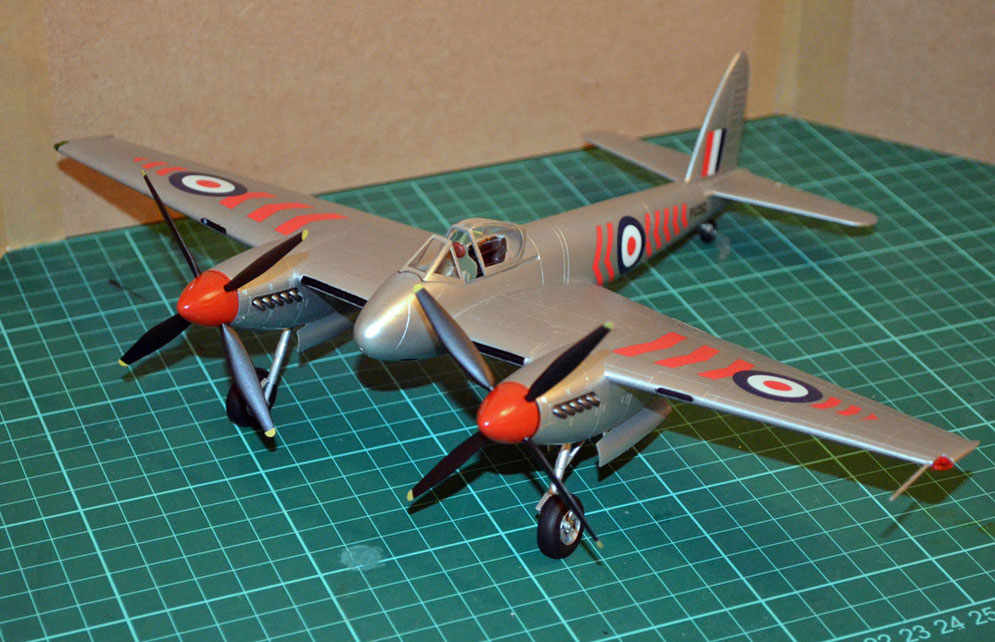

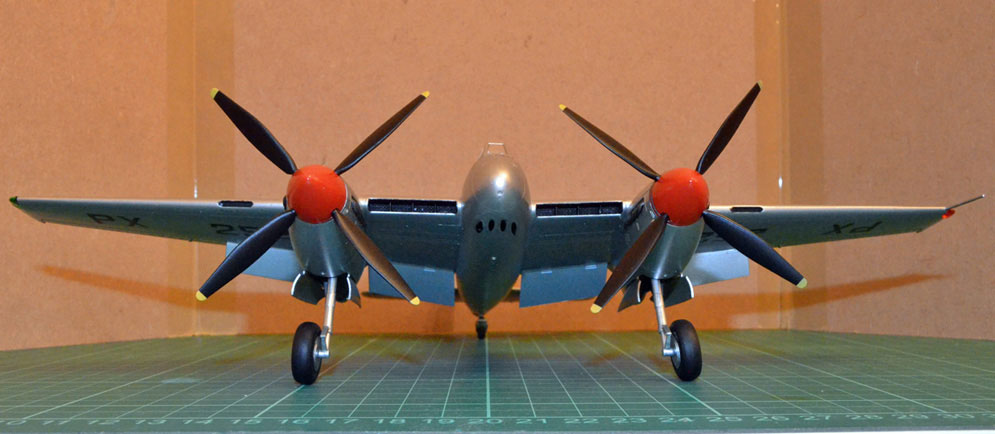

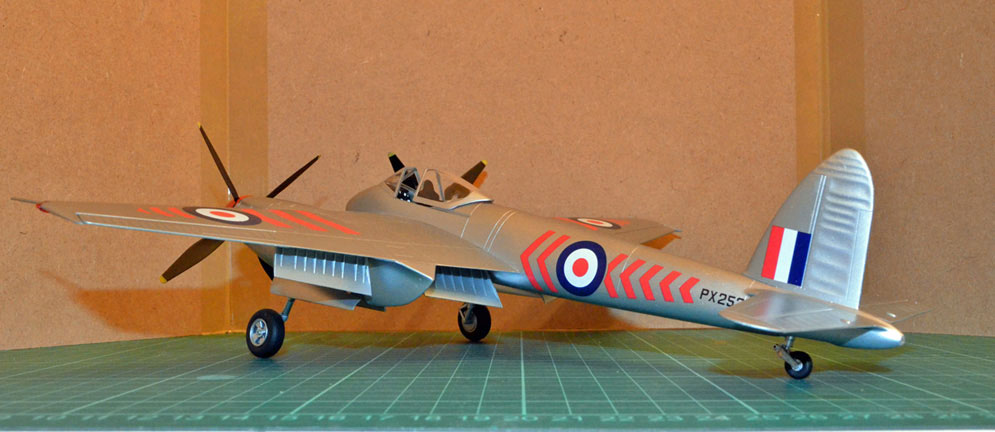

Opinions seem to be divided on Trumpeter kits. Yes they are simple, certainly not the most highly detailed, and some say perhaps not the most accurate (who am I to judge that?) BUT they just keep coming up with the most unusual British subjects … Wyvern, Wellington, Seahawk, Sea Fury, Spiteful, Seafang, Attacker, Vampire, Whirlwind and now the Hornet. What next? Well, the box contains some of the parts for a Sea Hornet so that much is clear anyway.

As I have come to expect from Trumpeter, the parts count is quite low and the instructions very clear. But the quality of the moulding and the fit of the parts is up there with Tamiya to my mind. Absolutely minimal clean-up of joints is required and it virtually fell together!

In keeping with the speed of the build, I decided for once to forgo any priming and went straight for the silver finish using Revell Aqua Colours. The decals were a surprise … they looked quite thick and glossy on the paper, but that was deceptive. I lost the instrument panel decal altogether, completely folded in on itself. Never mind though, as the instrument panel is moulded in a way that lent itself quite well to hand painting. So, forewarned by the time I got to the main decals, I found them amongst the best I have ever used as far as “disappearing into the paintwork” is concerned.

I’ve got another of these stashed away (a shame there’s little choice of colour schemes for Hornets, as far as I’m aware), and I’ll certainly be buying a Sea Hornet (or two) when it appears!

Dave G.

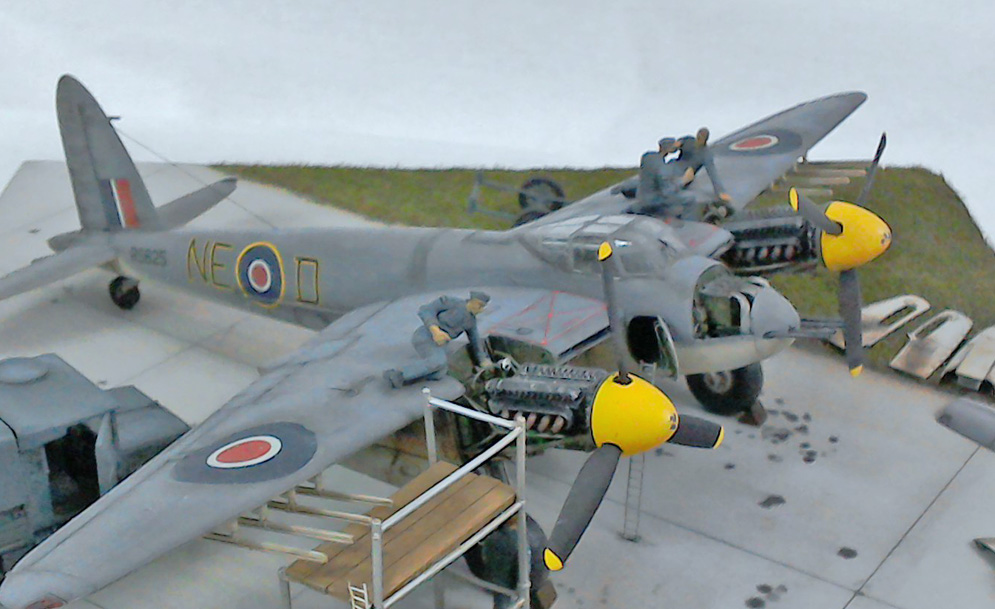

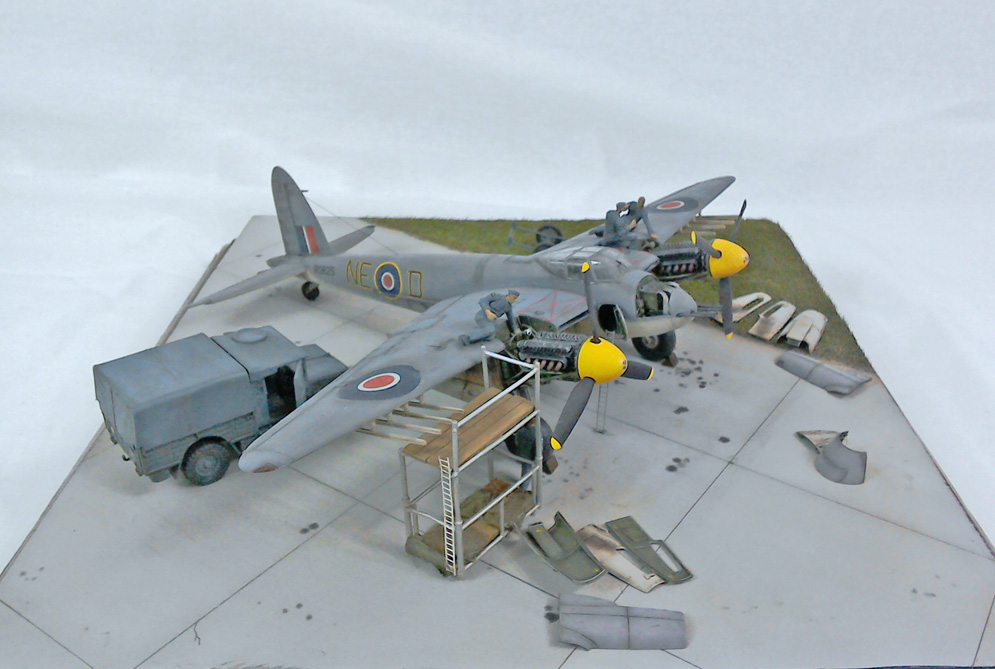

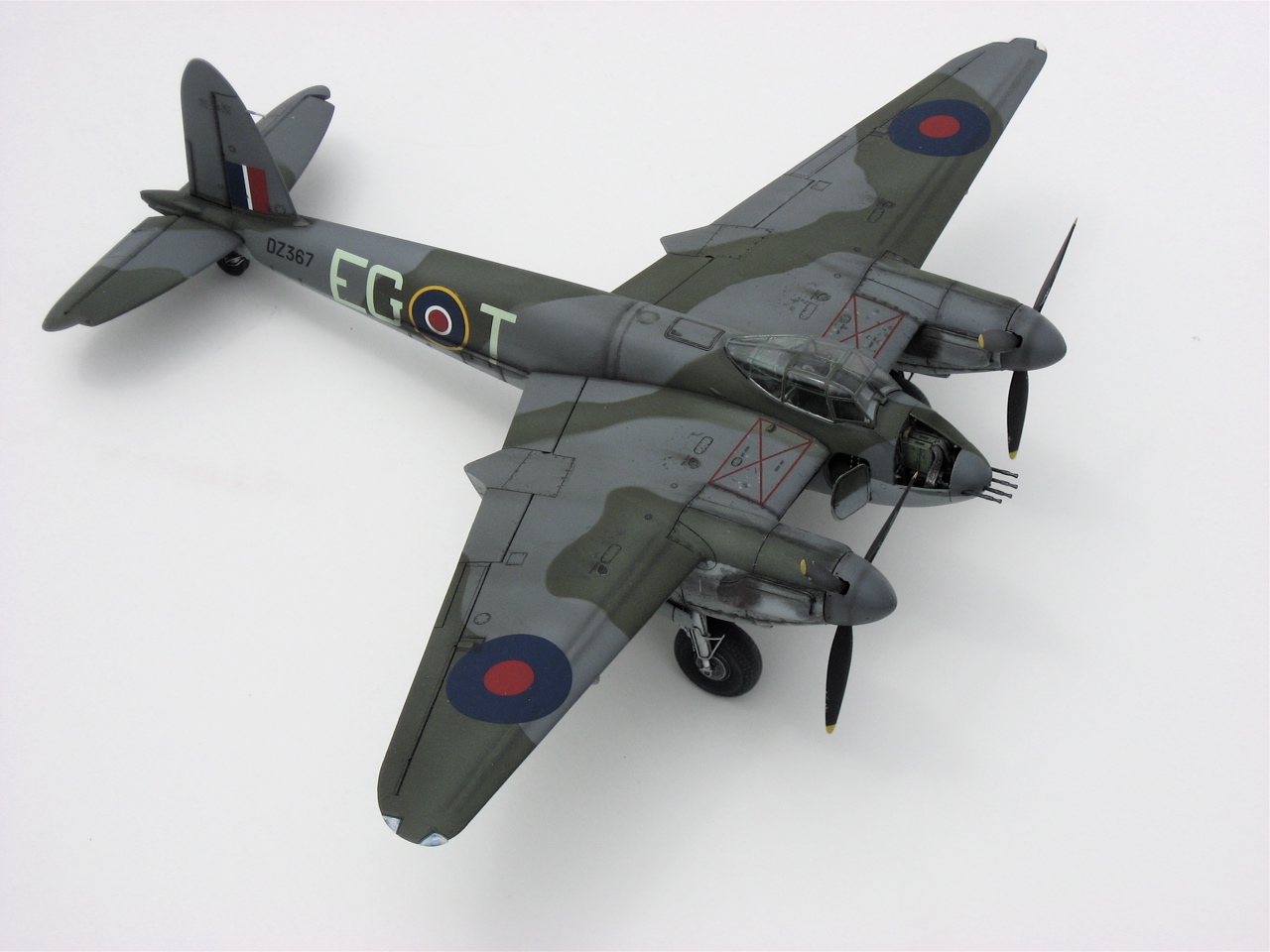

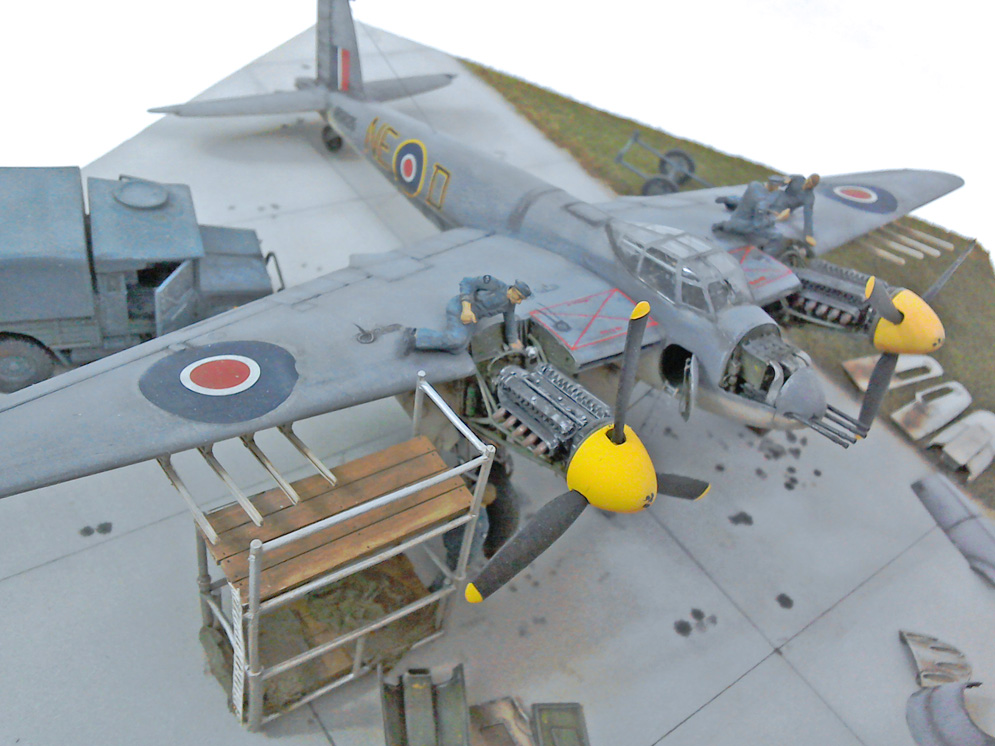

This is the Tamiya 1:72nd scale Mosquito FB MkVI updated using the Aires detailing set, it replaces the cockpit, nose gun bay, bomb & cannon bay’s and two complete engines and replacement engine covers.

The Tamiya kit on its own is a great number with lots of crisp surface details and fine engraved panel lines. I’ve finished it in markings of one of the squadrons attached to the “Bannf Wing” that carried out anti-shipping raids along the Norwegian coast.

The work platform, and other bits came from Airfix ground equipment set, the figures from CMK.

The whole base is just under 12inches square.

Ian R.

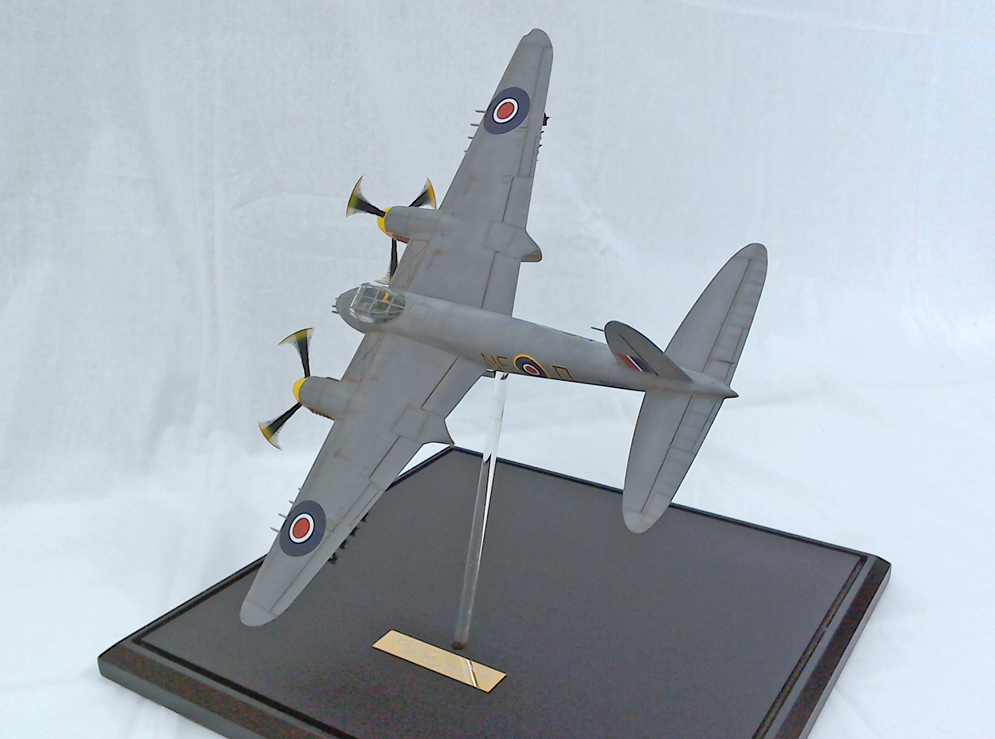

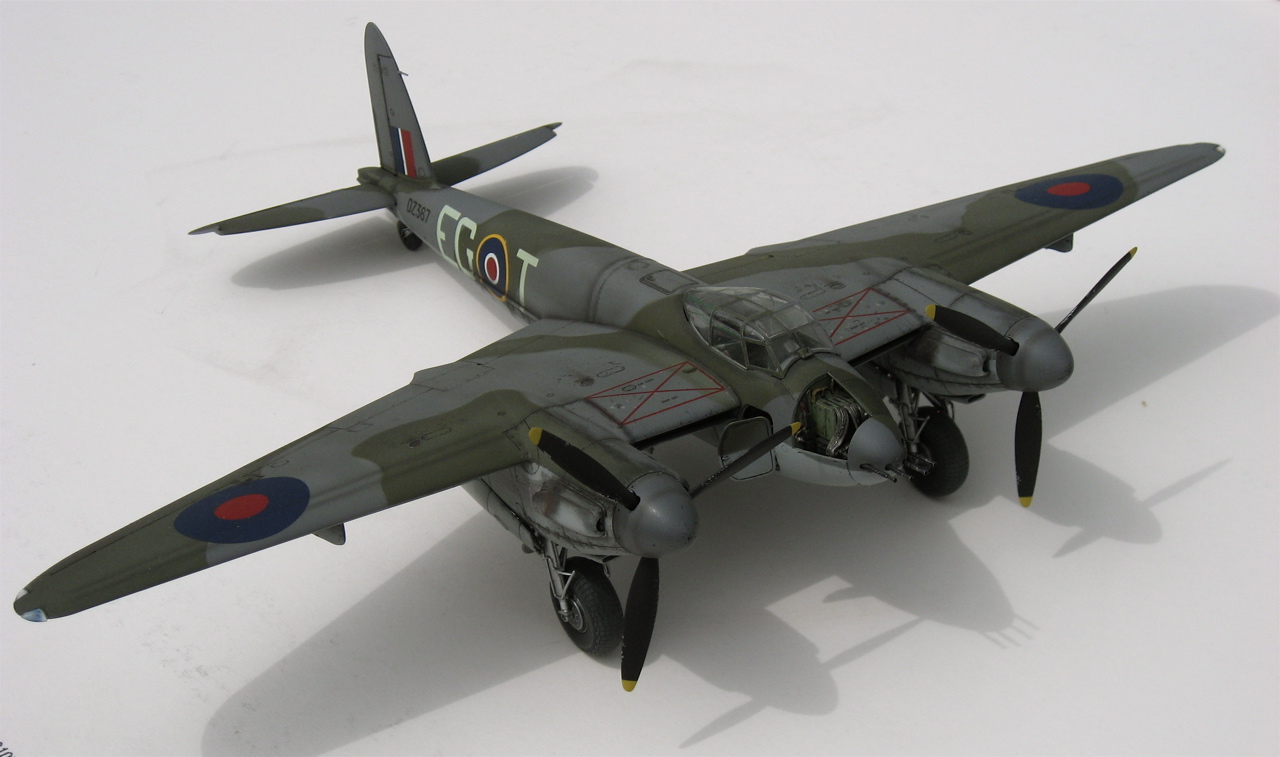

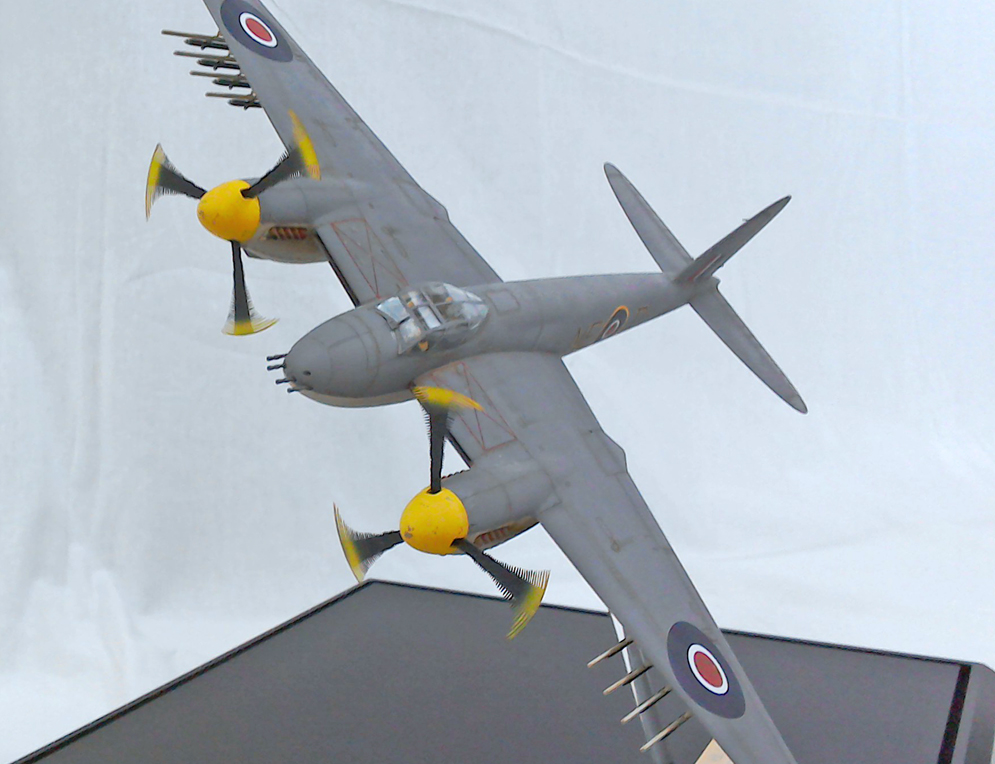

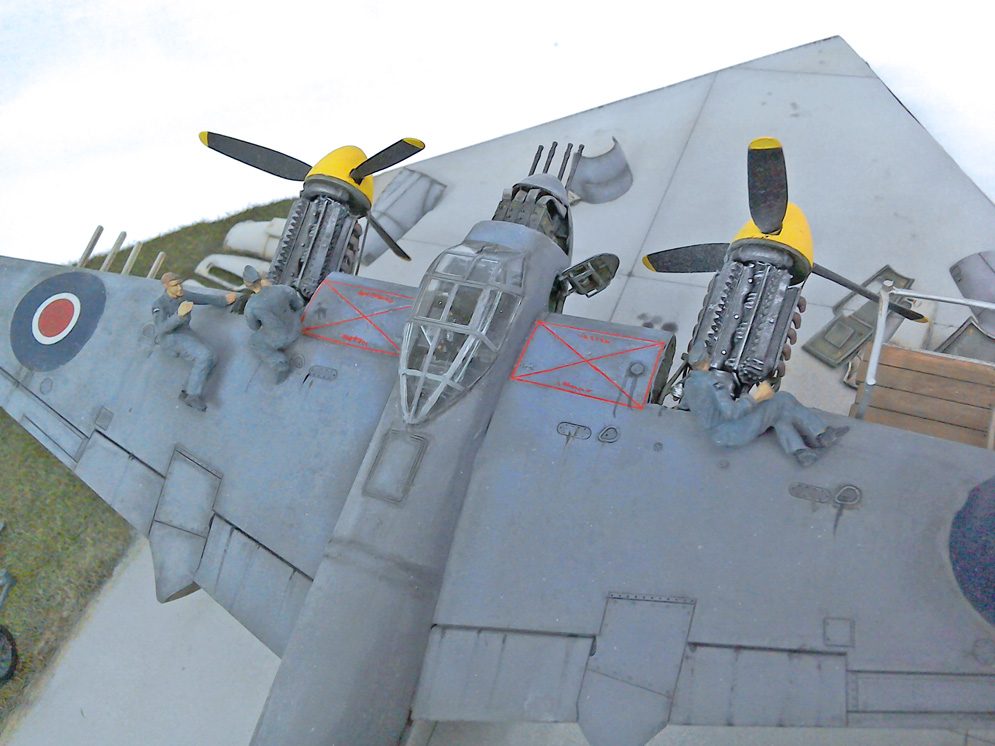

This project is an experiment in using prop blur products on a Tamiya 1:48th scale Mosquito FB MkVI In Coastal Command colours.

Best regards, Ian R.

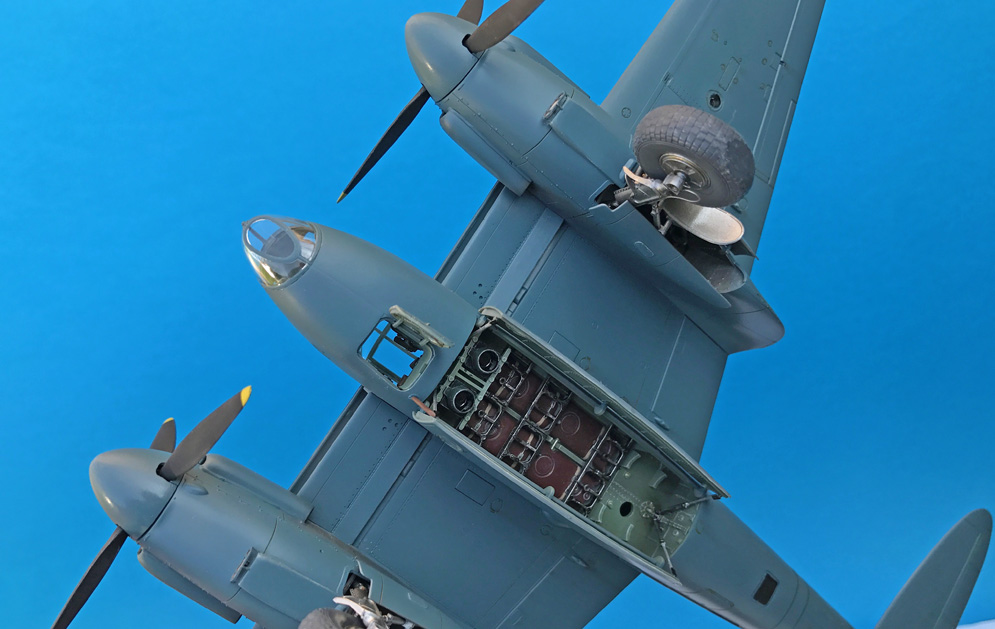

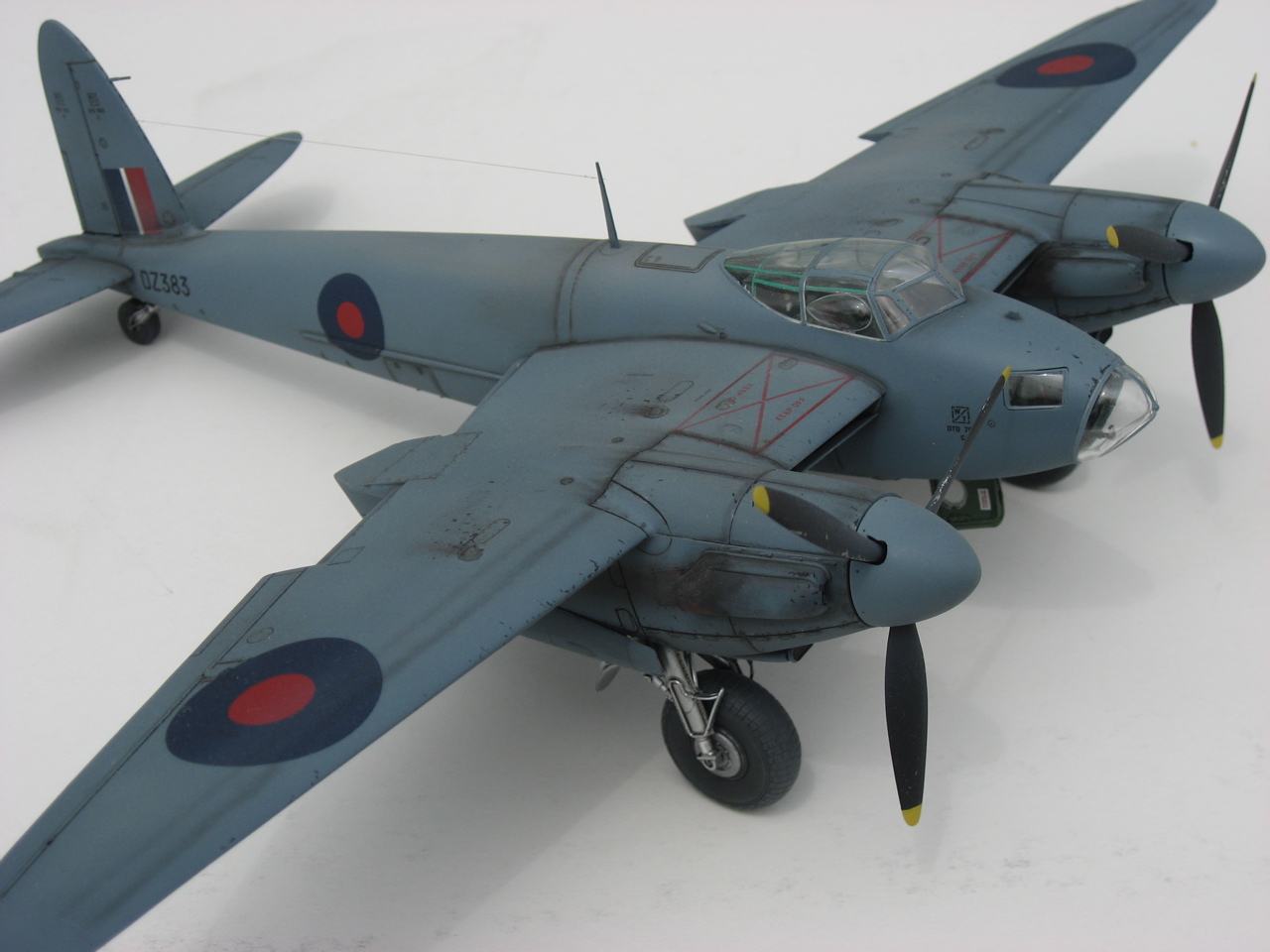

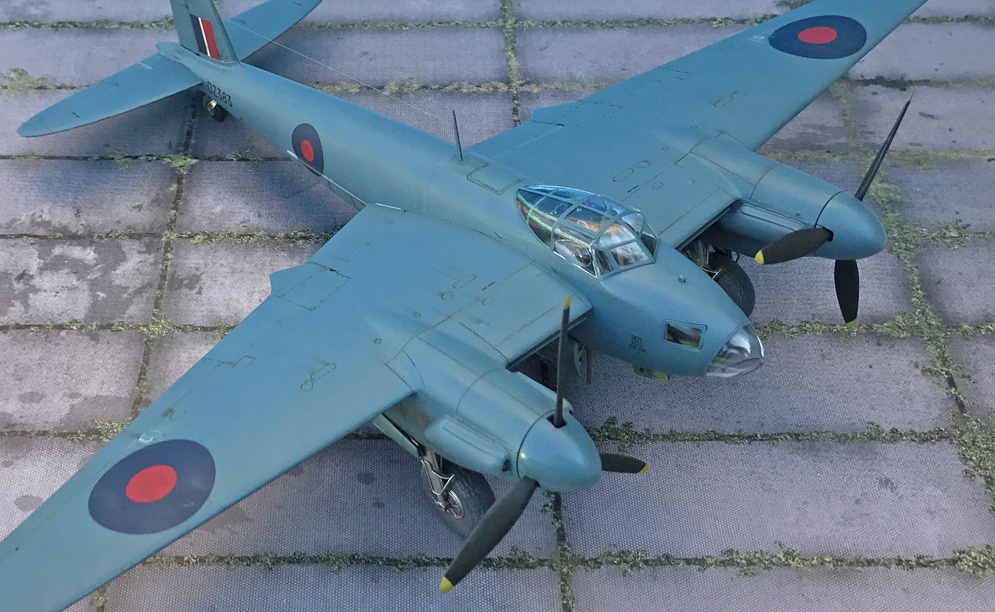

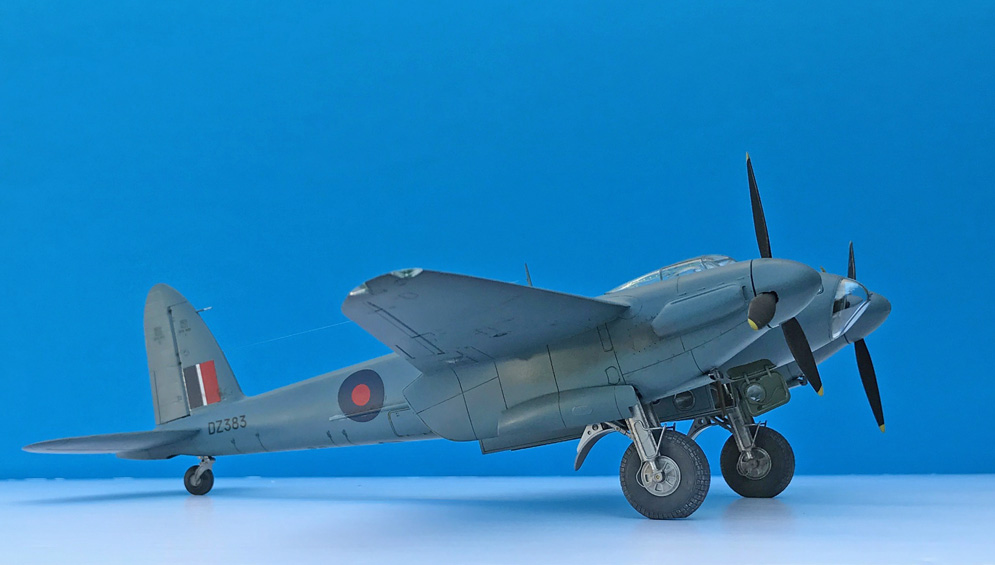

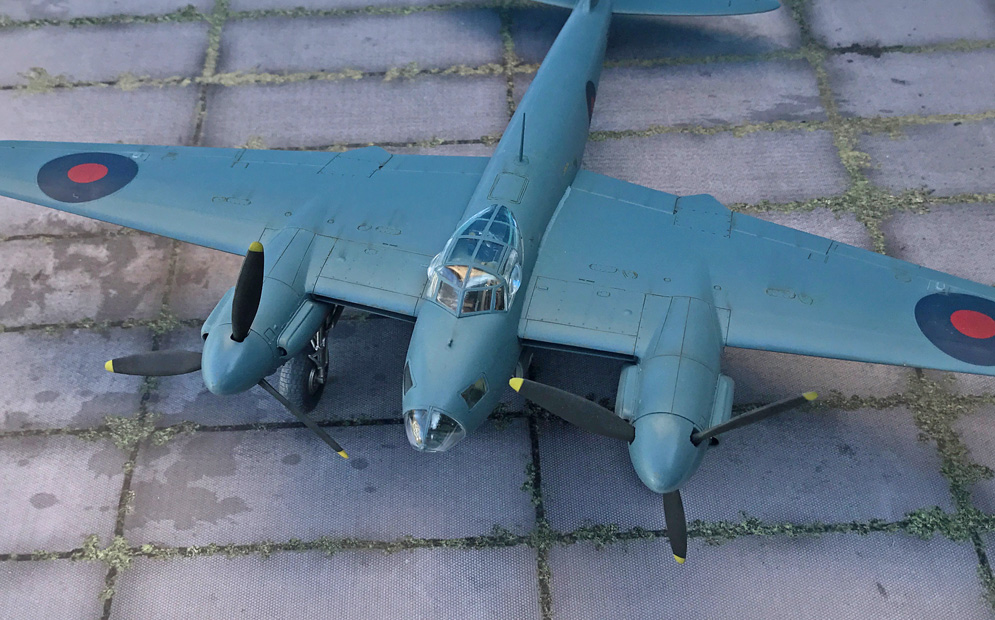

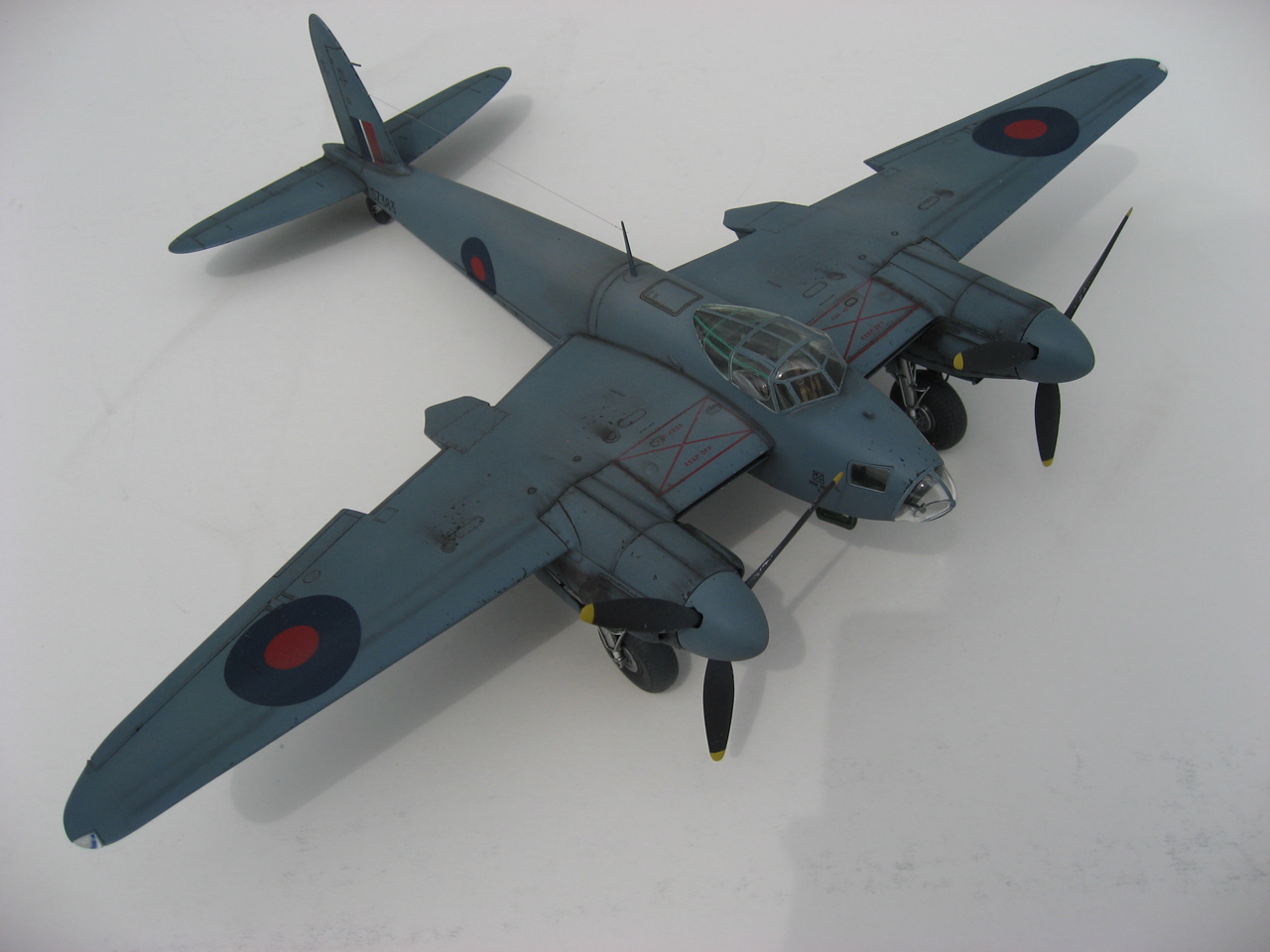

Here’s one I did a while back and it’s the de Havilland Mosquito PR.Mk.IV from the 1:48 scale Tamiya kit. That is a beautiful kit, extremely well engineered much like it’s big broth from the same stable.

I chose this PR scheme, mainly to create a slightly ‘different’ Mosquito model.

I’m pretty sure at the time I used Xtracolor gloss enamel paint for the main PRU Blue scheme. Some fine details added like the hydraulic lines on the undercarriage units and small cockpit adds.

Geoff C.

Both these aircraft were made about 3 years ago. I think I split an Aires set between the two of them. I am sure I used Xtracolor for the paints. The dropped flaps, I just can’t remember where they came from. As you can see little shows on the finished products so I concentrated on the painting and weathering.”

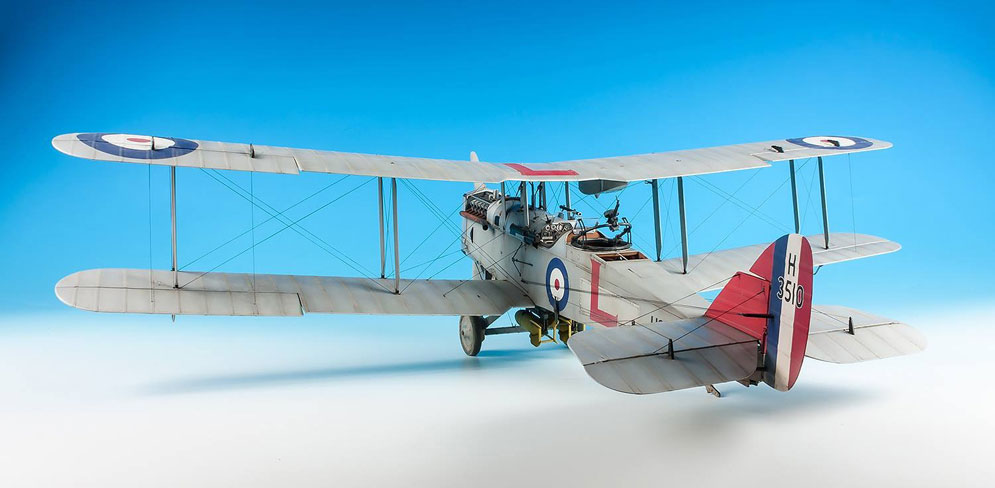

How about this beautiful model by Zdenko of the DH.9a in 1:32 from the Wingnut Wings kit – simply stunning work at every level. Geoff C.

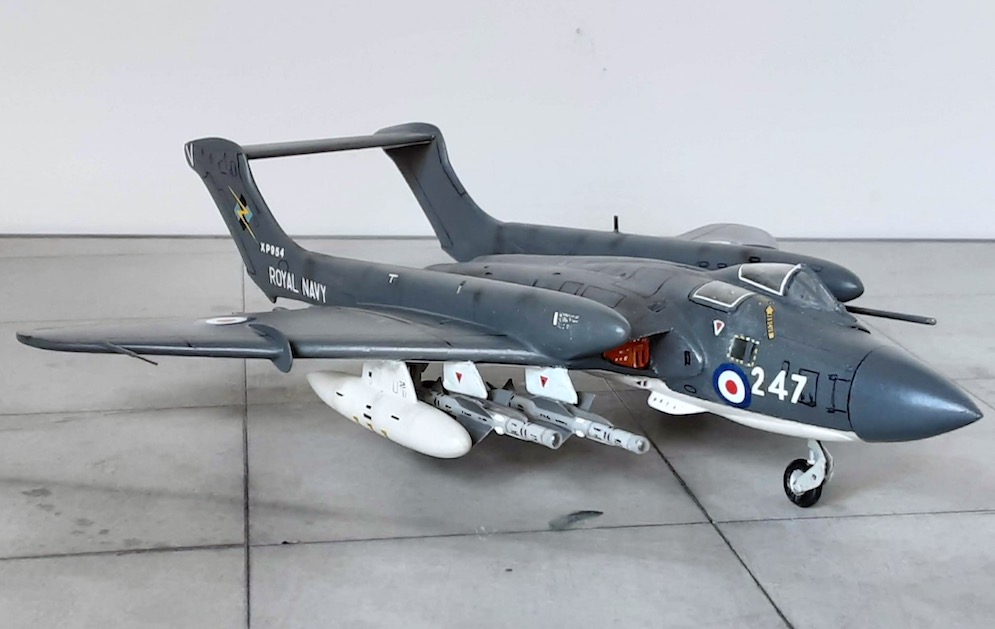

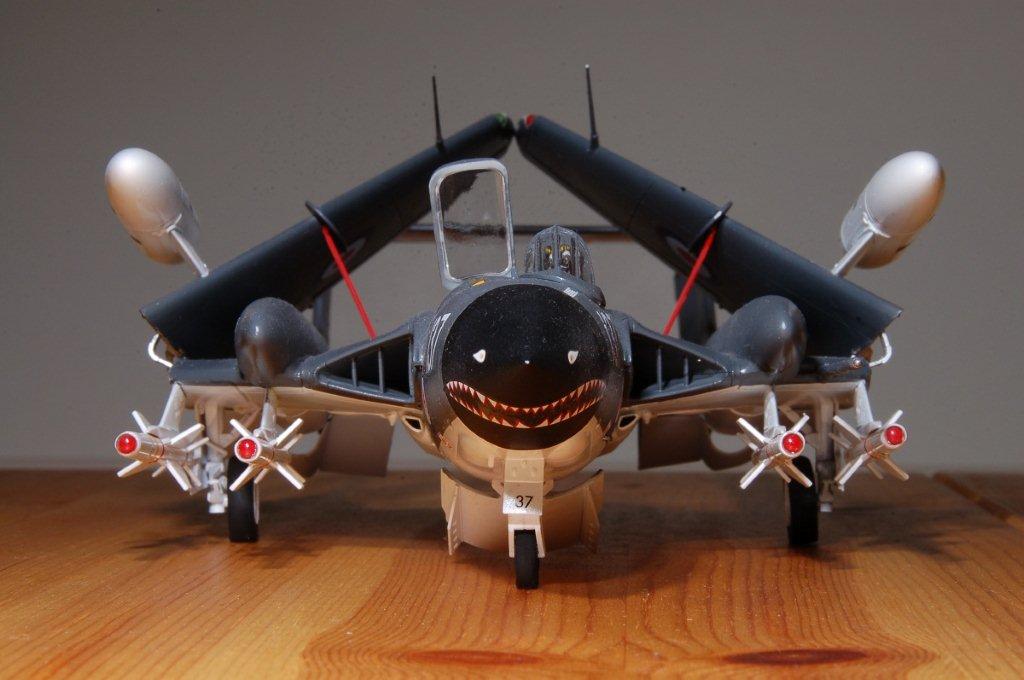

This is my scratchbuilt Sea Vixen FAW.2 in 1:72 scale. Hope you like it!

Censu C.

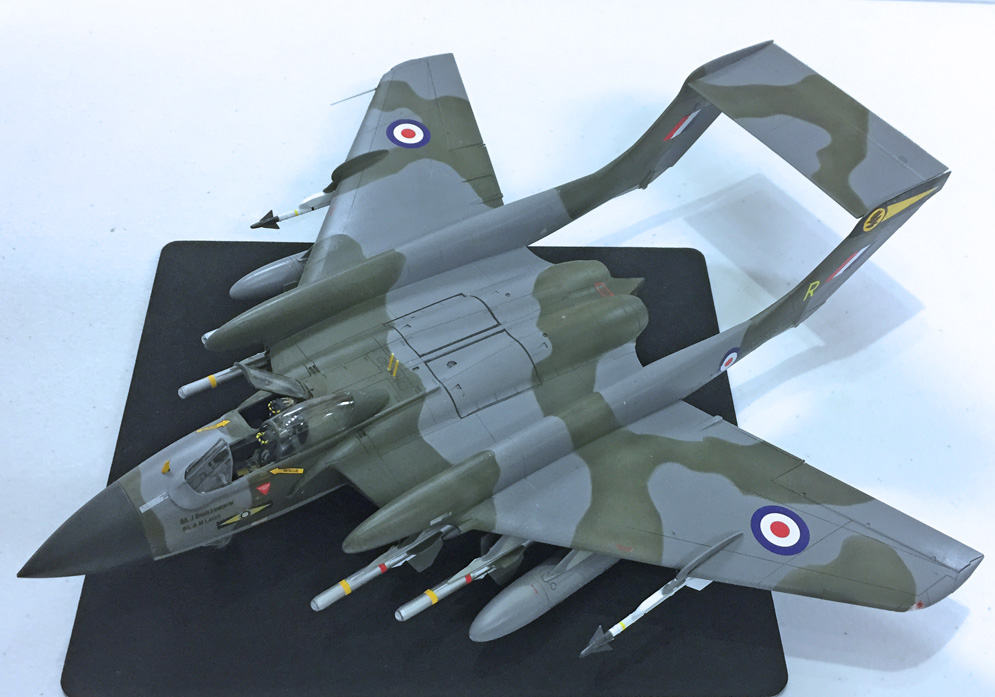

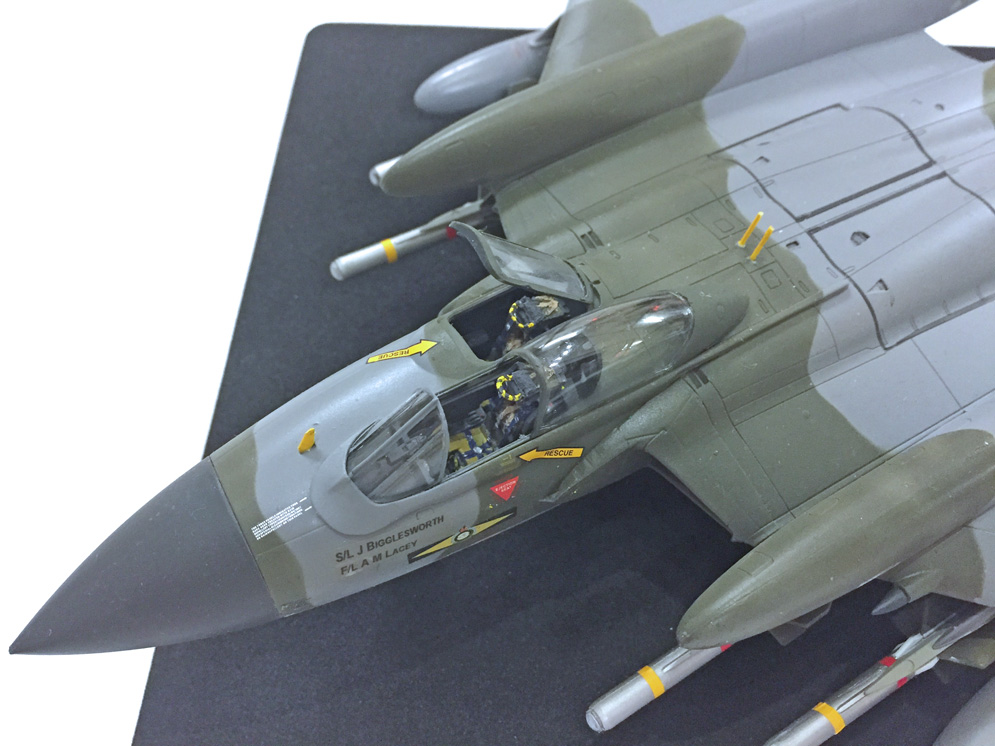

Now doesn’t this one just look right? Just love it Ian.

Ian tell the story of this project on the card he thoughtfully provided when displaying his model at a recent model show and I’ve included that at the end of the gallery of photos that go with this entry.

The Airfoil 1:48 scale kit is excellent and when well made and finished in a ‘different’ scheme like this one, it’s just a perfect scale modelling subject.

Great job Ian, well done!

Hi

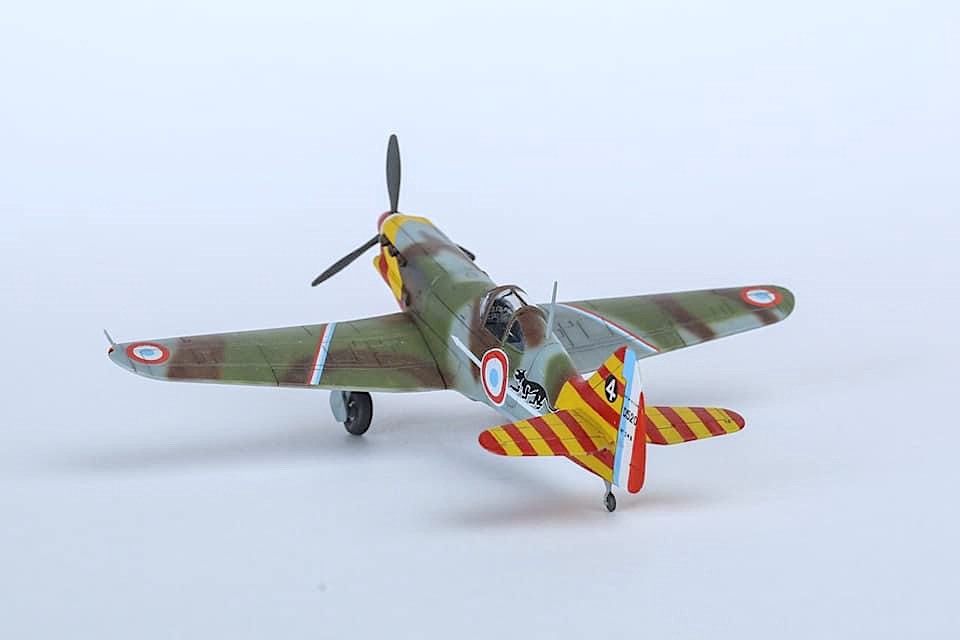

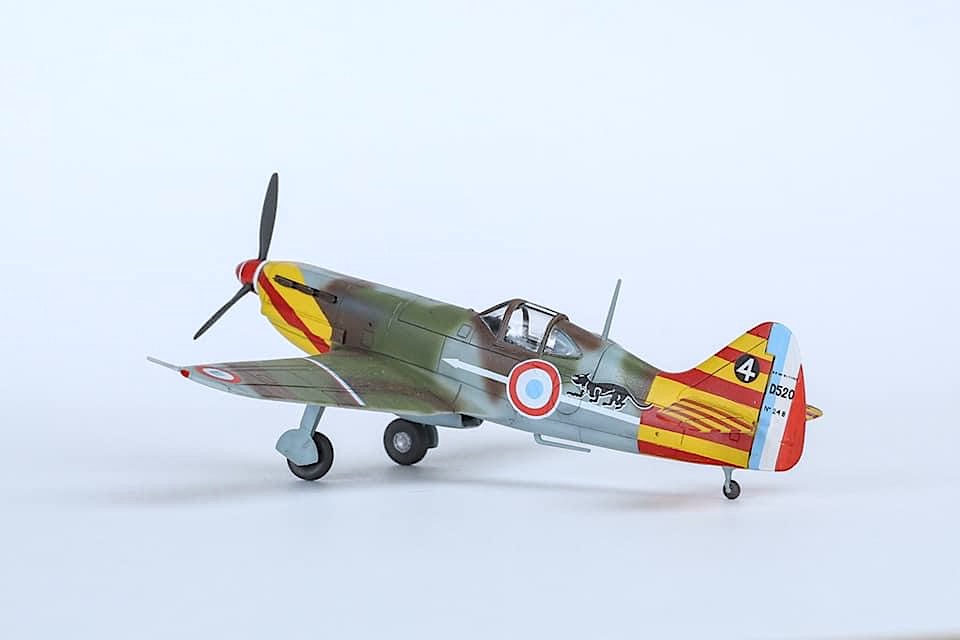

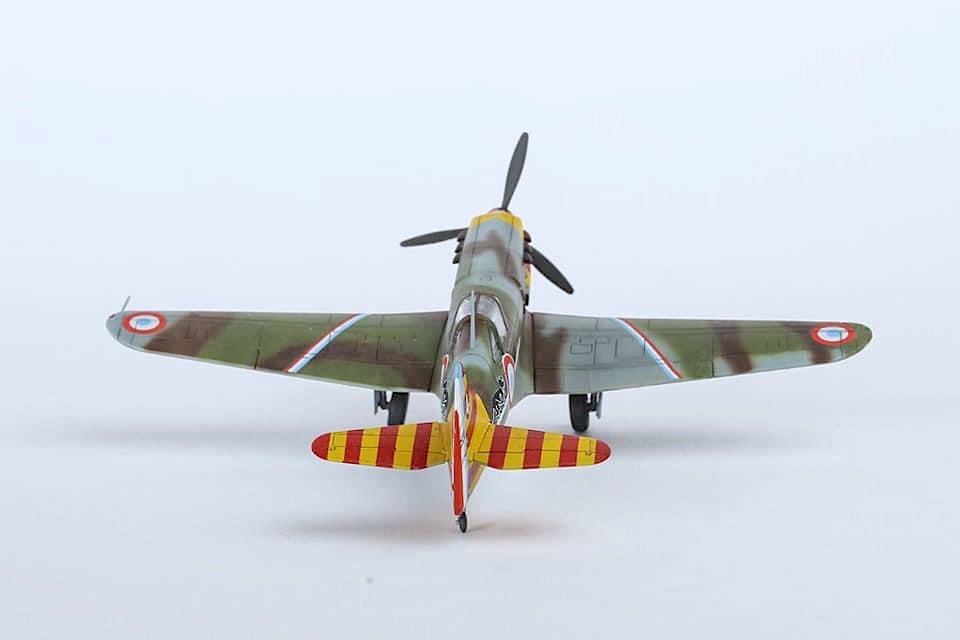

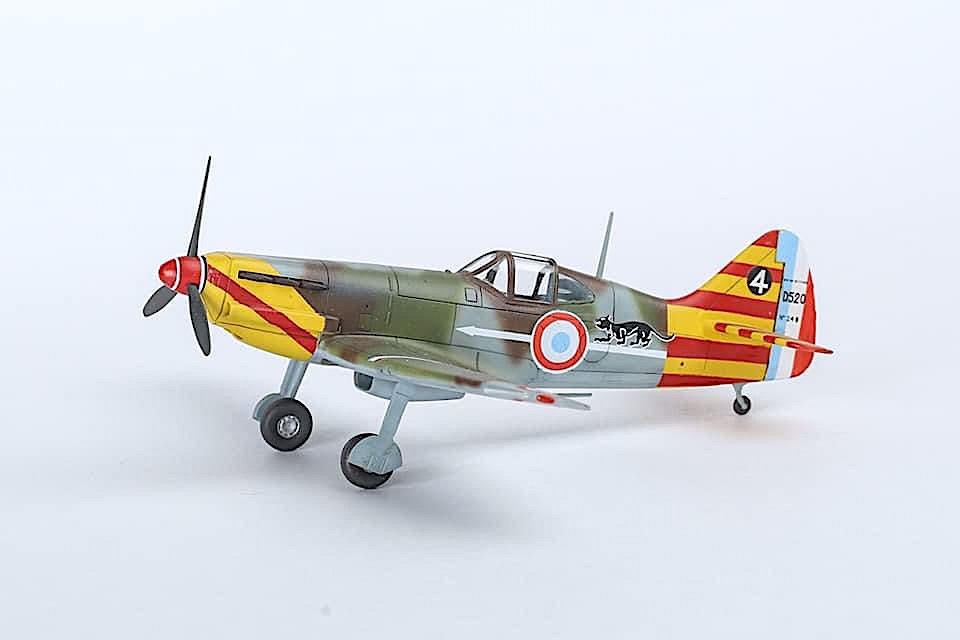

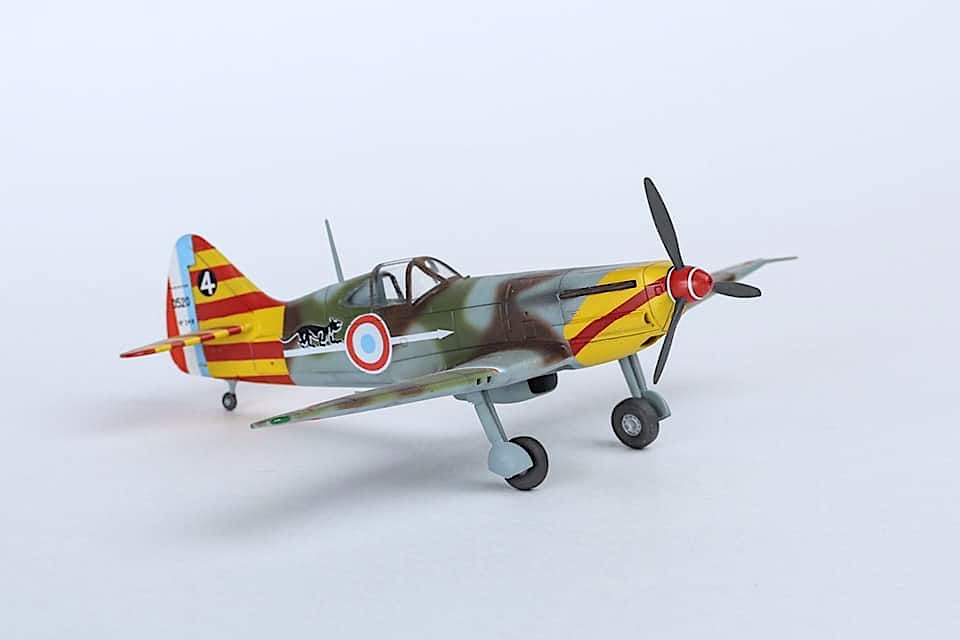

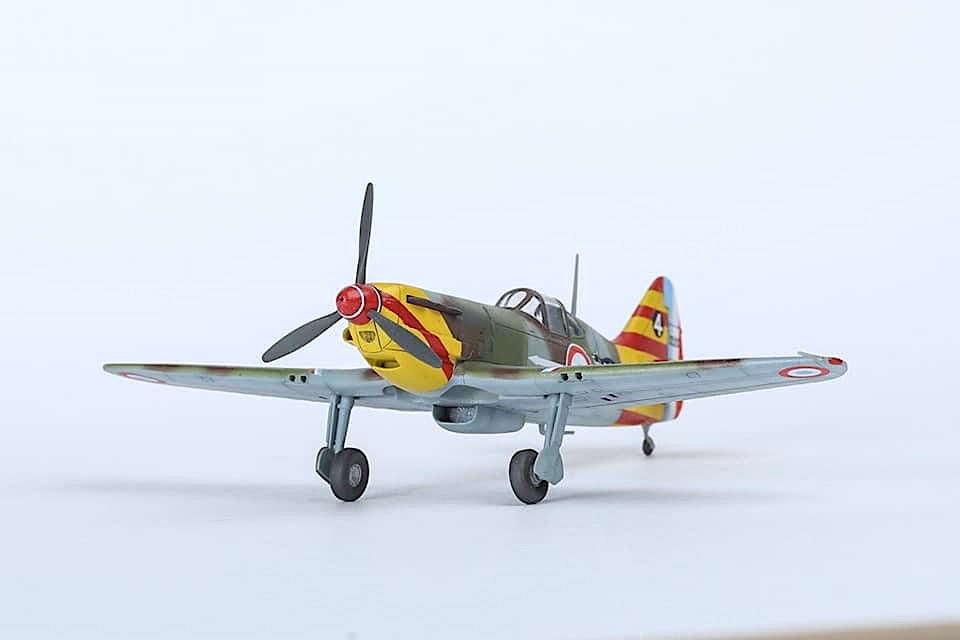

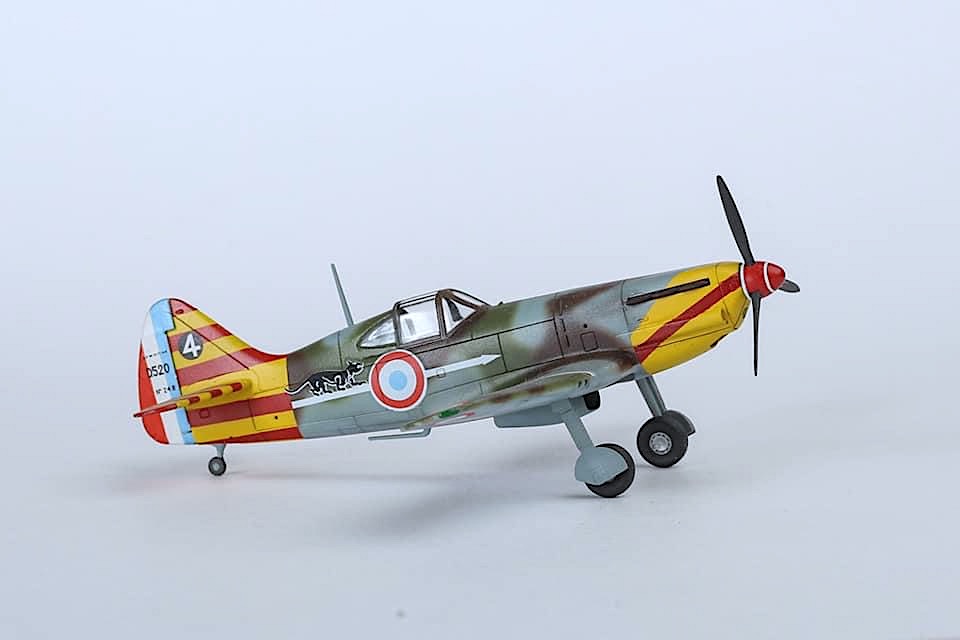

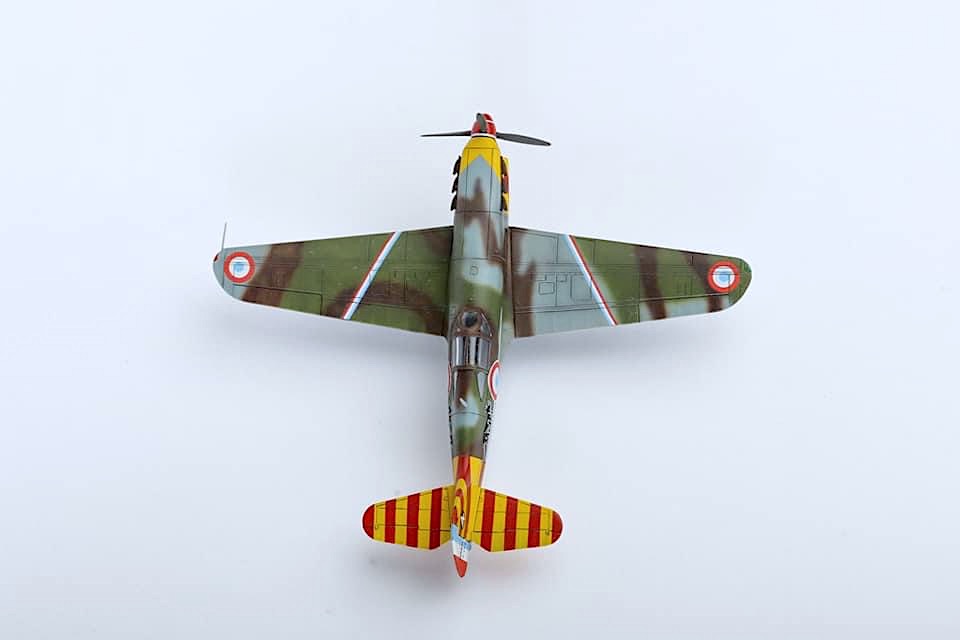

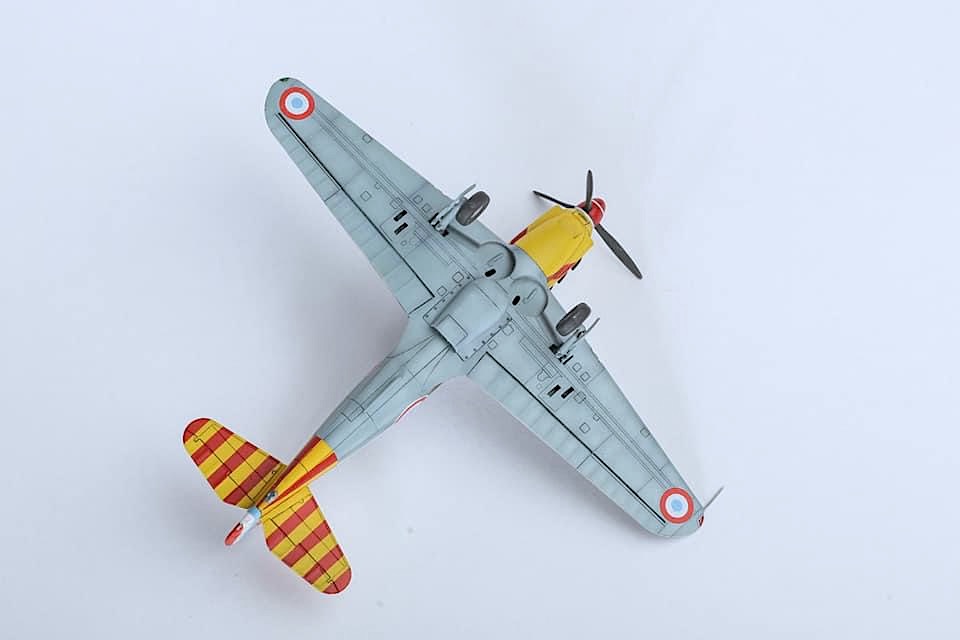

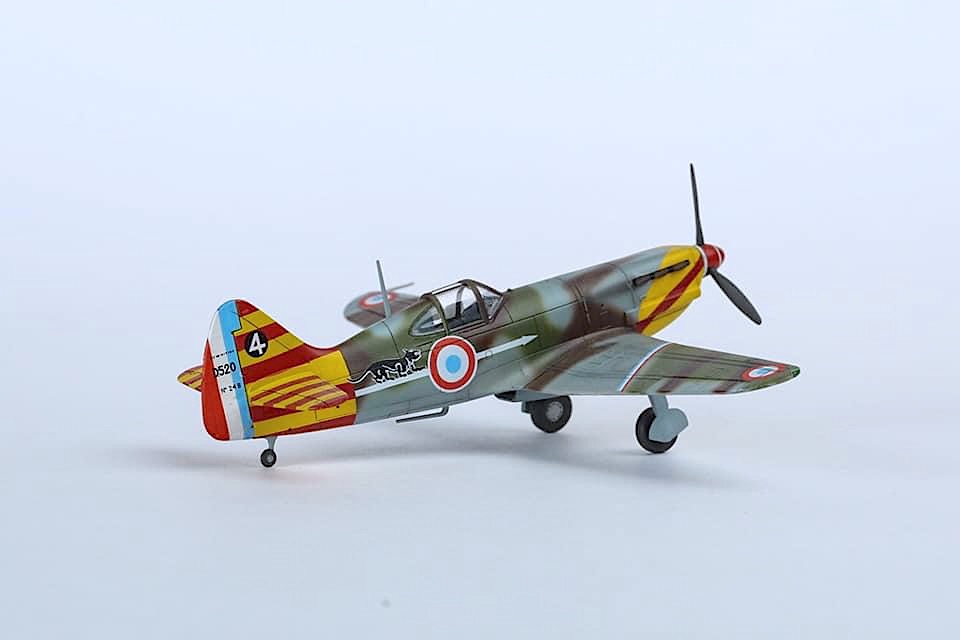

This is my Dewoitine D.520 it’s made from the 1:72nd scale Hobby Boss kit.

Hope you like it…
Alexander P.

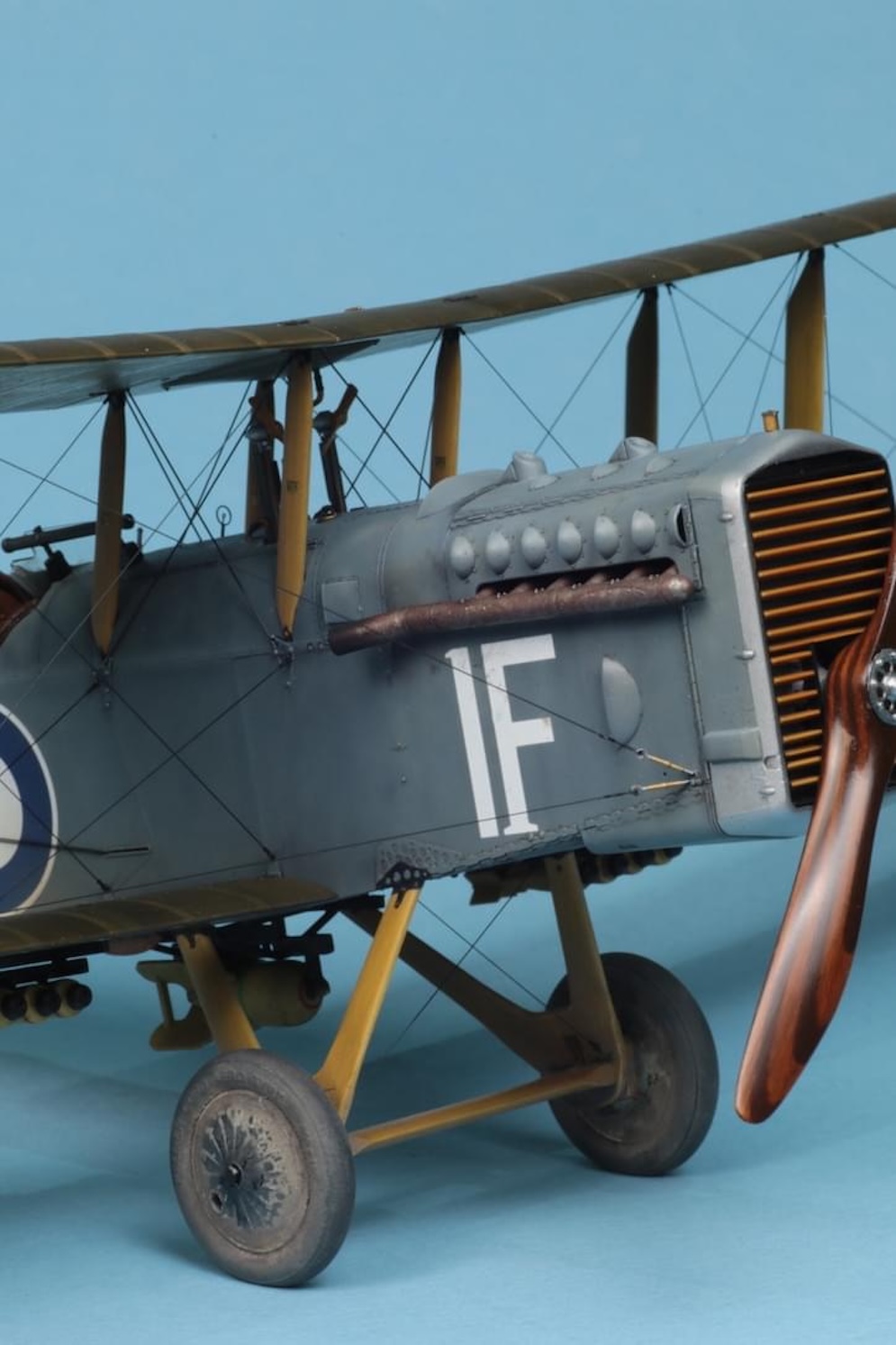

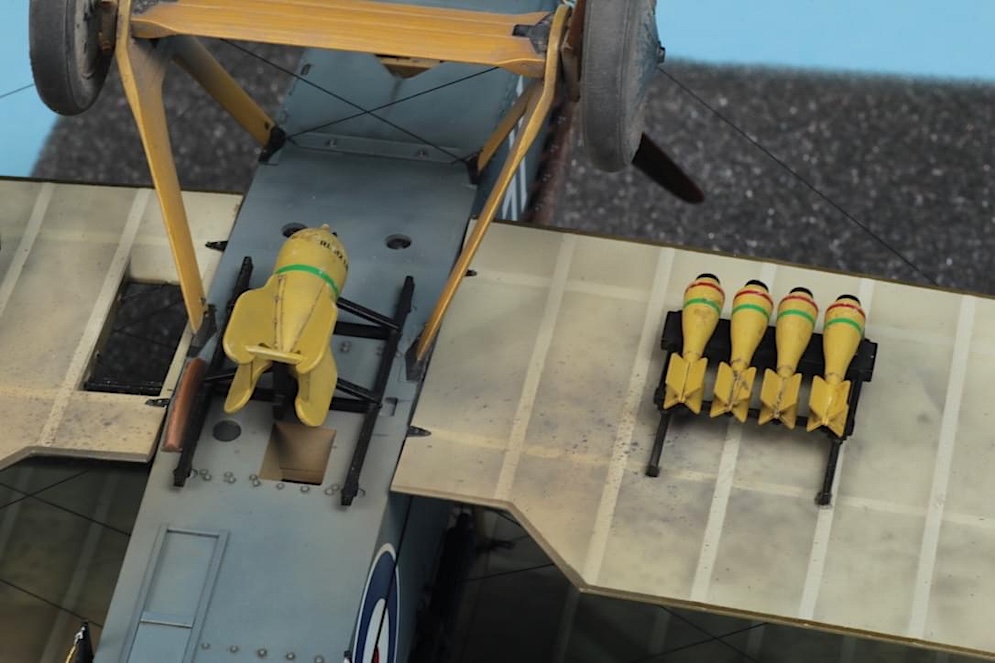

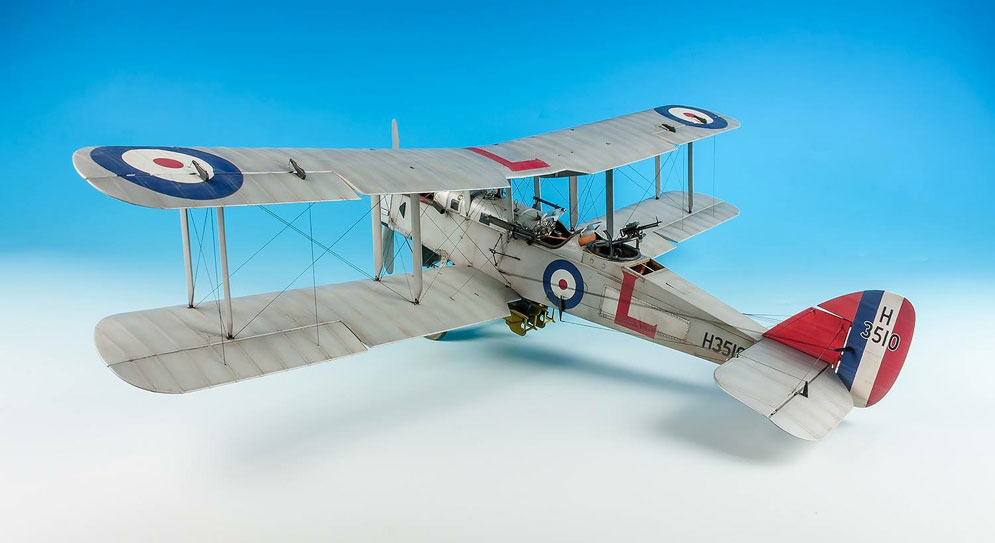

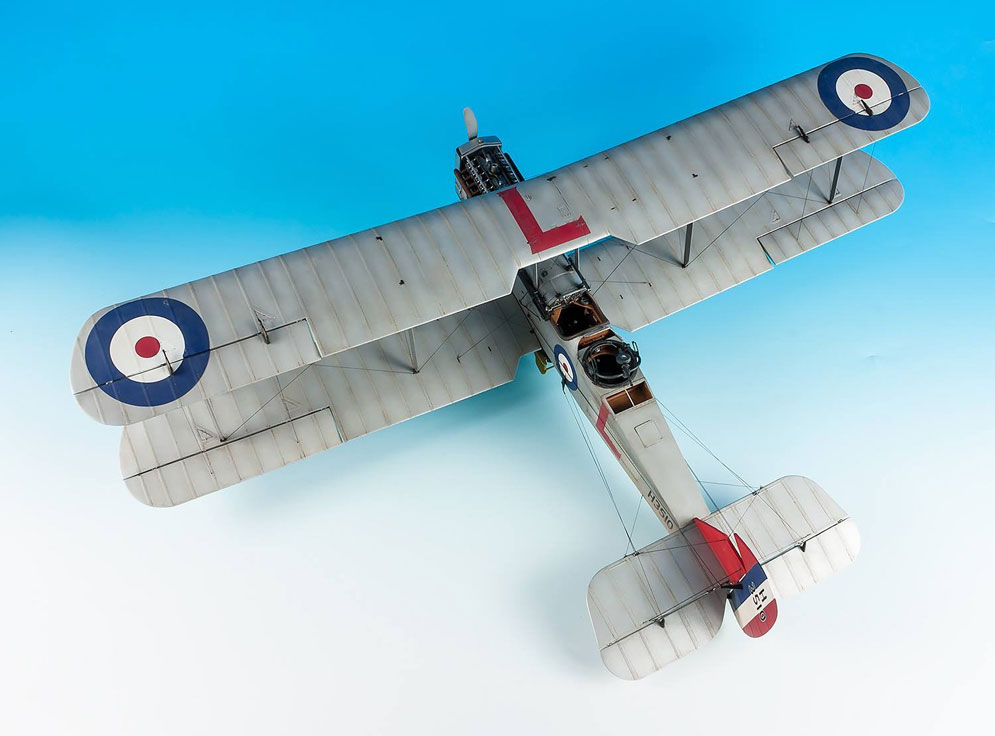

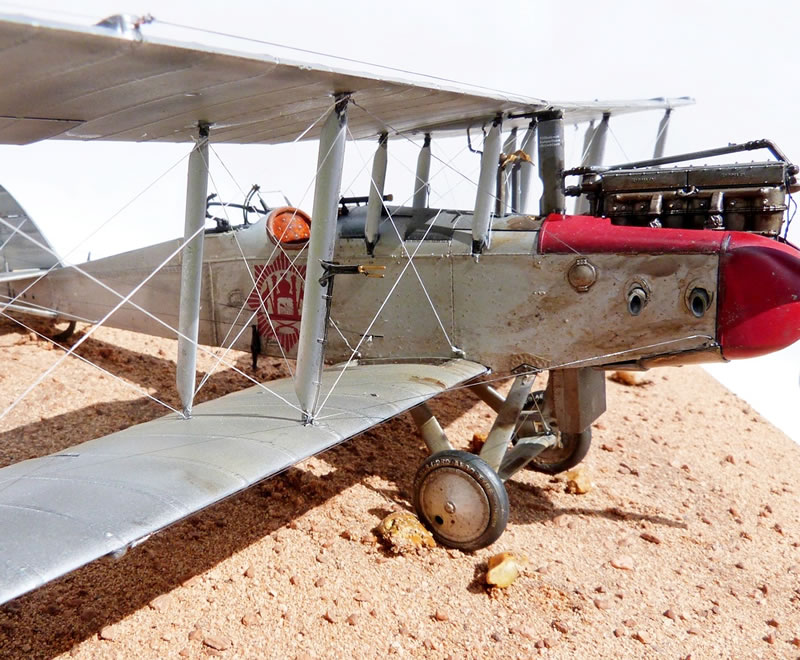

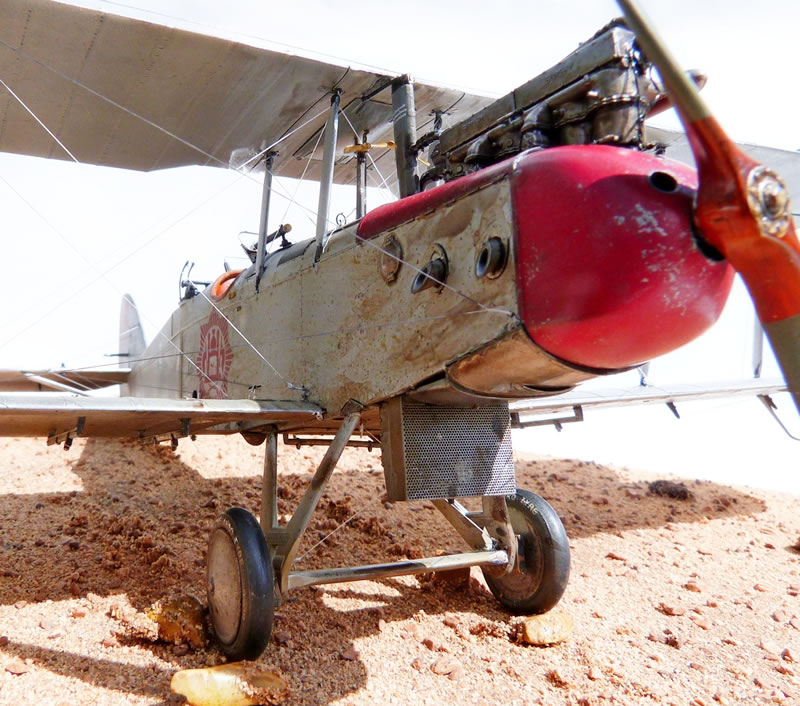

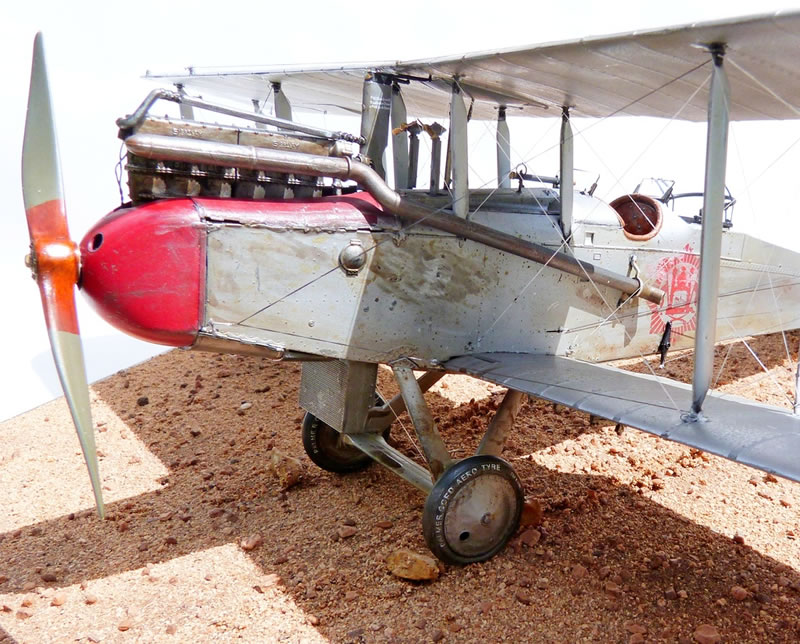

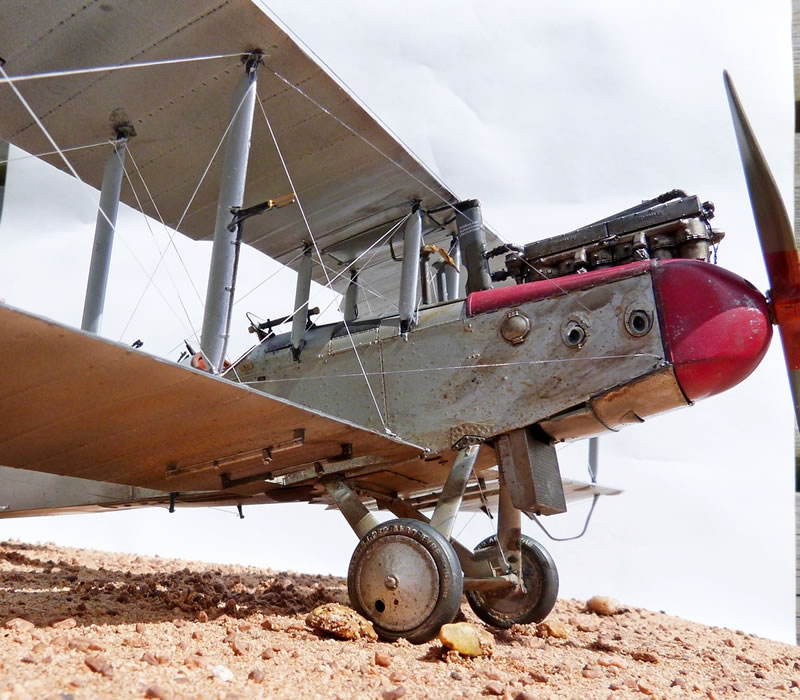

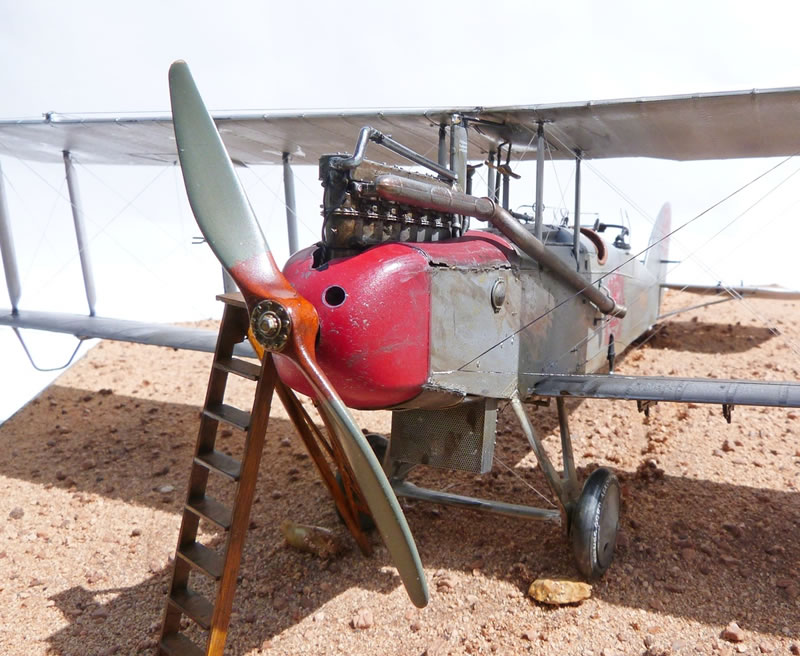

This is one of my D.H.9 kits made from the Wingnut Wings 1:32 scale kit.

I call this one The Peshwari Nine; Wingnut Wings DH9 in Pheon Afghan decals. Weathered to death. Just waiting for a ground crewman under the wing.

Hope you like it? Dave Pogson

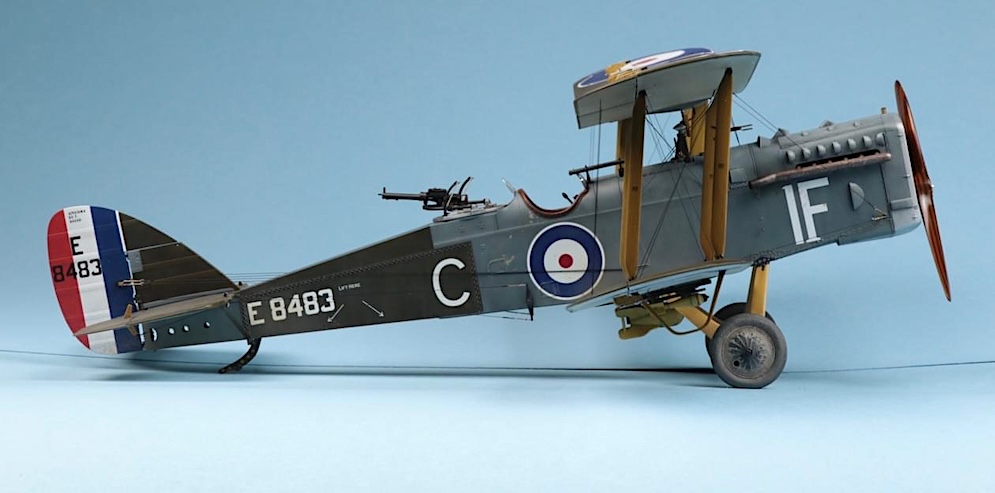

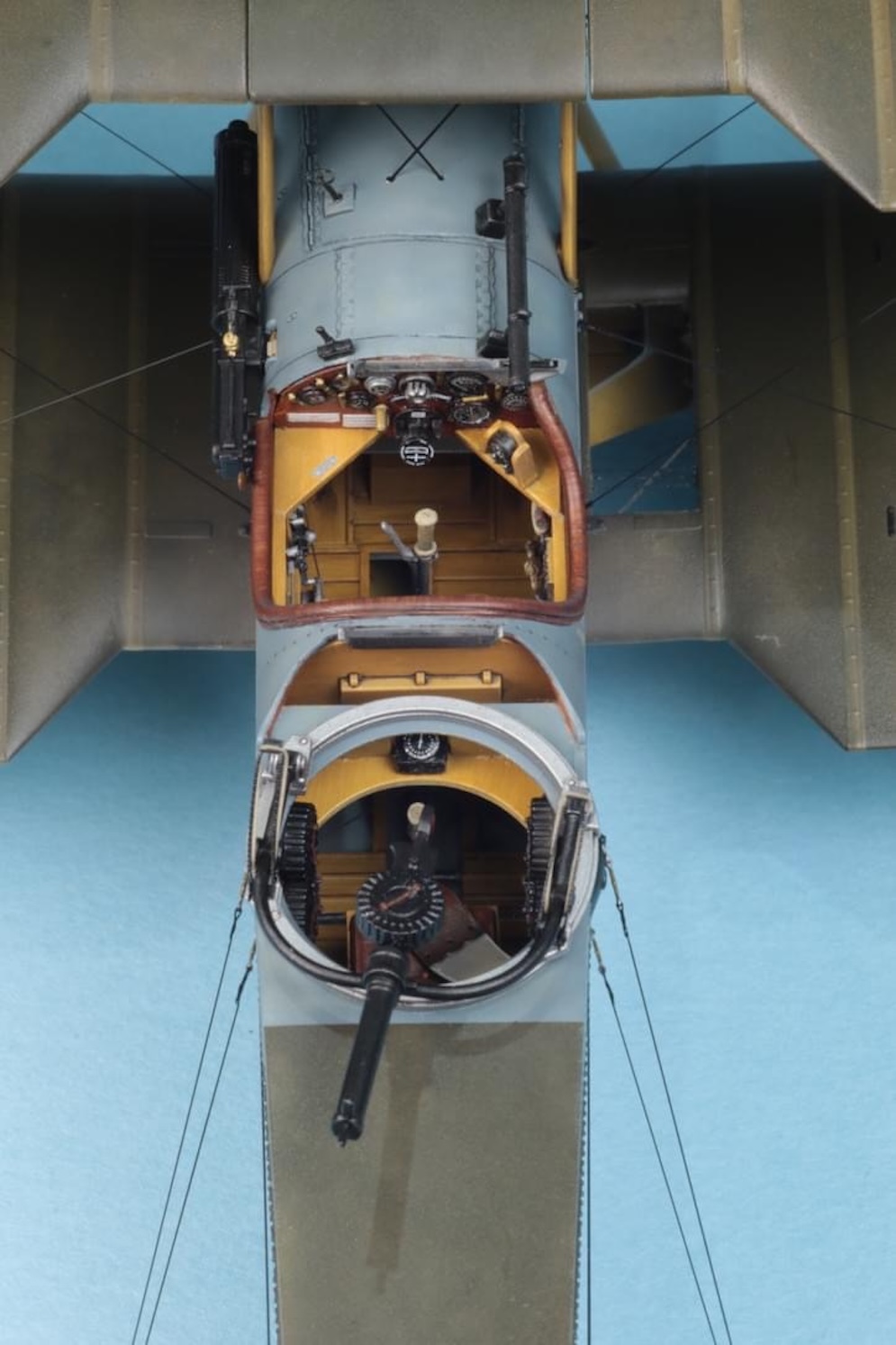

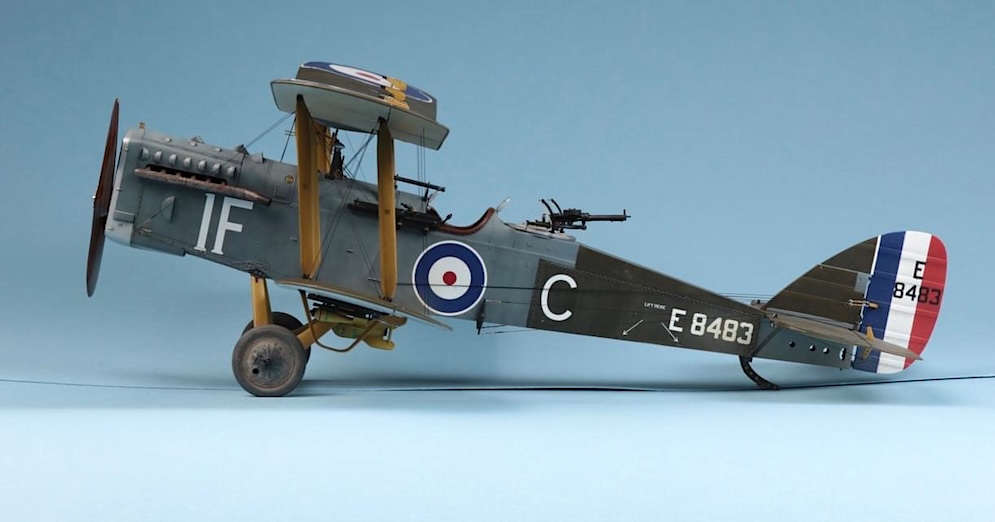

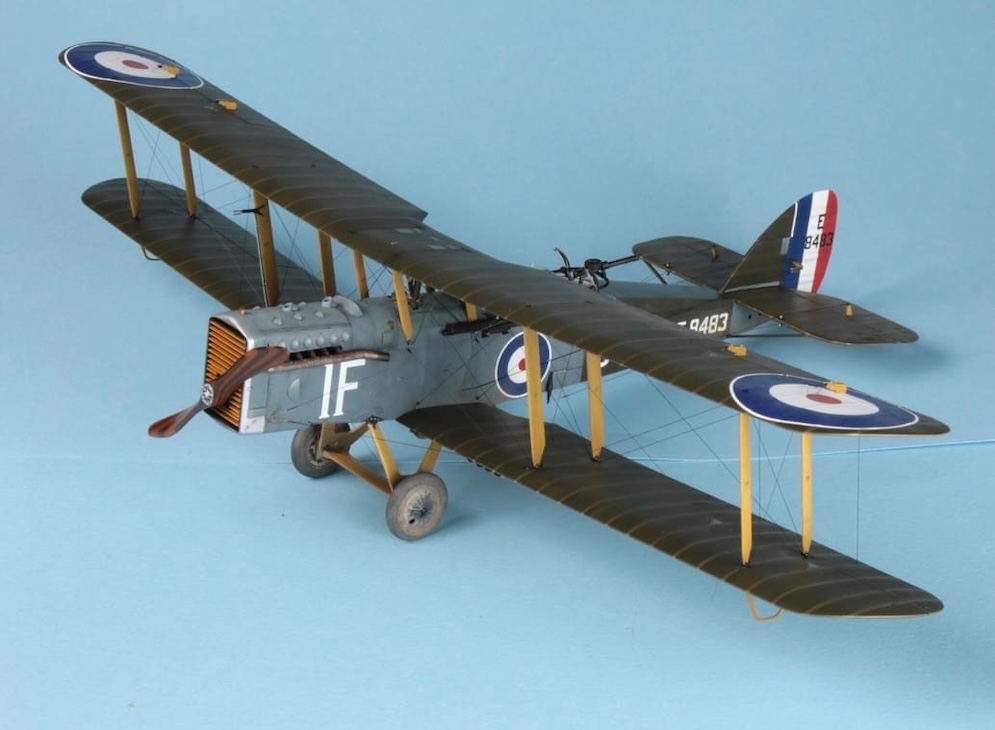

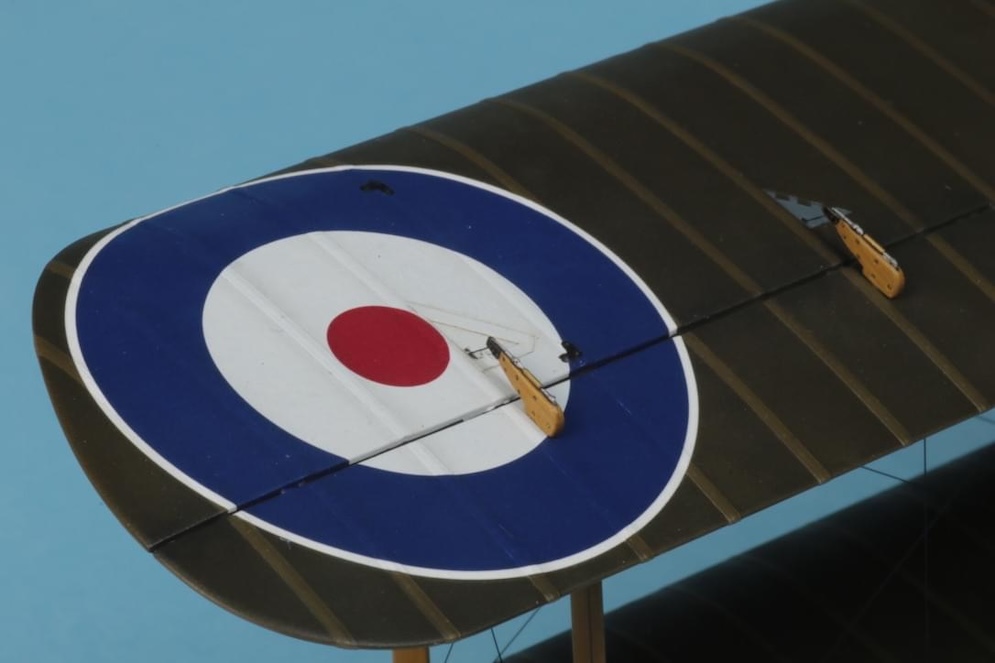

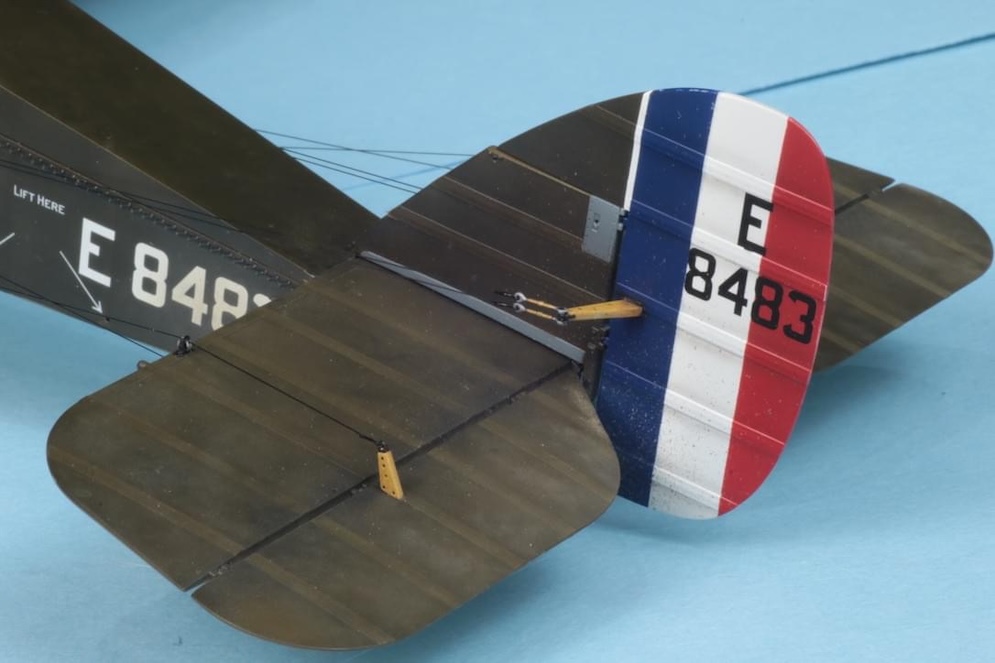

E8483 ‘IF’, AMC built, 99sqn

Tamiya, printing ink and Alclad II paints.

Model Kasten rigging with Gaspatch terminals.

Prop: oils over acrylics

50cm wing span and lots of fiddly bits all over it making it tricky to handle!

Enjoy!
David L.

Here is the Airfix 1:48th Sea Vixen – straight from the box.

It’s a shame there was so little variation in the finishes provided out of the box. There are so many colourful alternatives out there! I have the Model Alliance decal set and a couple more kits waiting in the stash for a rainy day. Wings down next time I think.

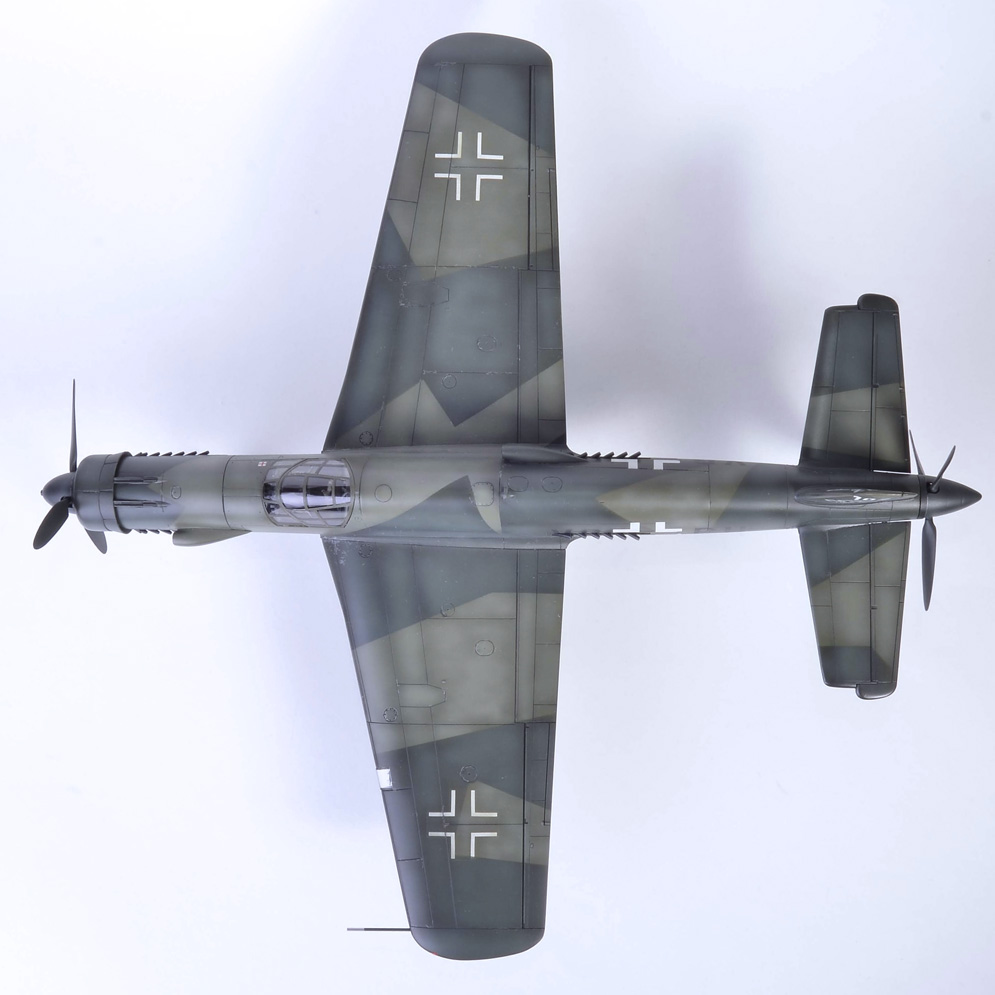

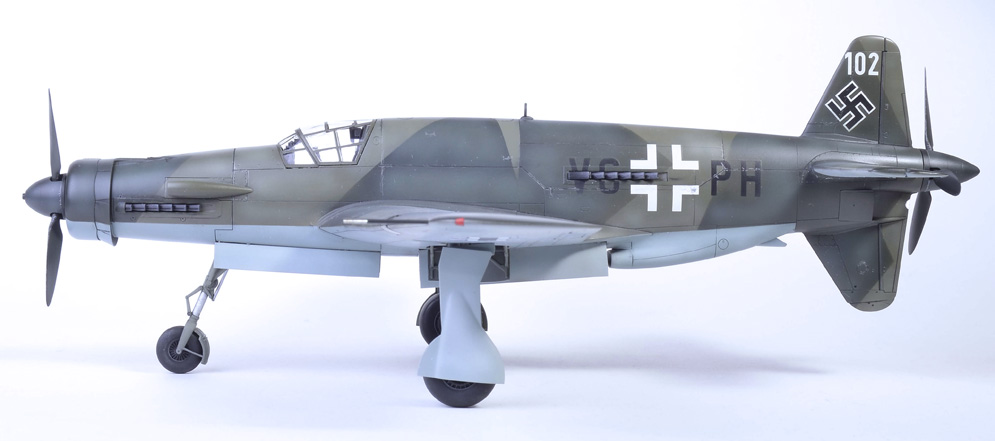

This is Tamiya’s excellent 1:48 Dornier Do335A Pfeil built sometime ago but still a nice build IMHO.

Perhaps a little clean but I don’t like to revisit finished builds so she is what she is. I like the way the top colour camouflage variations came out.

Helped along with the excellent Eduard masking set and a set of late war belts. The cockpit is decent for an out of the box affair. The internal detail is all hand painted. The much lamented Aeromaster warbird colours were used for the main camouflage scheme, sadly they are no longer available.

Rick G.

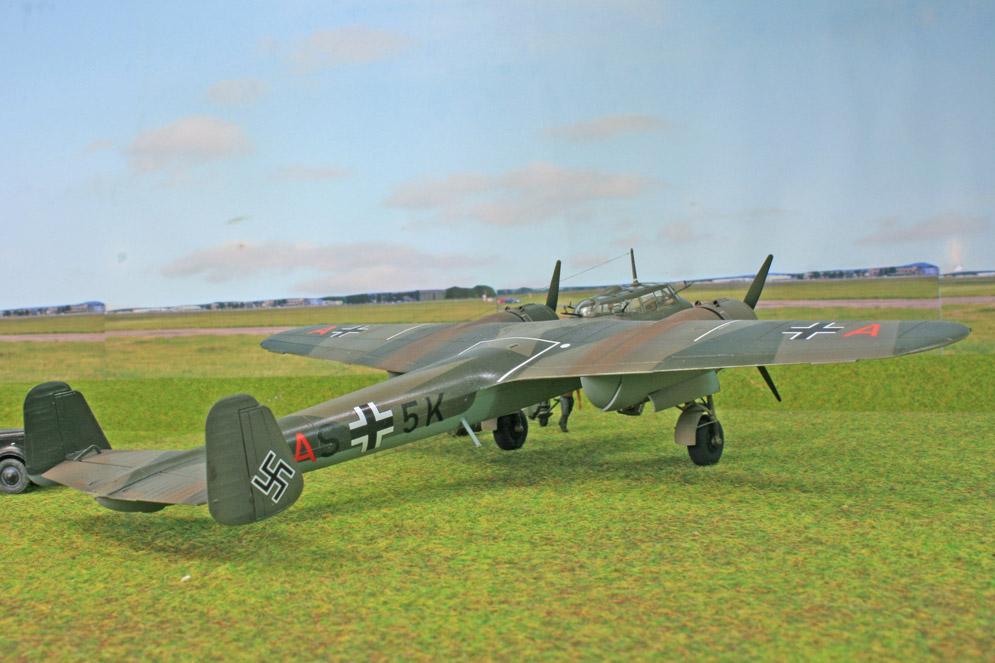

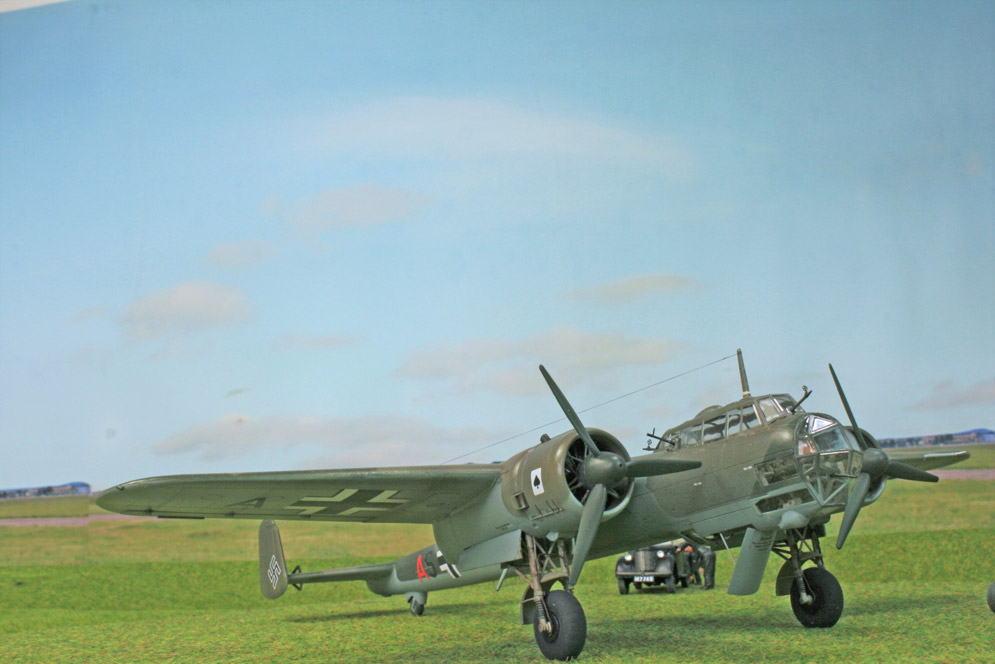

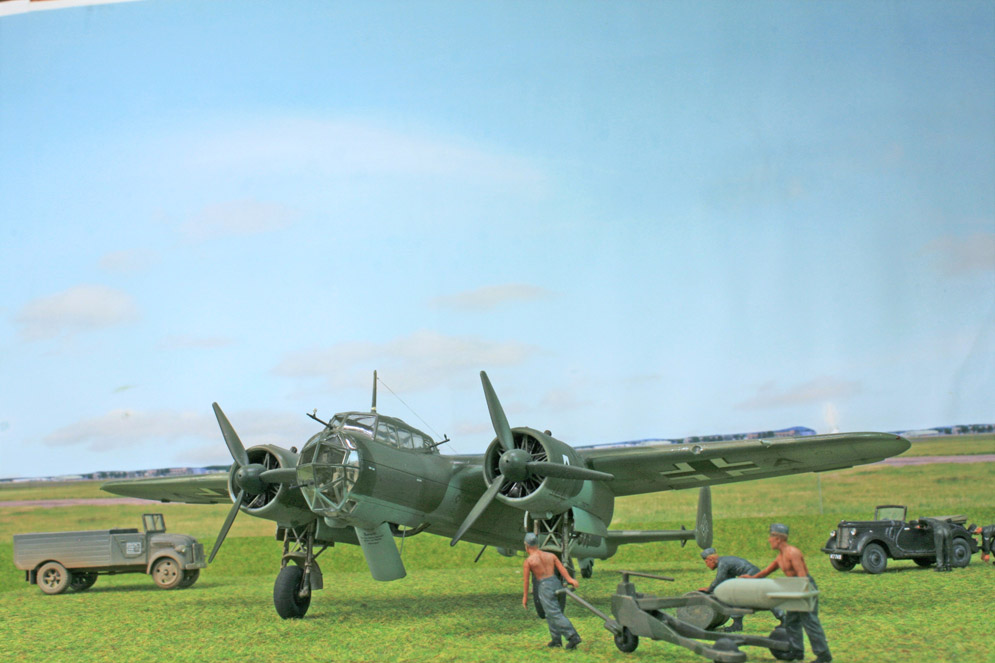

Please find enclosed the Airfix 1:72 Dornier Do17-Z.

I upgraded the kit with Eduard PE and Eduard resin MG15 machine guns. The decals from Xtradecal are from an aircraft of 8/KG3 based at Le Culot during the Battle of Britain. The Kamfgeschwader formed part of Kesselring’s Luftflotte 2.

The Airfix kit is not entirely straightforward to build but I applaud Airfix’s ambition to be true to the design of the original. The Dornier Do-17Z whilst being a very reliable aircraft, did not have the range or bomb carrying capacity of the Ju-88 or He-111 and so was phased out of frontline duties by the end of 1941.

Hope you like it!
Andrew J.

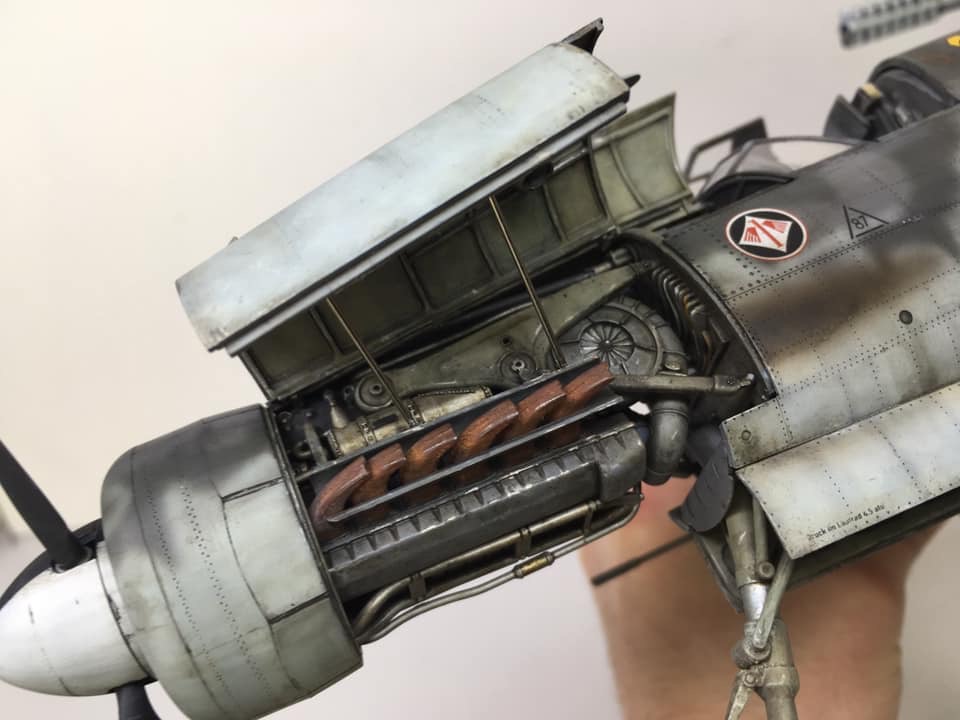

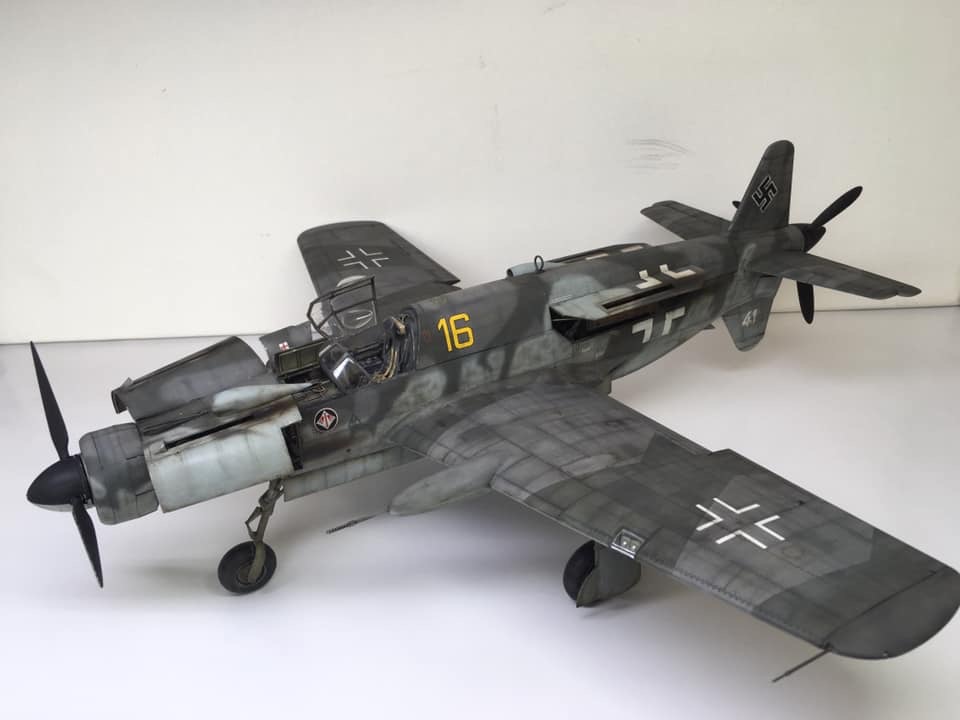

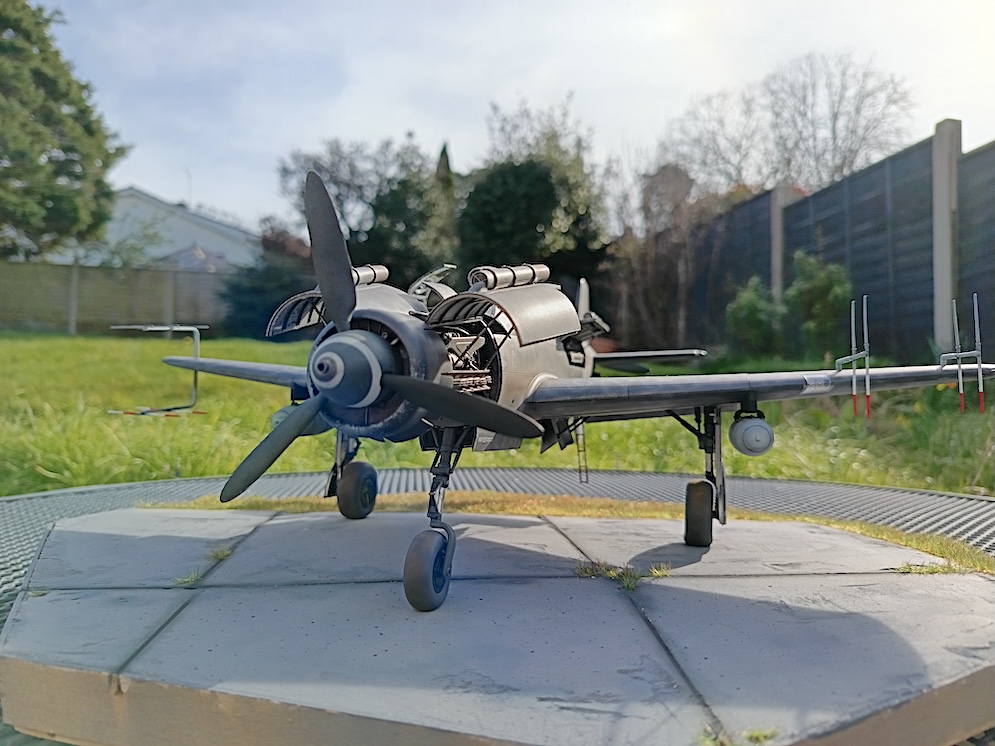

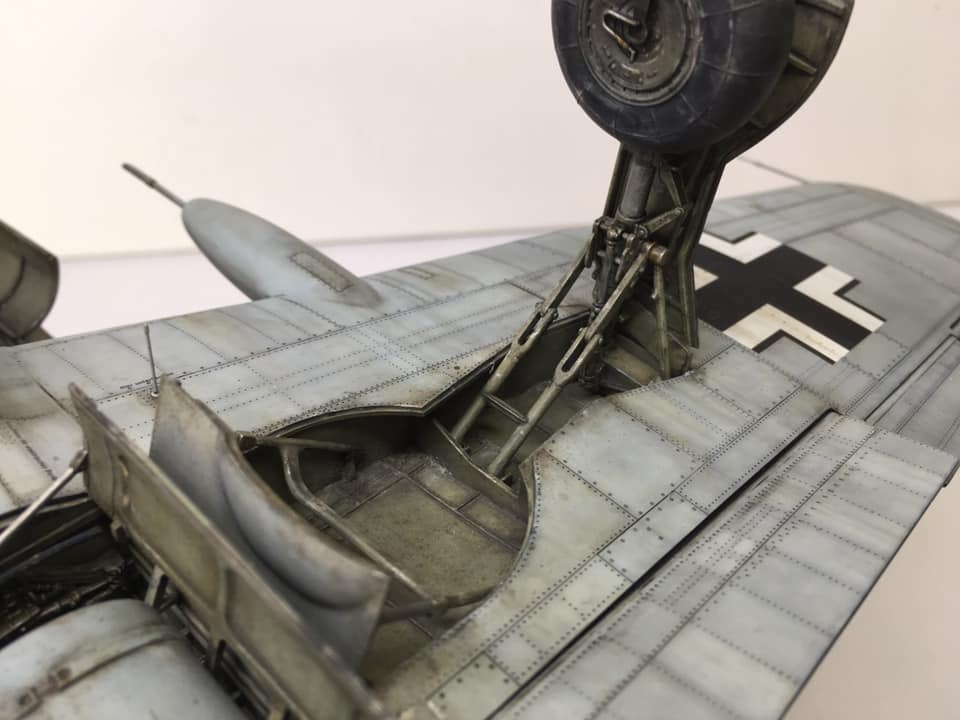

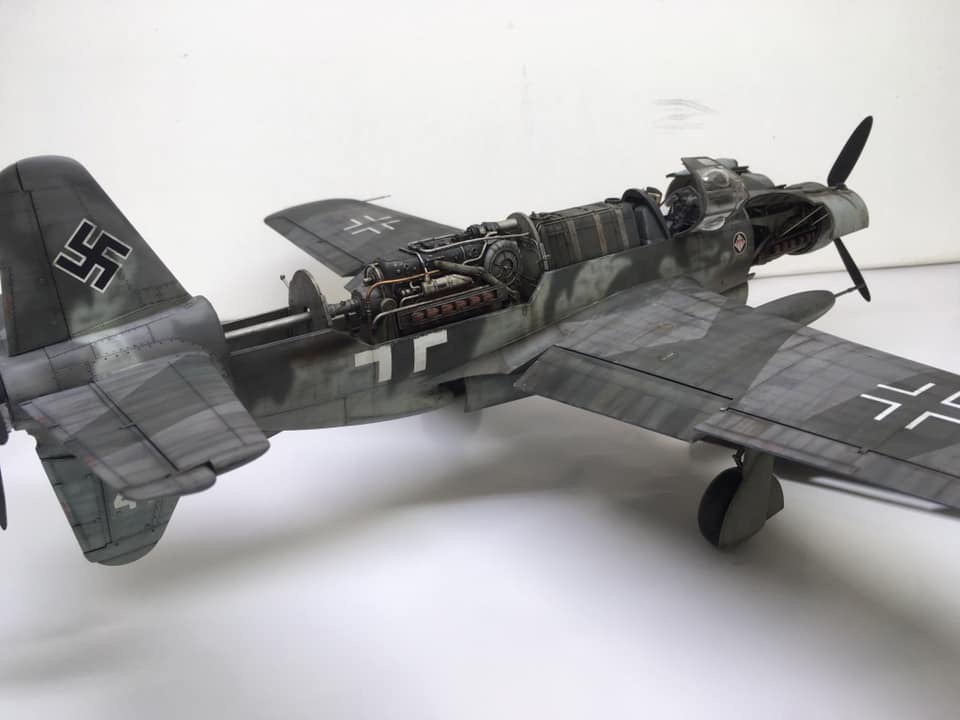

Here is my 1:32 HKM DO 335 B-2 Zerstörer

After 200 hours I’m done!

Alexander W.

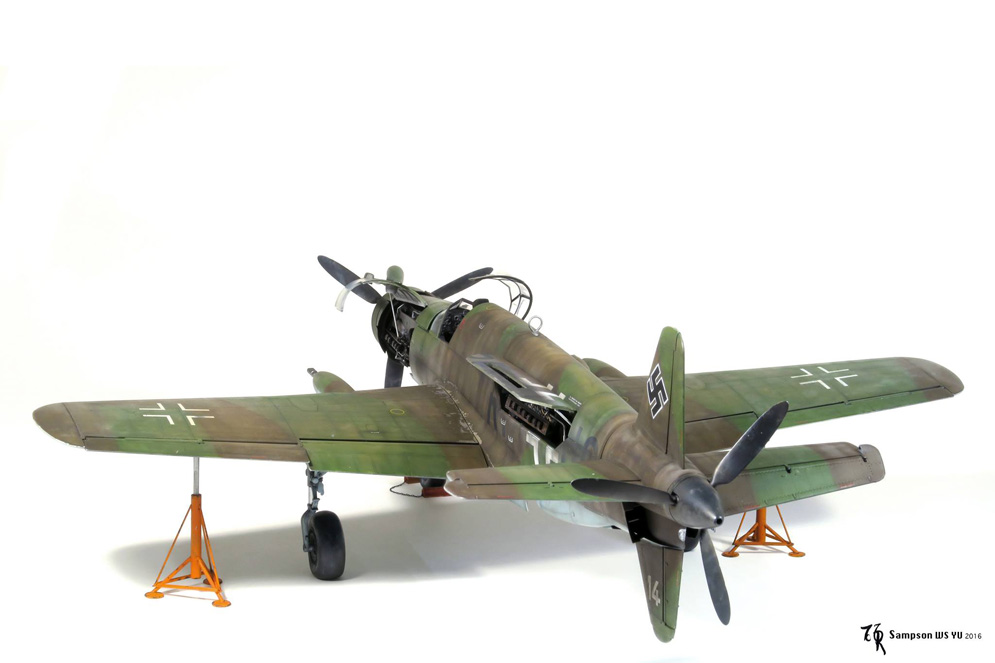

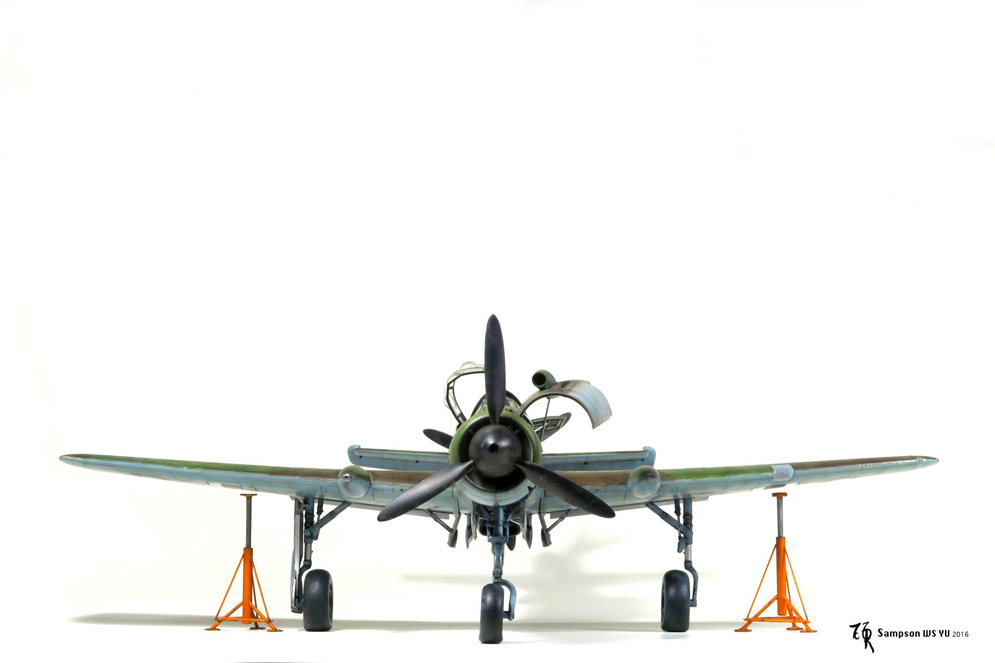

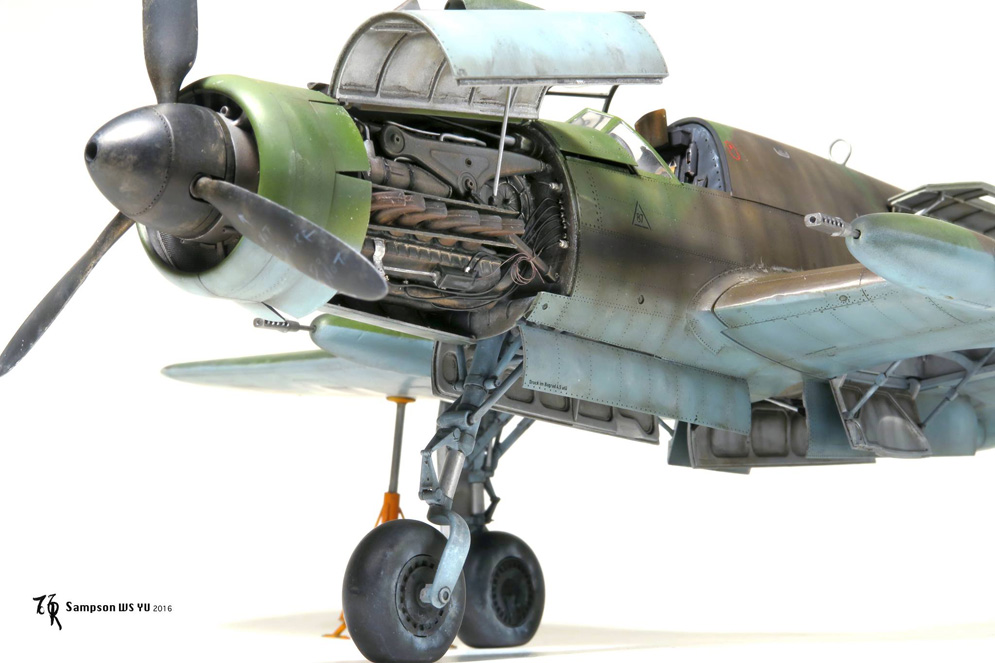

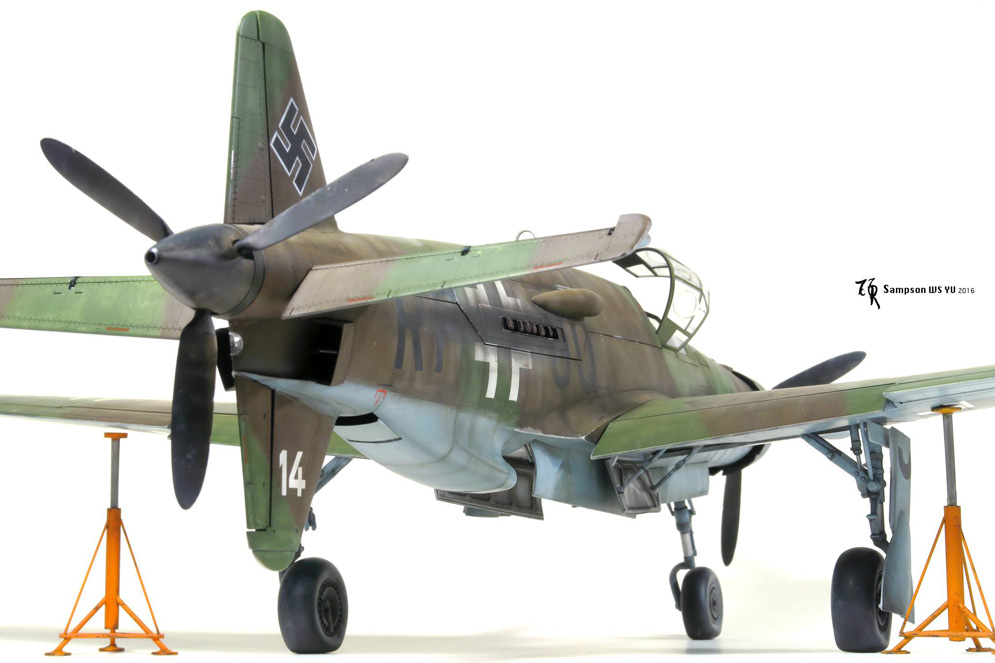

I recently came across this stunning model by Sampson of the HKM Do335 Phil (Arrow) in 1:32 scale and asked Sampson if we could post his pics here and he readily agreed – thanks Sampson!

I just love the weathering and attention to detail that gives his model such realism and life – just love it and I expect you will too.

As I write these words… (8 April 2016)
We are lucky enough to have received a great sample of the amazing Do 335 Phil 1:32 kit from Volks Zoukei-Mura and you can see a full in-box review here.

Soon after that we will be following up with our own full in-depth build that you can follow in Build Now and then, when it’s complete, you’ll see the whole build in the Zoukei-Mura section of Finished Now.

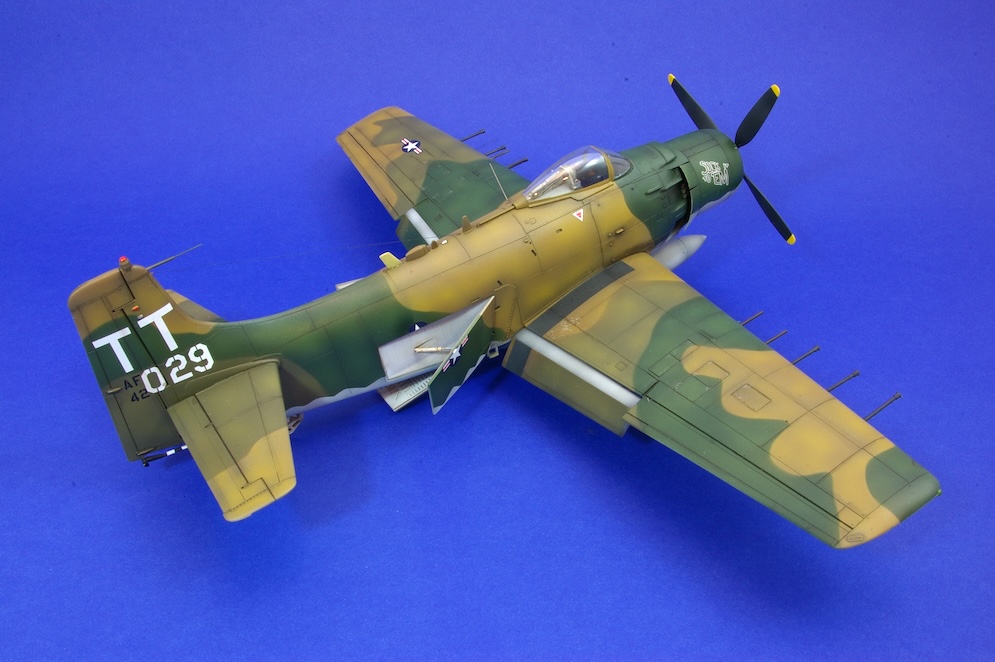

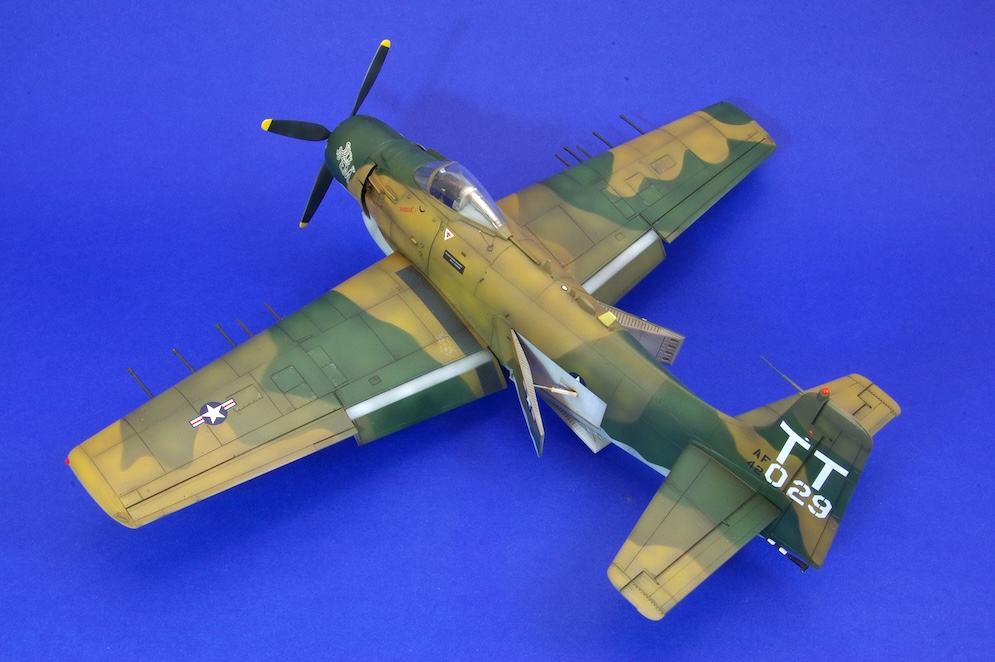

The subject of this project was the U.S Air Force edition of the Tamiya 1:48 Scale Skyraider.
The kit originates from 1998 when Tamiya released the naval version. This slightly modified version came out in 2000.
The model is very easy to build though the modeller will need to add seat belts if required. I took mine from an old eduard set meant for U.S. Navy aircraft thinking that the original naval seat harness would probably have been retained when the aircraft were in use by the U.S. Air Force. I may be wrong here and there may be Skyraider aficionados out there crying and / or rending their garments at this point. However, I felt that if there were any differences, I could live with it.
On some (but not all) aircraft there seems to have been a fabric fairing behind the pilot under the cockpit canopy. This is not supplied in the Tamiya kit. While there are aftermarket parts available for this, or perhaps a suitable item could be made from tissue soaked in white glue or Milliput, I left the area unaltered on my model. The plastic guns were replaced with thin metal tube.
The model was painted using Mr. Hobby paints which give a transfer-friendly satin finish.
An aerial wire was added between the fuselage and the tail using thin elastic rigging thread. This was anchored using a couple of Bob’s Buckles ever useful and very tiny eyelets placed into pre-drilled holes. The antenna at the rear of the cockpit was added using thin steel wire.
All in all, this was a highly enjoyable project, though I must admit that my attempt to mask and spray paint the yellow markings on the considerable amount of (highly unpleasant) ordinance carried under the wings was less than neat. Maybe under wartime conditions in a sweaty, steamy, disease-riddled jungle they weren’t applied all that neatly on the real aircraft anyway?
We live in hope.
Dai W.

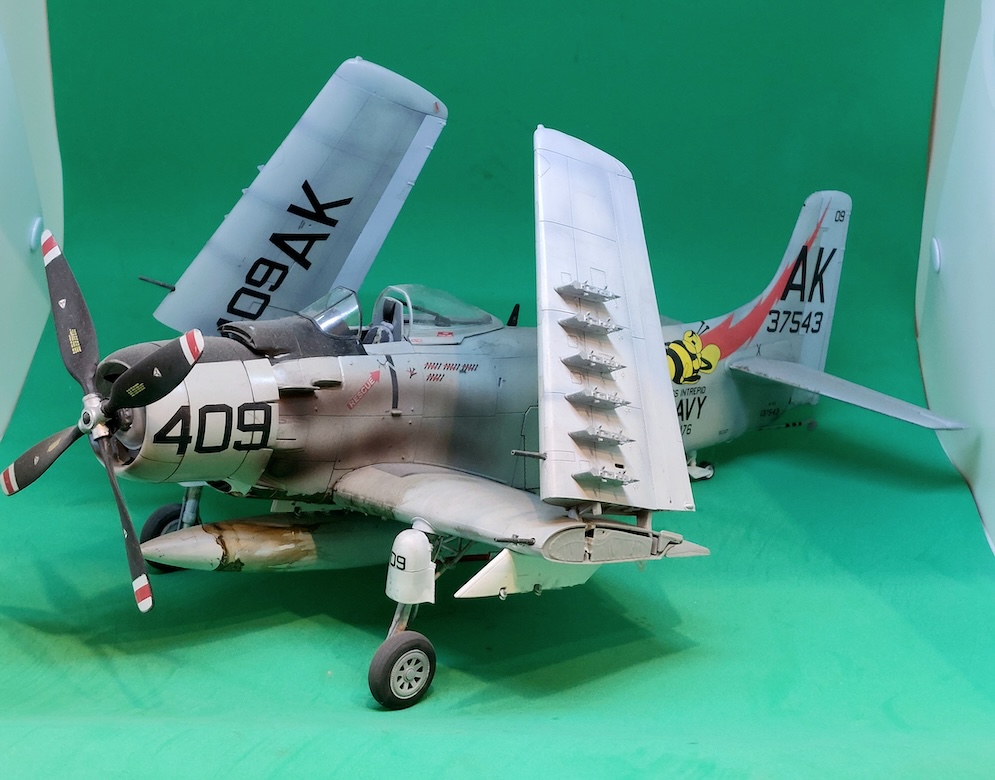

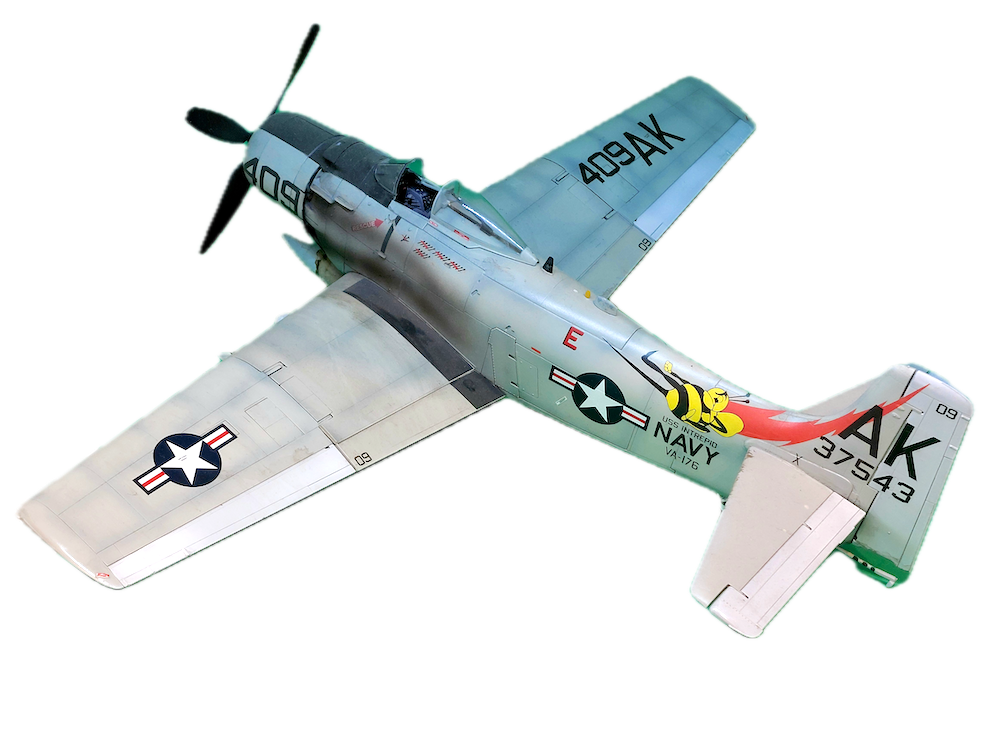

Zoukei Mura 1:32.

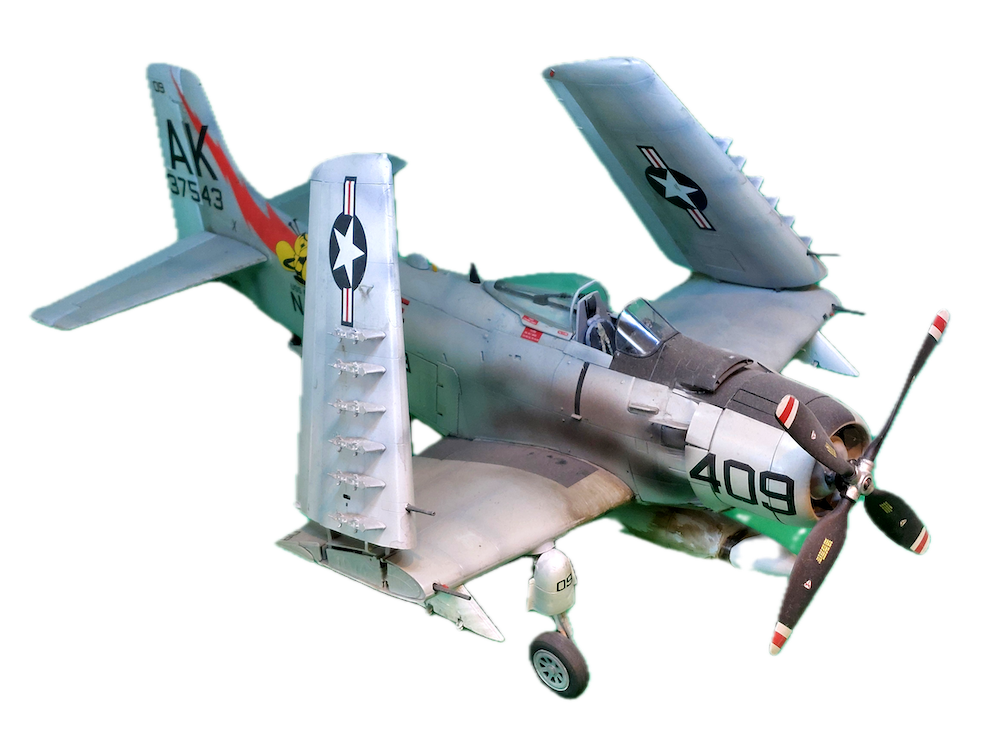

I built this kit three years ago and decided recently to bring it down off its shelf for a clean and re-furb.
I remember that this was a lovely kit to build. The detail is excellent but in some places distinctly over the top in places. For example, the kit includes a set of pistons, master and slave rods to install inside both rows of cylinders! Photos do prove I did install these just for the hell of it.
The model was completed in the famous ‘Bumblebee’ markings of VA-176 during the South-East Asia conflict.
The weathering was copied from several photographs taken at this time. The distinctive exhaust staining and oil leakage is not overdone by the way. That massive Wright R-3350 Duplex-Cyclone used between three to five US gallons of oil per hour, most of which was burnt and discharged through the exhausts. The remainder leaked profusely when shut down. The oil capacity, I believe, was a whopping 34 Gallons!
Rob R.

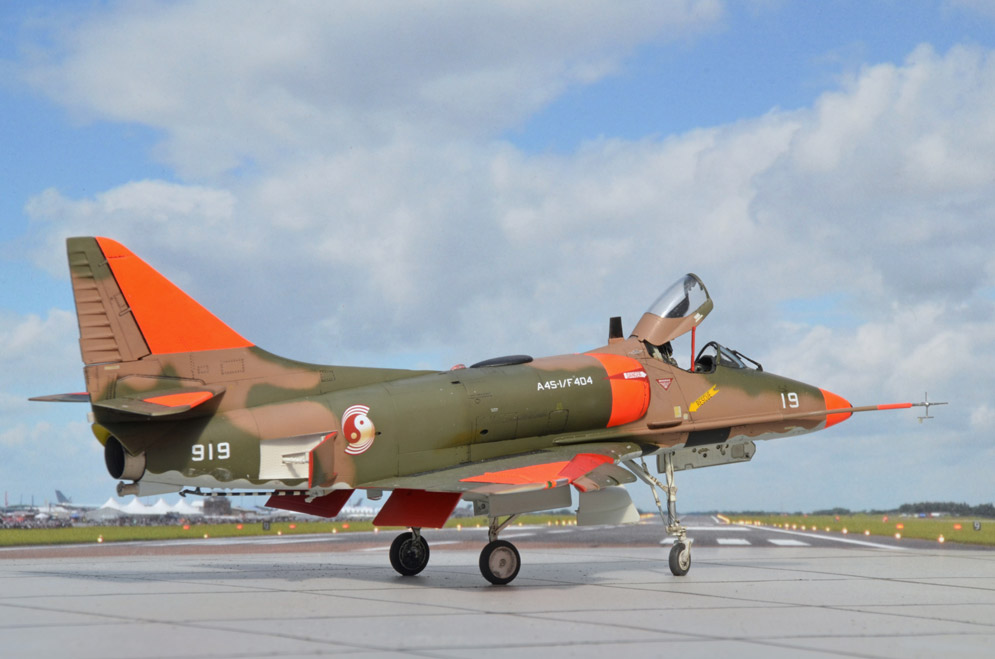

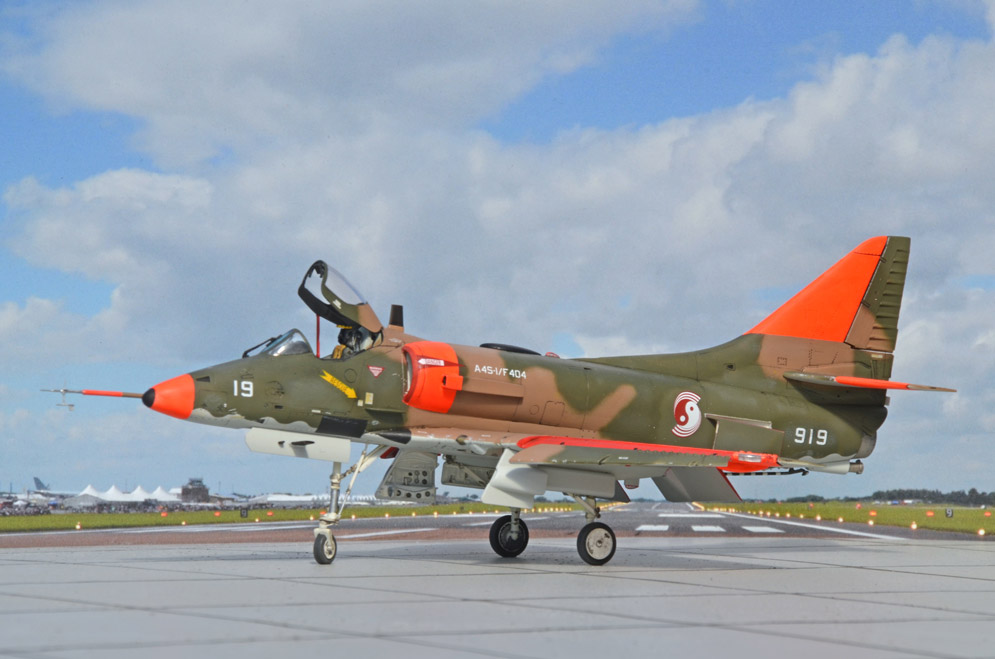

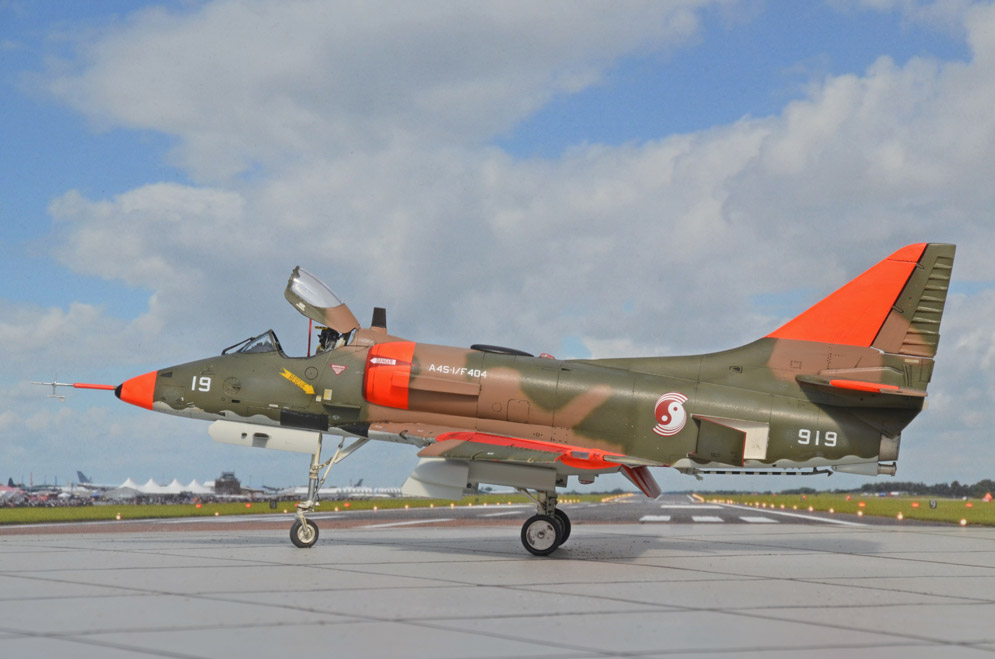

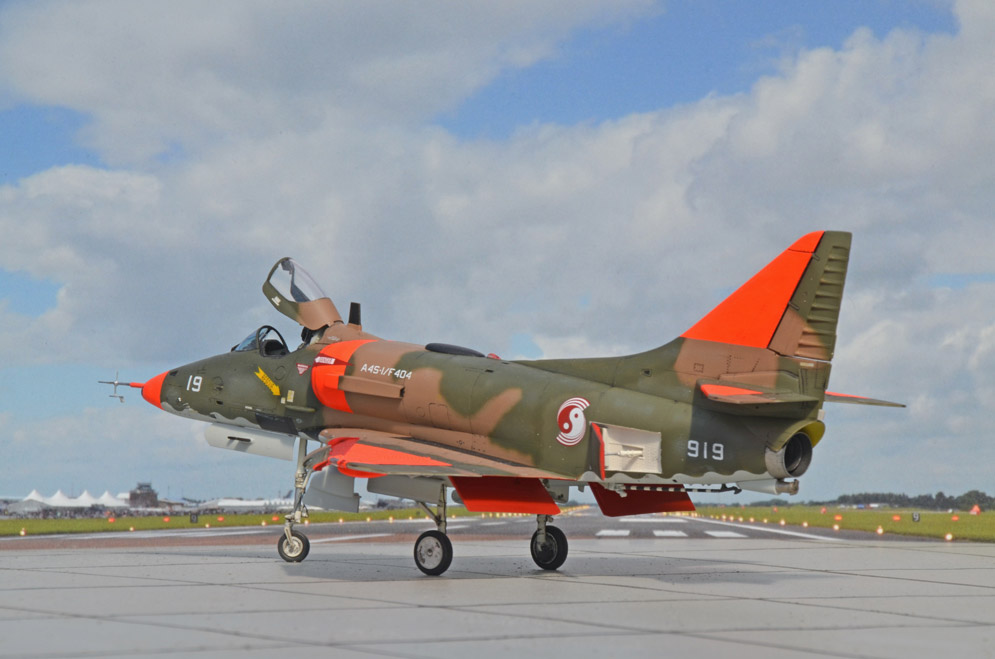

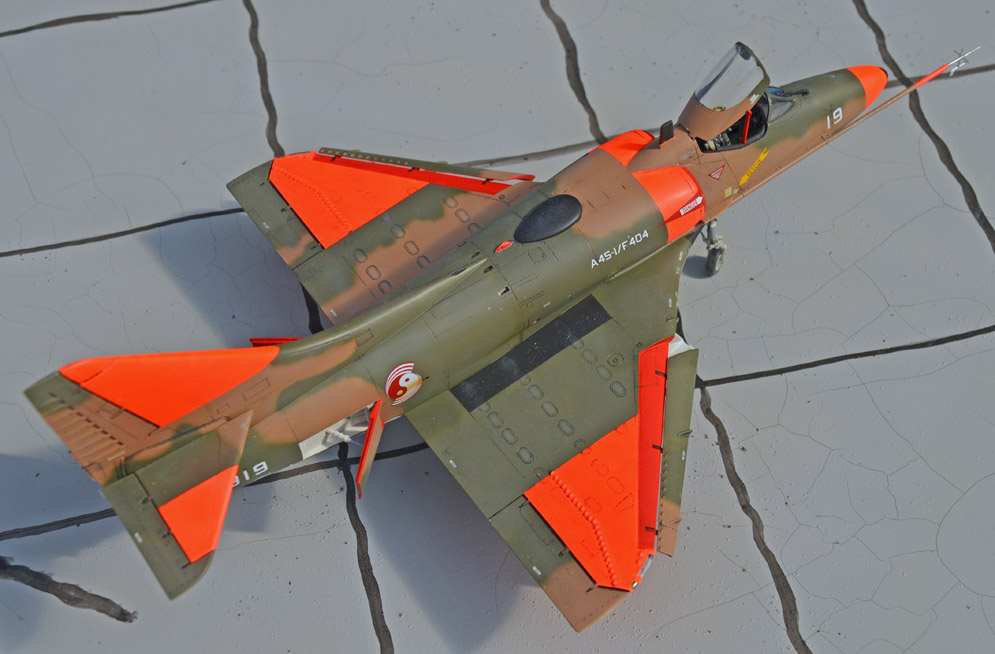

This is a Hasegawa 48 scale kit of a Singaporean Black Knights Aerobatic Team A-4 SU. Birds from Aerobatic teams are clean, nothing for me. So I looked for alternatives for SU Skyhawks.
I found it with the MILLIVERSE Decal set for Singaporean Skyhawks, which covers the full range from the early beginnings to the very late birds. One of the best and most comprehensive decal sets I have seen so far! Unfortunately it is not available any more….

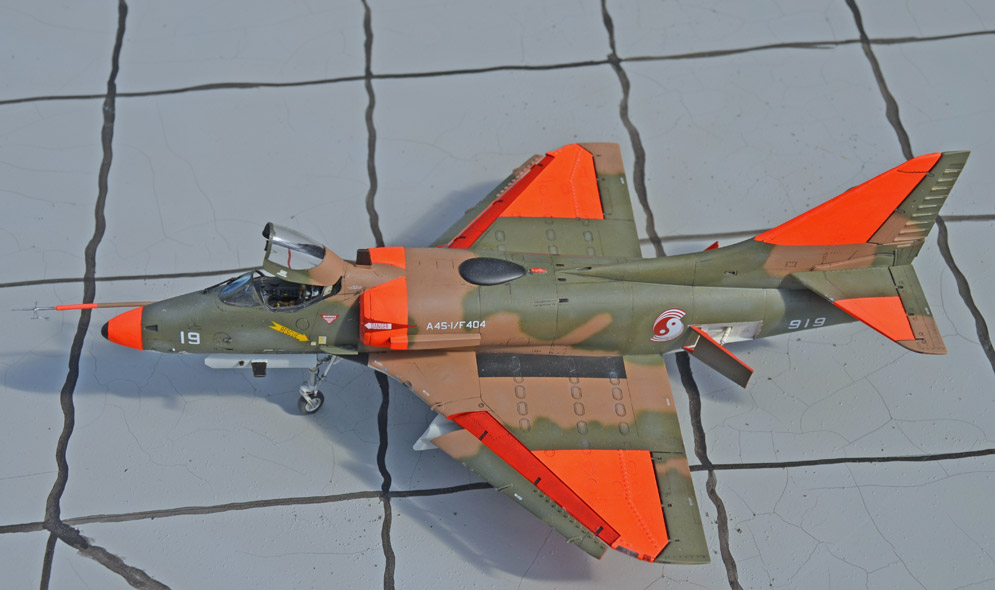

I decided on a prototype from Singapore Technologies Aerospace for the A-4 SU with the F 404 engine. It had bright orange patches and an AOA measuring device on the inflight boom. Otherwise a built straight from the box!
Jurgen J.

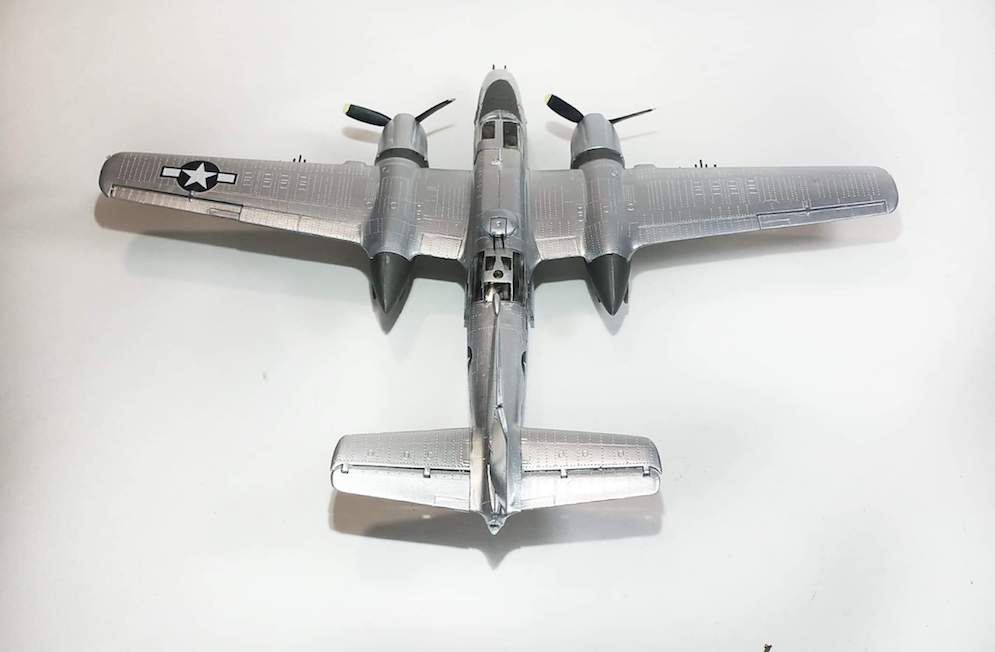

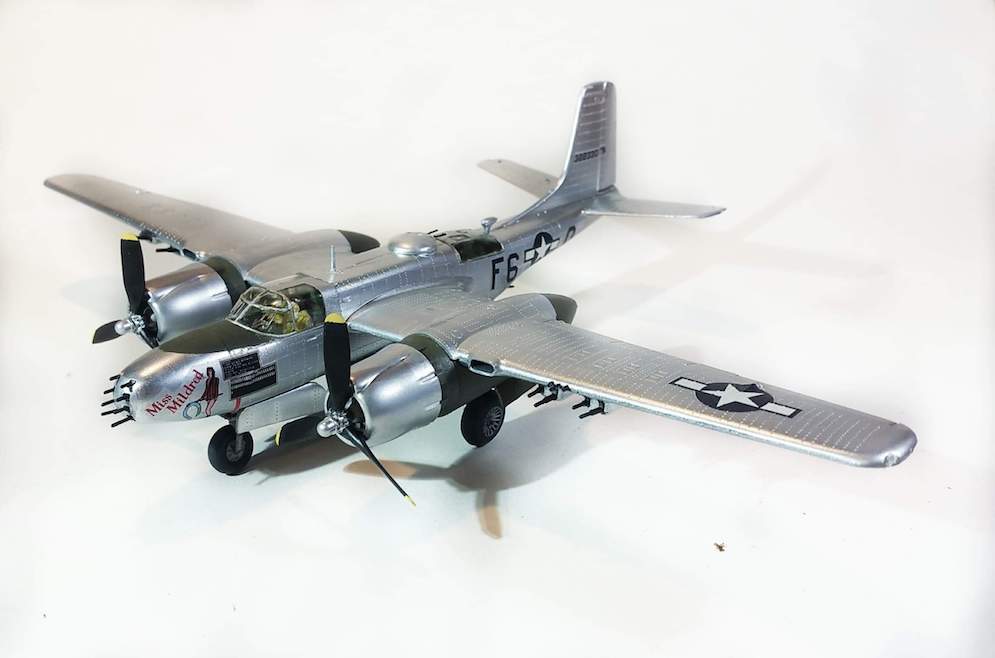

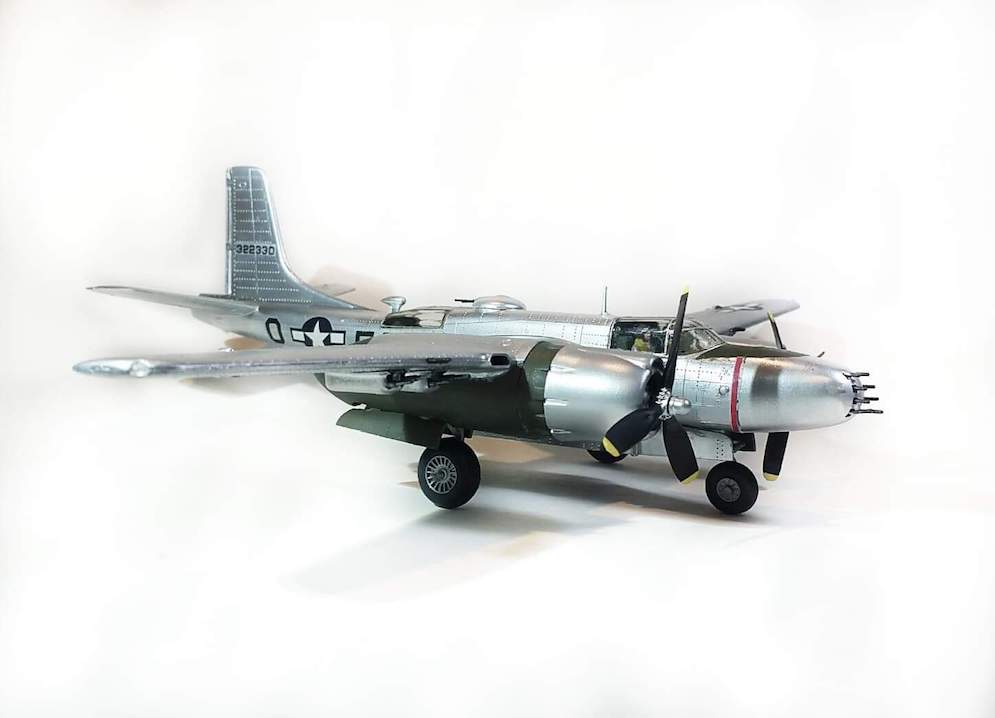

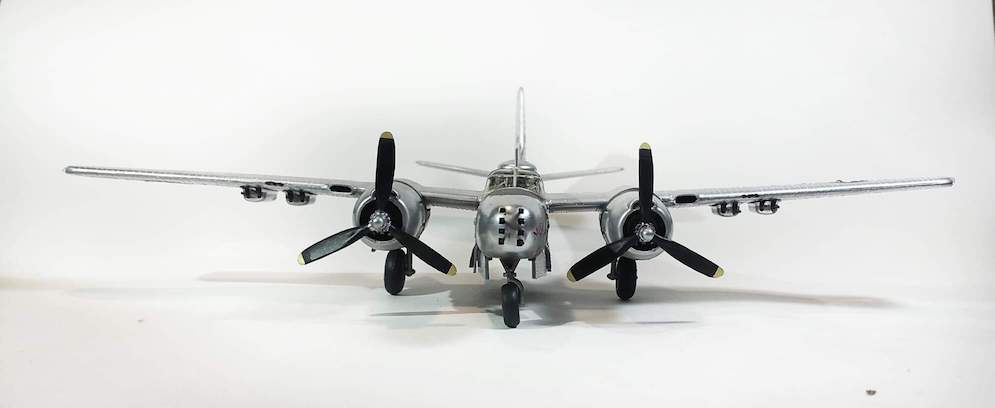

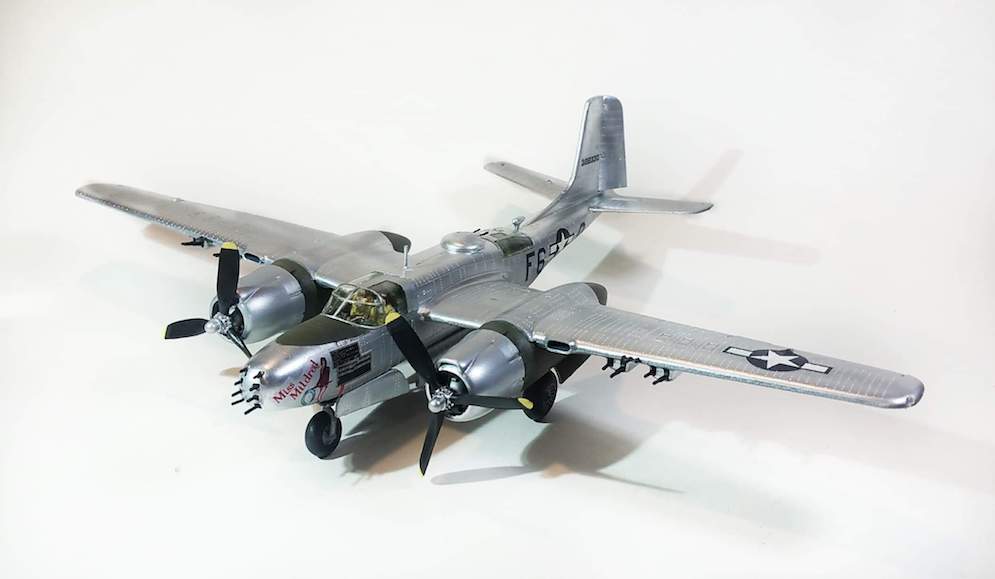

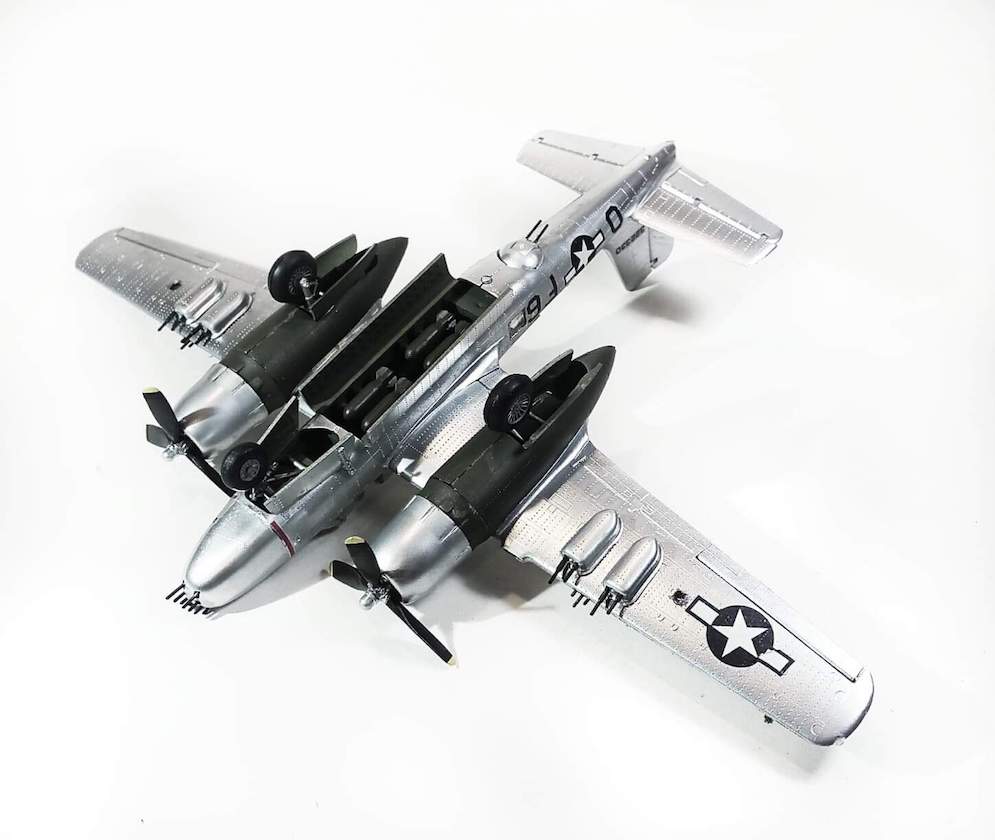

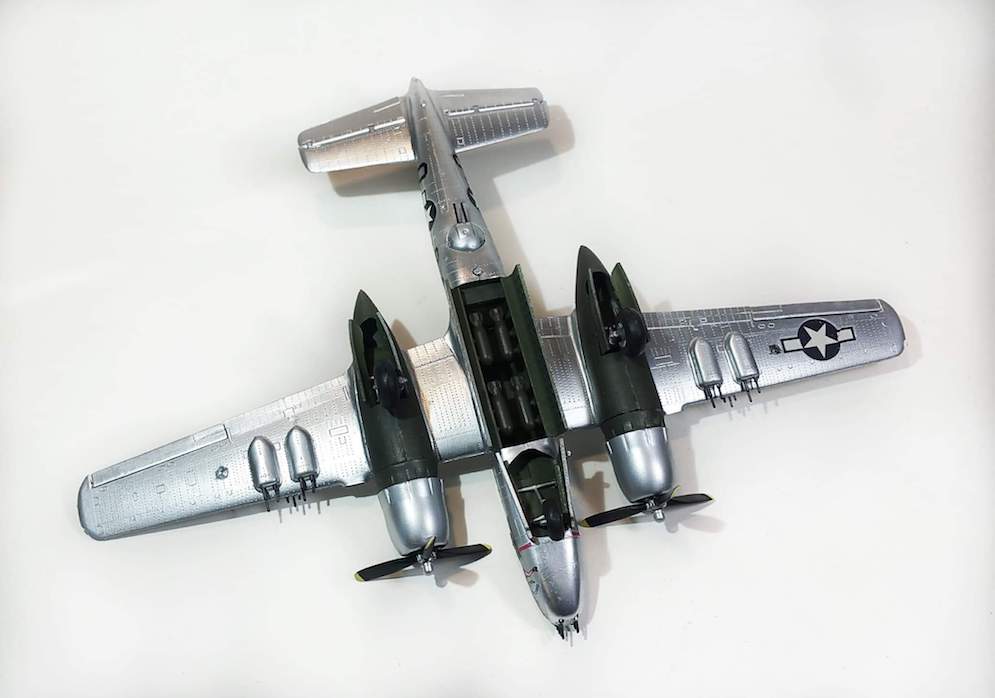

I bought this kit second hand from my a model show a few years back and it is the old classic Airfix 1:72 kit. I have always loved WW2 planes. For an old kit I was impressed by it as no flash on the parts, fit was brilliant, clear parts nice and shiny. Even though the decals were ancient they were not yellowed or brittle and slid into ace beautifully without silvering.

It has sone nice touches like the bomb racks incorporated into the bomb bay doors. Helps to get perfect alignment for the “eggs” the nose cone was separate too so plenty of room to add nose weight and being a tricycle undercarriage definitely needed on this plane. I painted it in Humbrol rattle cans. No.11 Silver for the outside and No.86 Light Olive for the interior.

A great kit which I highly recommend to buy if you see it or sale or build if still in your stash.

Happy modelling, Alastair G.

This is the Trumpeter 1:48 scale kit straight from the box. I even used the decals out of the kit, as I am not aware of any aftermarket decals.
Being aware of the usual glitches in the Trumpeter and HobbyBoss kits I searched for a picture of the real bird and found it in Naval Fighters Number 46 “Fleet Whales” on page 17.
…AND it proved that the kit instructions are wrong in two areas – first there are no rear guns and second there is no radome on top of the fin. On the positive side there is a fully equipped training room in the former bomb bay.
I love this elegant bird.
Jürgen J.

L

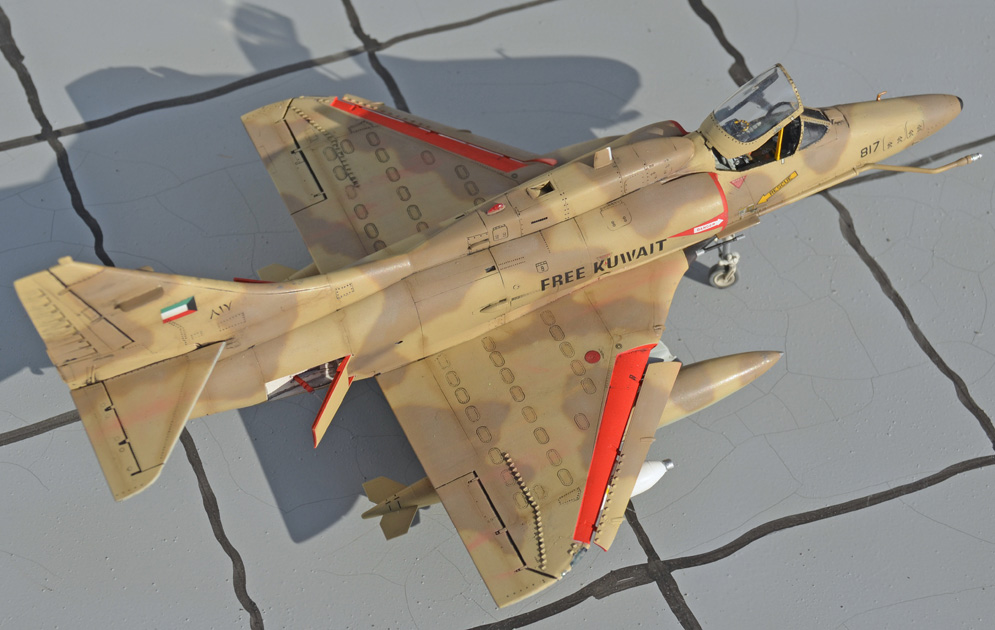

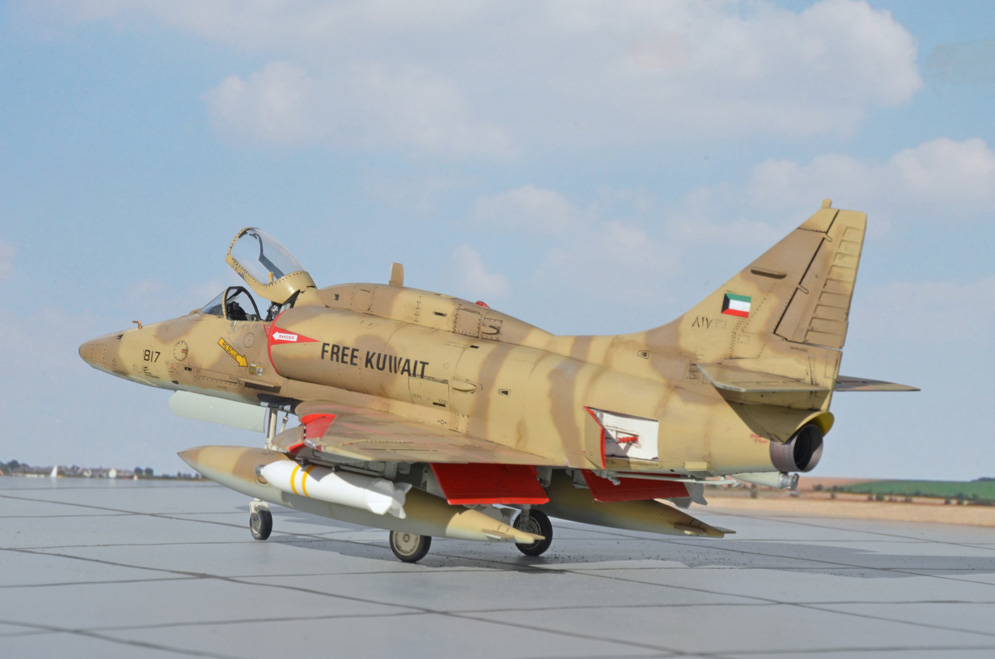

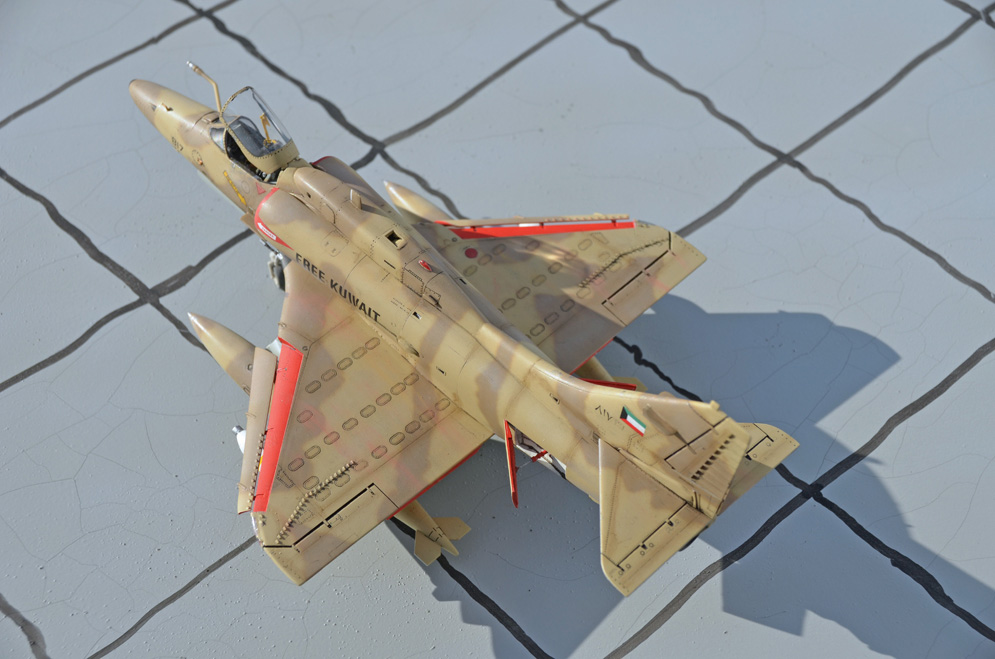

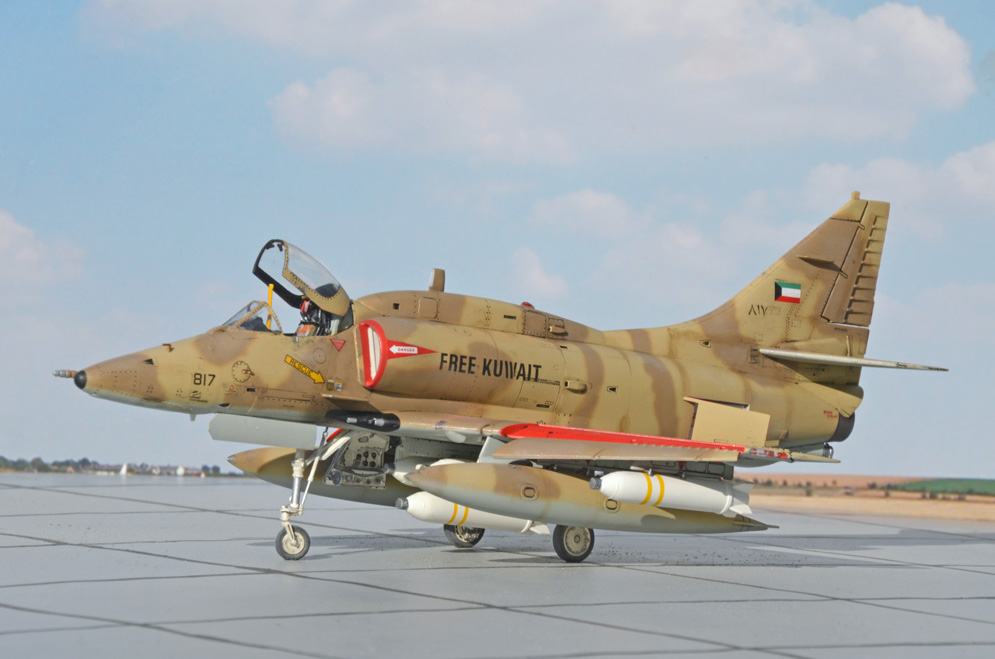

This build is based on the Hasegawa A-4M Skyhawk PT33 kit in 1:48. But you can use any of the various A-4M kits from Hasegawa. The initial plan was to make a AF-1 15 years anniversary bird from the Brazilian Navy as by the Caracal Decal set CD48070. BUT- The proud owners of this bird seem to have kept it in VERY pristine condition, no dirt, no weathering – just high gloss colours. And as none of my models look factory fresh I did not want to start a new trend.

A different finish for the already started project was needed. Easy in this case, as the former owner of these birds was Kuwait and the Kuwait Air force has a very interesting history considering the Gulf war in 1991. That made me remember my 20 year old Superscale decal set 48-399 (Free Kuwaiti Aircraft)! It took considerable research to figure out the correct camouflage scheme and positions of national insignia but I hope I got it right. Do not trust the Superscale instructions in this set! No Insignia on the wings, only some sporadic stuff on the fuselage. Otherwise some minimal conversion and antenna additions have to be done following the comprehensive instructions in the Caracal Decal set. Hope you like It.

My next A-4 project is the A-4SU prototype following the fantastic decal set from Milliverse of Singaporean A-4´s.
Jürgen J.

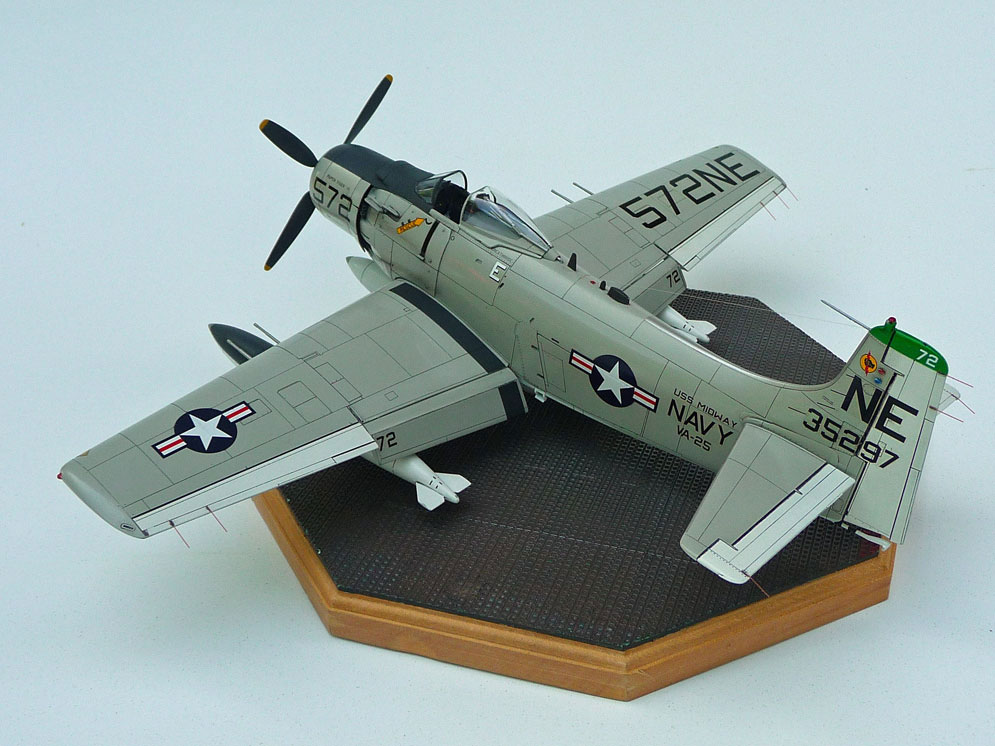

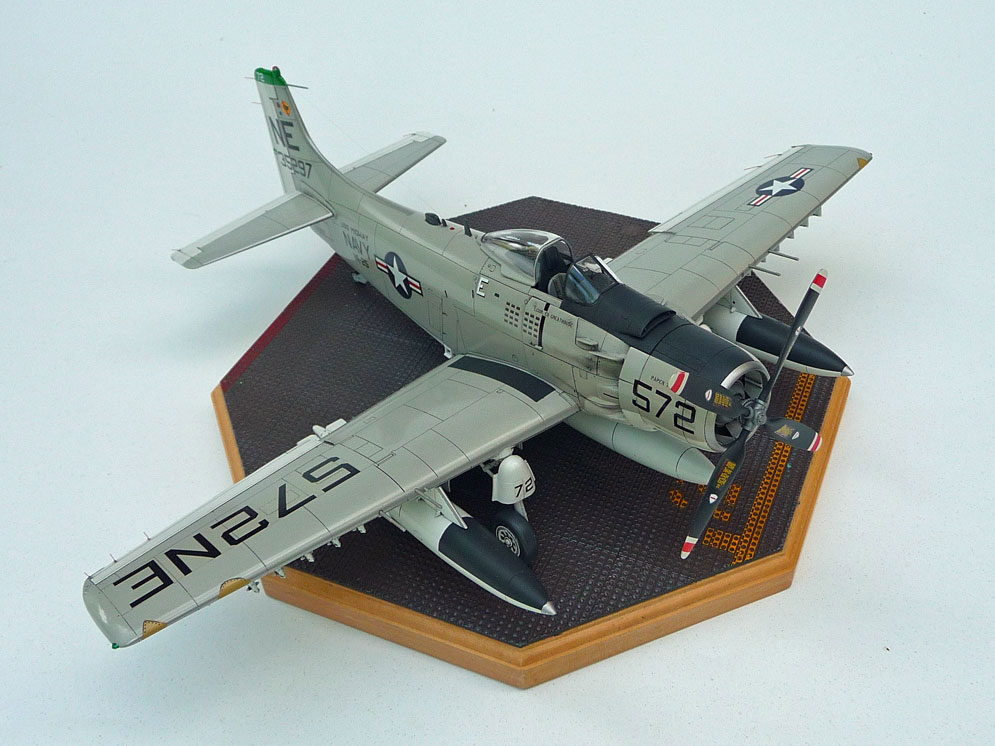

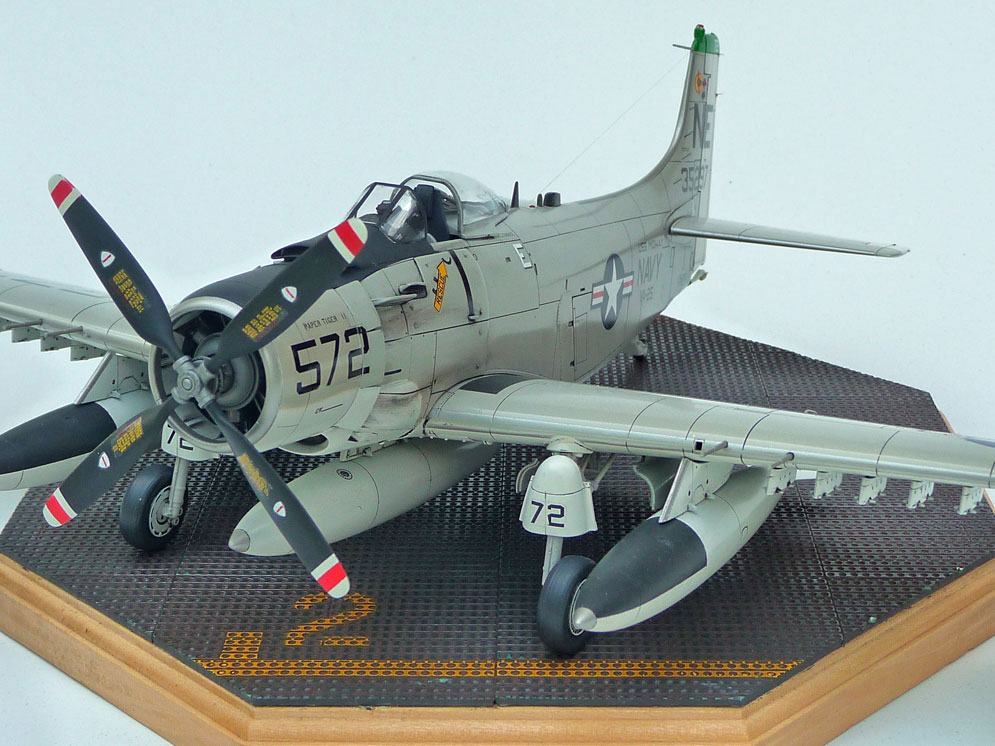

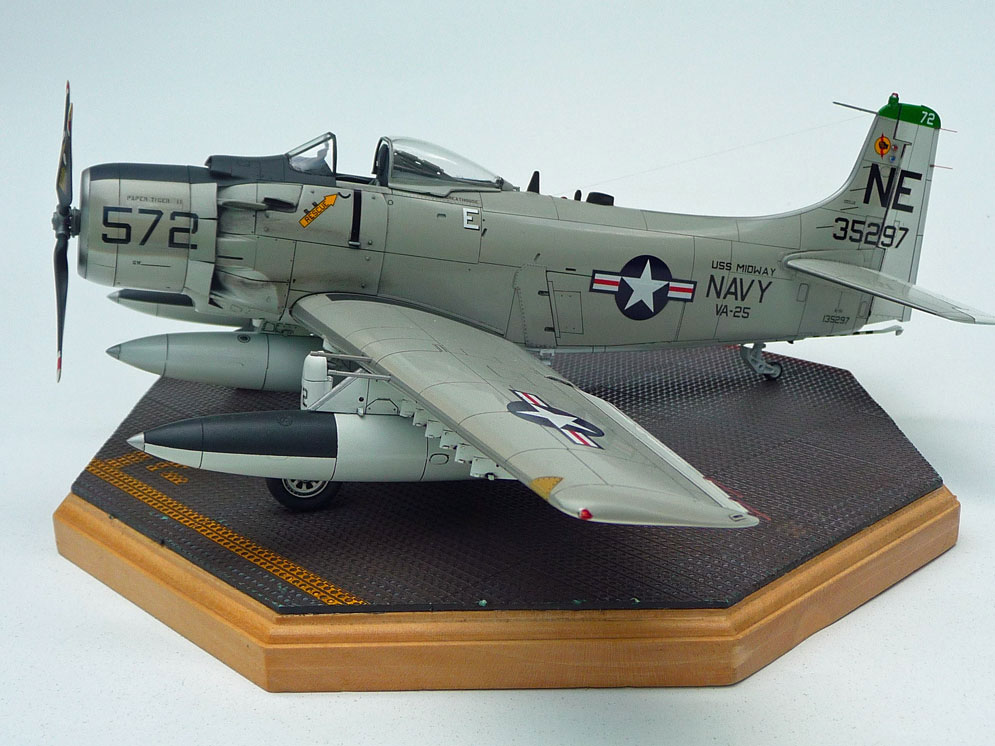

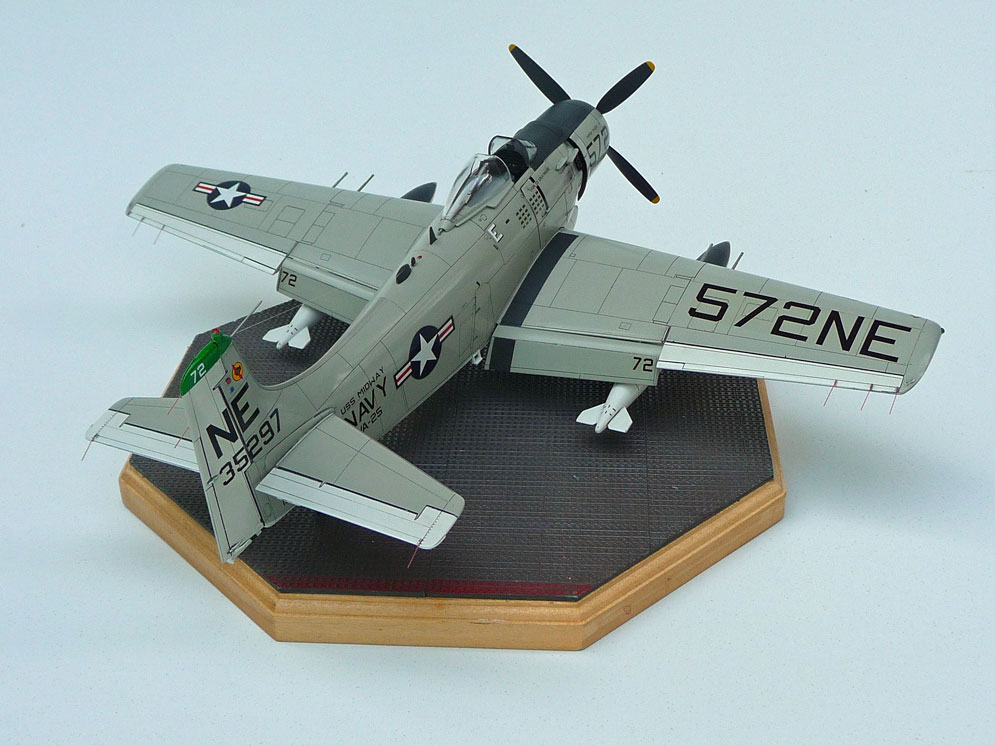

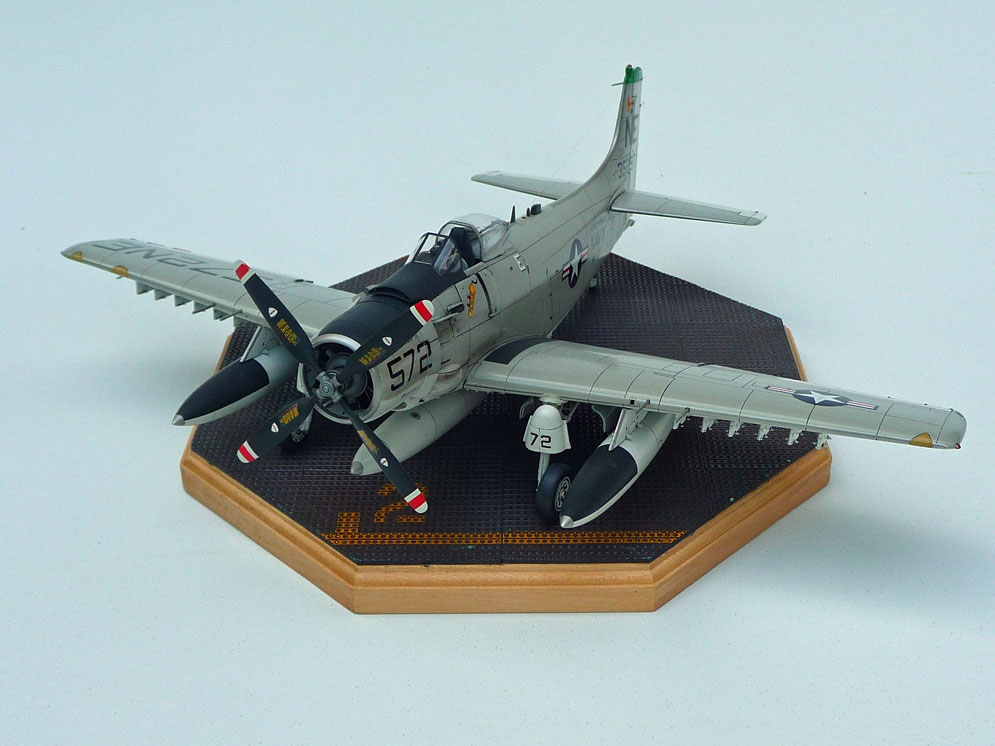

This is a Tamiya US Navy Skyraider in VA25 squadron markings, built from the 1:48 scale Tamiya A-1H kit.
The only additions to the kit, apart from the decals, were etched seat belts. Like most Tamiya kits, this was an easy build that goes together well with no filler required. I built and painted the model in sections, as I normally do, with fuselage, main wing and horizontal stabiliser, making up the main components. I used Aeromaster acrylic matt Light Gull Grey, and Tamiya matt White, to paint the components individually. These were then polished with 8000 Micro-Mesh, to give a sheen to which the decals would later be applied. Before applying those, I weathered each section with black artist gouache. This is a water soluble substance, so it’s simple to remove any excess from the polished surface of the painted model, by rubbing lightly over the surface with a damp tissue. This will leave the gouache in the panel lines and other areas I wanted to appear weathered. If too much is removed, it is simple just to dab on a bit more, perhaps to panel lines, which may need touching up. When I was happy with the result, I gave all the sections a final polish with Micro-Mesh, to ensure a smooth finish for the decals to stick on.
The decals are from Aeromaster set 48-530. Anyone who has used these decals will know they are of excellent quality; the set lived up to their reputation adhering well to the prepared surface. I normally apply a coat of acrylic varnish over the entire model, to give the same finish on the model and the decals. This time, I was happy with the appearance, so I left it unvarnished.
Julian S.

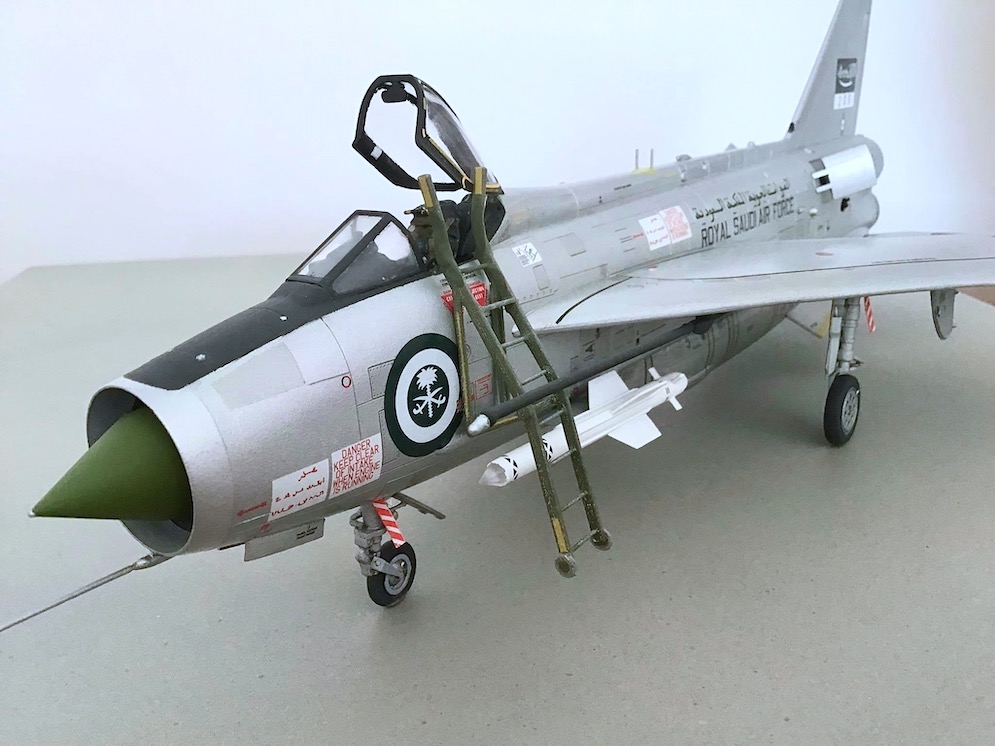

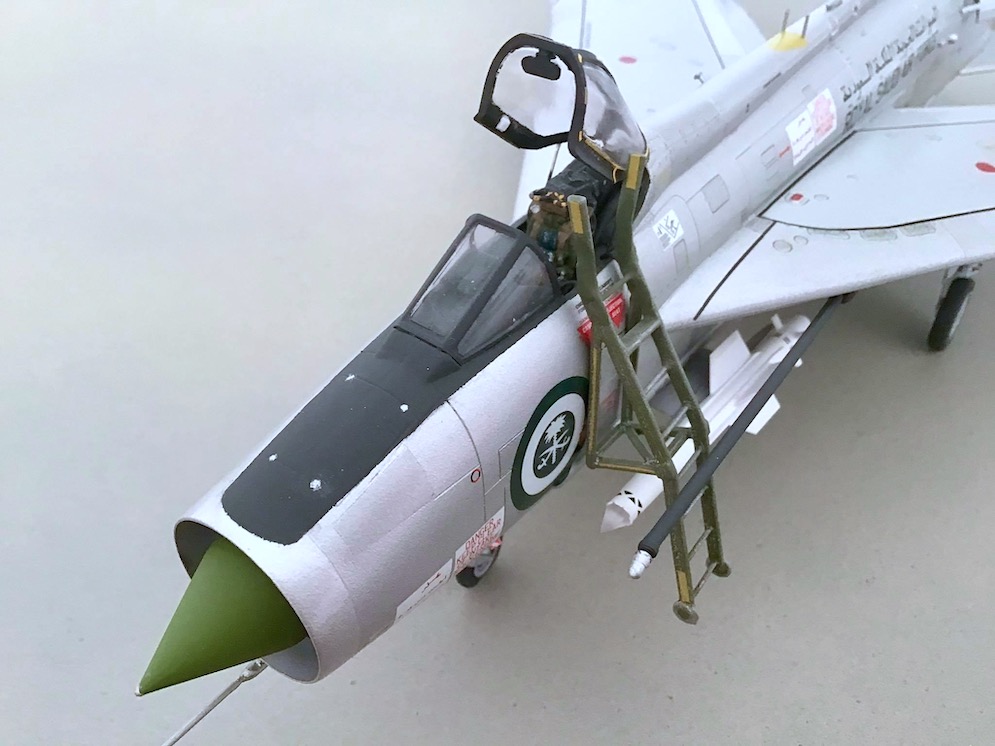

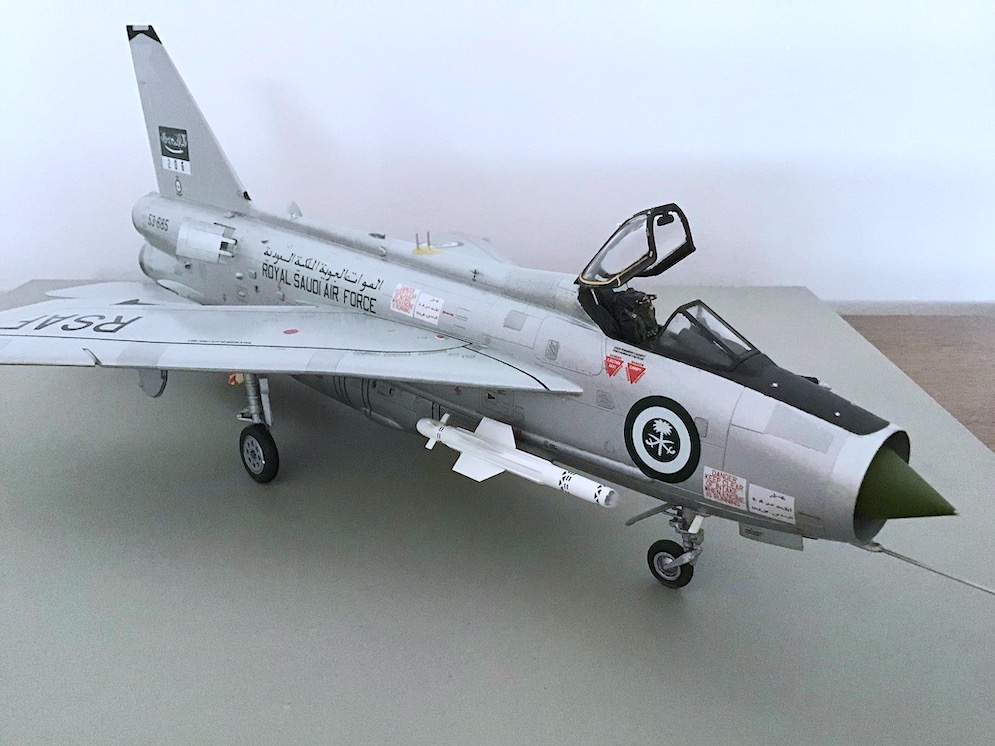

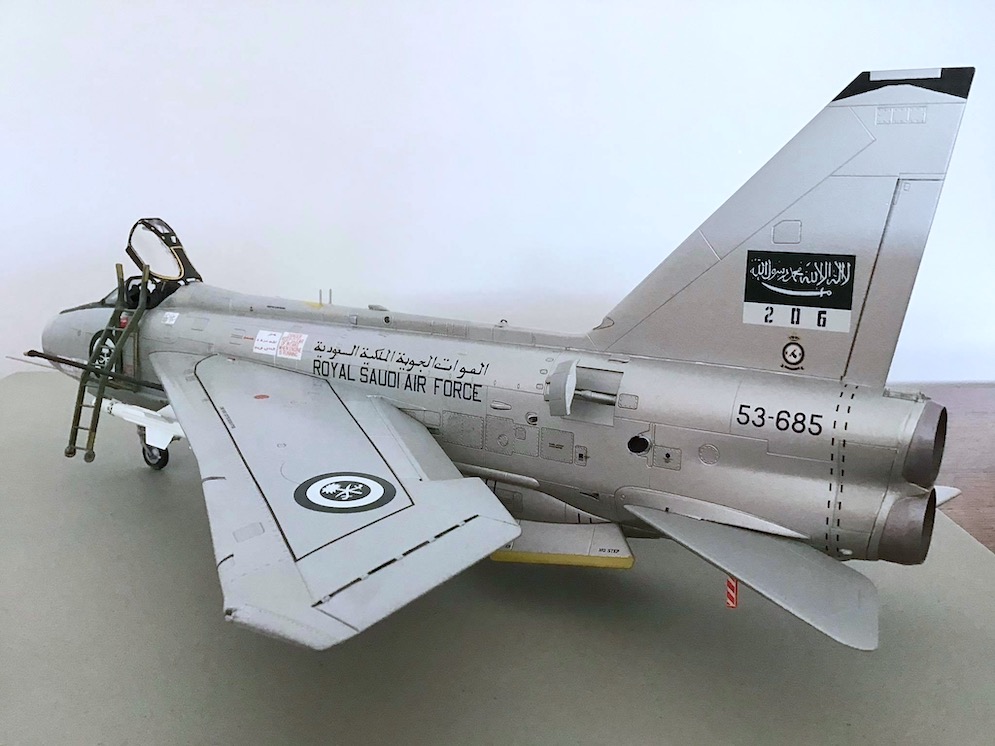

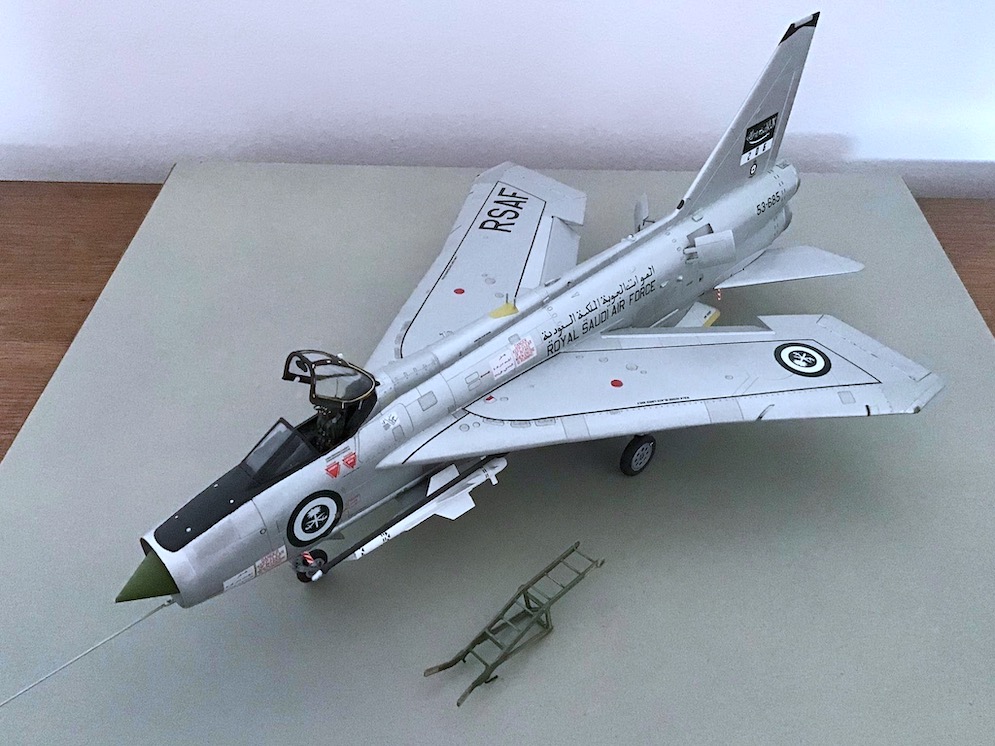

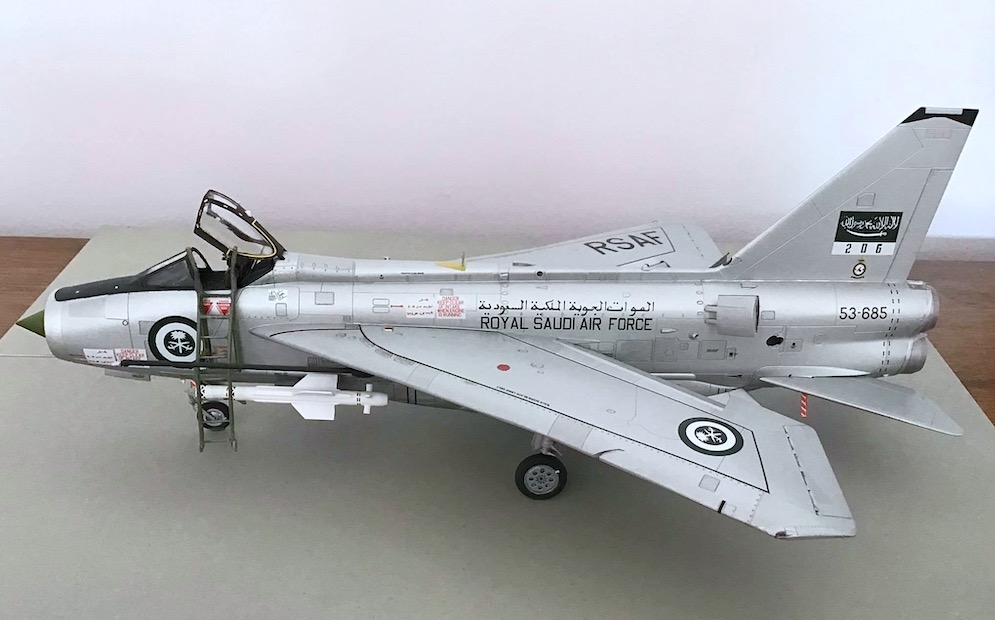

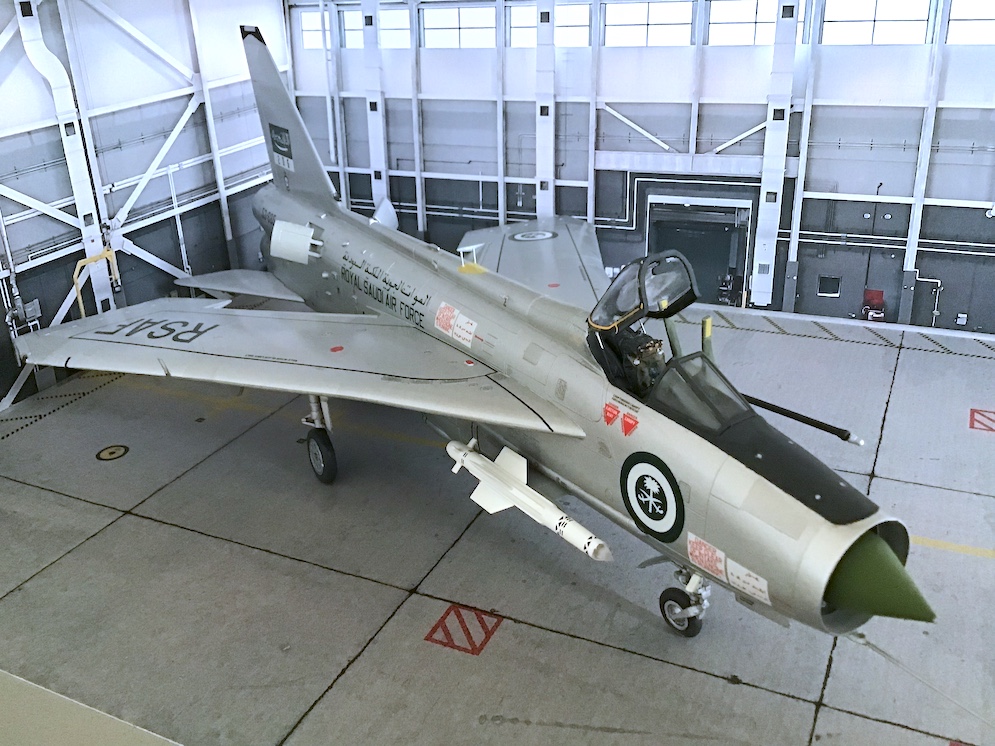

Hello,Friends – The Airfix 1:48 scale Lightning needs no introduction.

It’s a great kit of a great aircraft. The model was basically an ‘out of box’ build apart from aftermarket decals (Model Alliance) for the chosen scheme and the kit’s plastic pitot was replaced with a piece of Nickel Silver Wire cut to length.

Construction was speedy and straightforward.

I used grey acrylic car primer from a rattle can and Humbrol Metalcote Aluminium Enamels for the NMF. Selective panel shading was achieved by adding a tiny amount of black into the airbrush cup. A protective brush-applied coat of Klear/ Pledge was added before decaling and a further two coats after to achieve the level of finish.

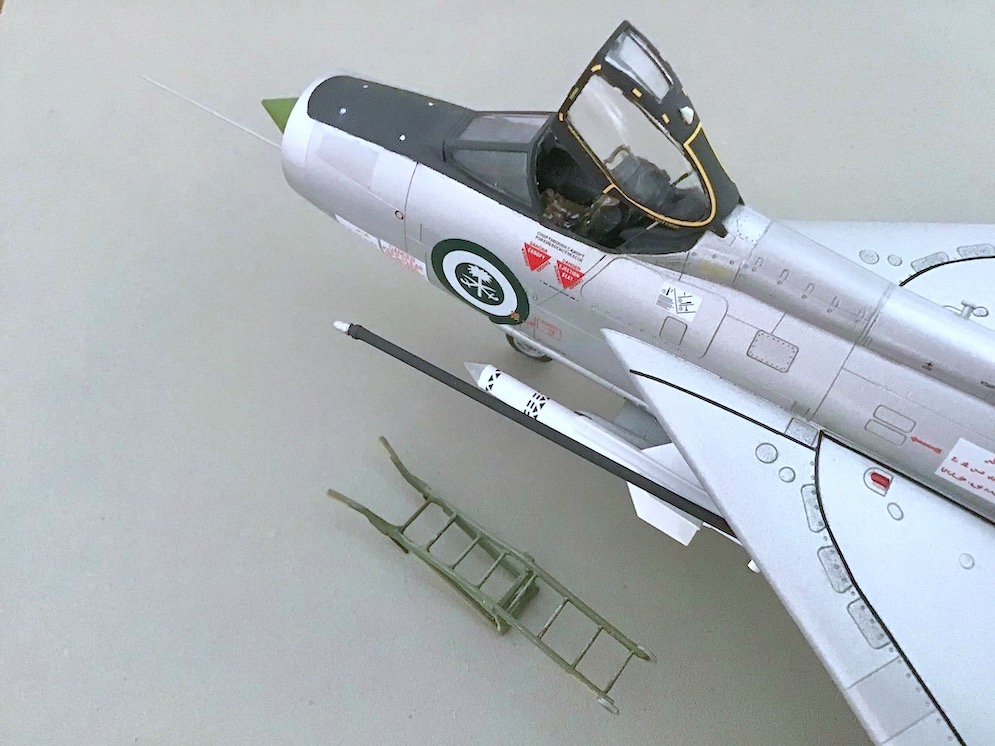

The access ladder is homemade from plasticard and rod. I added a discreet wire hook to an inner edge so the ladder can be simply added or removed without any fuss.

I hope you enjoy viewing. Thank You.
Paul A.

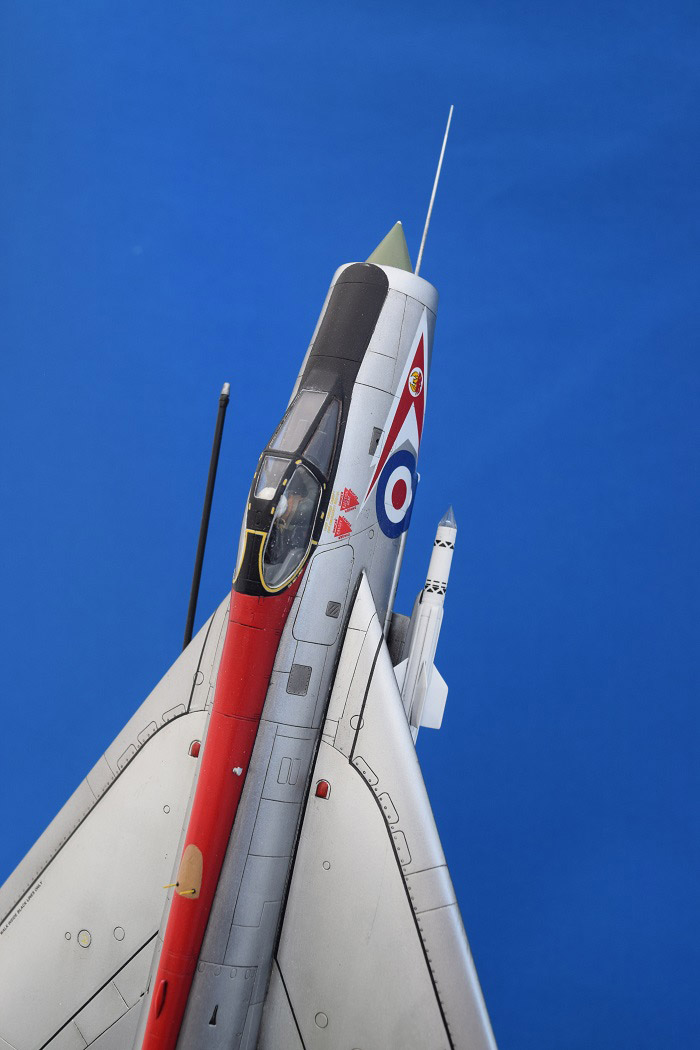

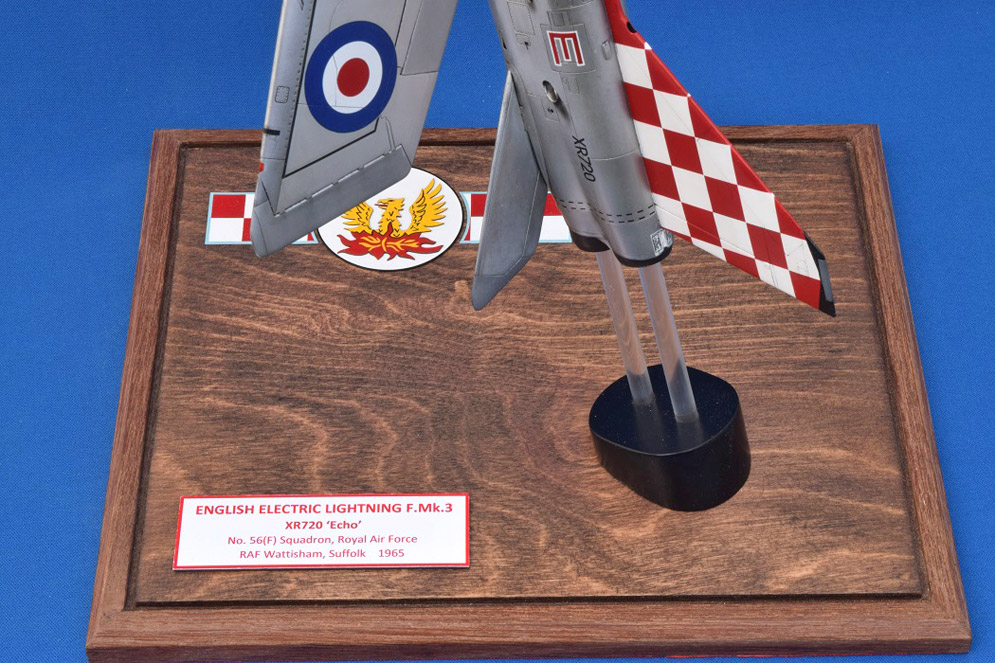

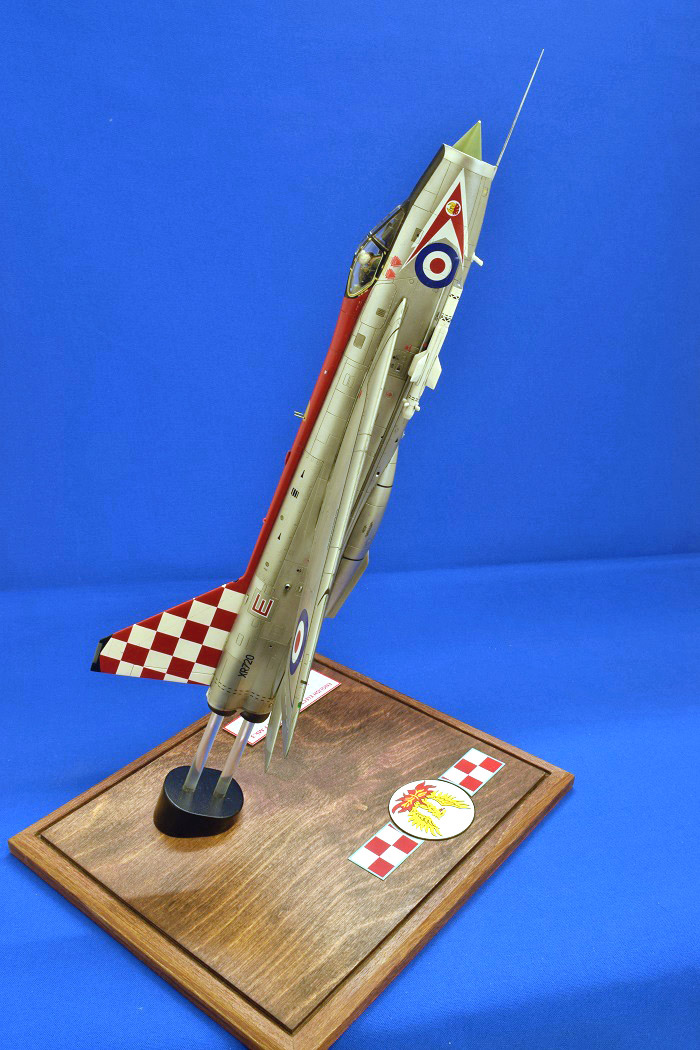

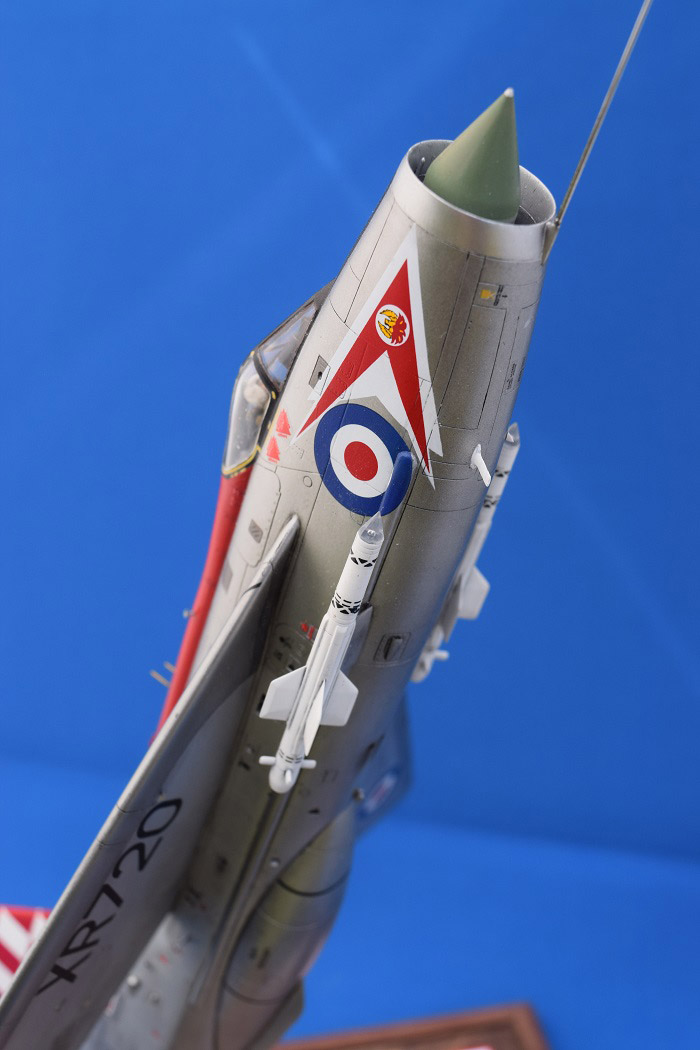

The English Electric Lightning has always been one of my favourite aircraft, particularly the F.3 with the larger tail, straight wing leading edges & small belly tank. When Airfix released their 1/48th version of this kit back in the 1990’s, I snapped one up and, together with Xtradecal sheet X035-48, planned to build one of the 56 Sqn aircraft with the red & white checked tail as an in-flight model.

Fast forward 10 years & I managed to get started. I built the kit straight out of the box, later on adding a Master brass pitot tube. All intakes & vents were opened up, thin brass sheet being used to form the deflectors around several of the vents. The undercarriage doors were not a particularly good fit in the closed position, requiring a fair amount of filler & rescribing. I’d decided to use Alclad2 for the first time, spraying polished aluminium over a gloss black base, but I was not happy with the result. The Alclad2 had shown up many areas which needed further attention, so the model was put aside until I had the enthusiasm to continue.

After another 10 years the model was dusted off & checked over. The decision was made to strip the paint off completely, re-scribe many of the panel lines & repair any damage. After successfully applying the Alclad2, decals were applied. Some of the Xtradecals broke up on application, particularly the fin markings which required a lot of respraying. One problem emerged when applying the nose red & white arrows, as they overlapped the cable ducts – photos show they should be clear of the ducts. It appears that the location holes for the ducts are positioned 14mm too far forward. (The F2A/F6 kit appears to be ok in this respect). I managed to remove some of the duct, tidy up & repaint.

The model is mounted on a base of birch ply with teak strip edging, chamfered with a router. I combined the two elements of the 56 Sqn. markings, transferred onto plastic card & painted. A printed nameplate completed the project.

Overall, I am pleased with the finished model, despite all the setbacks. If anyone has one of these kits in the stash, just be aware of the issue with the cable ducts.

Rob C.

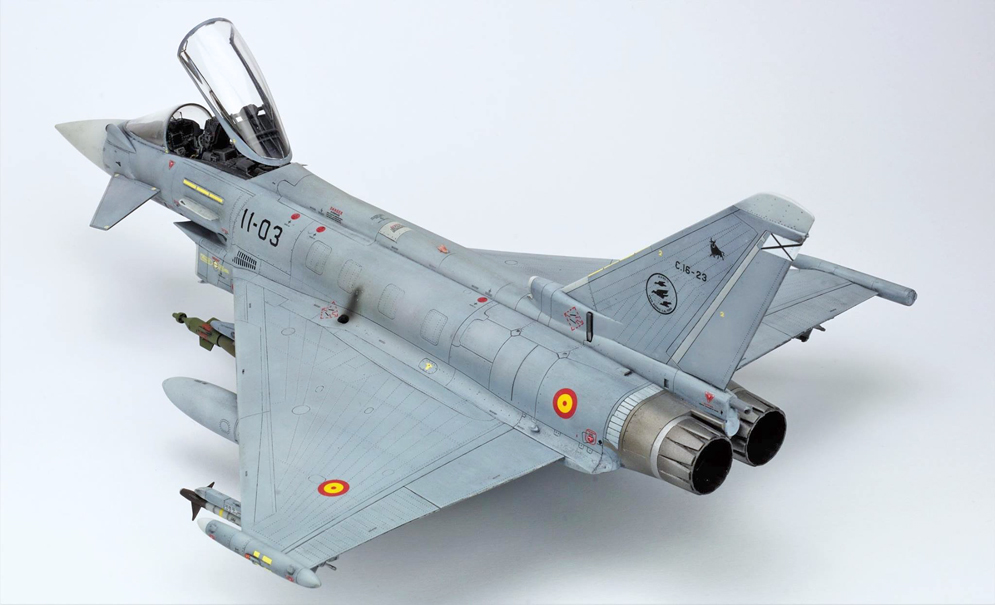

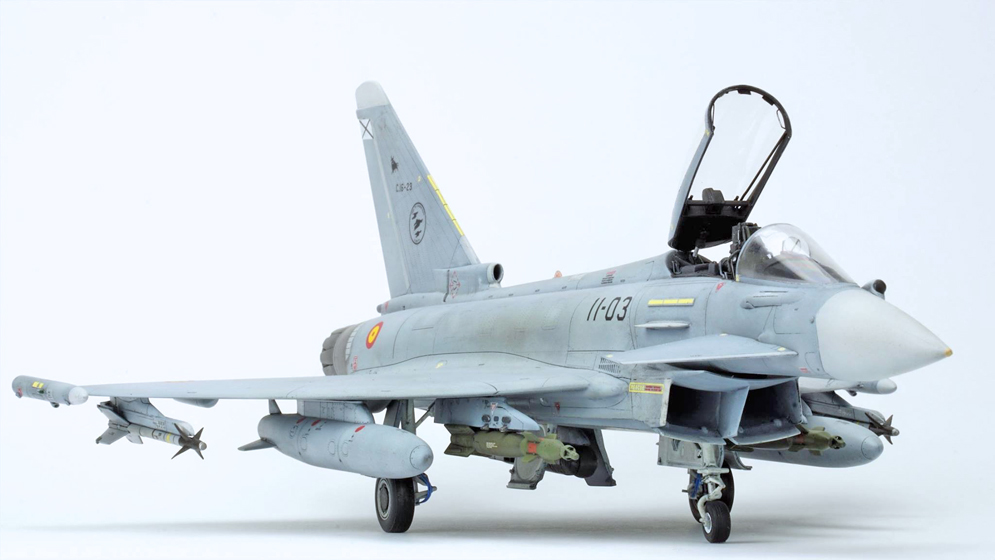

The next build I’d like to share is Revell’s wonderful 1:48 scale Eurofighter Typhoon.
Not a single piece of aftermarket parts was used for this build, which is quite unique for me.
With a rivet wheel, a bunch of rivets was added on the wings, tail, and fuselage.
The model was painted with Gunze paints over Alclad black primer and weathered with grey wash and pastel powders.
Hope you like it!
René VDH.

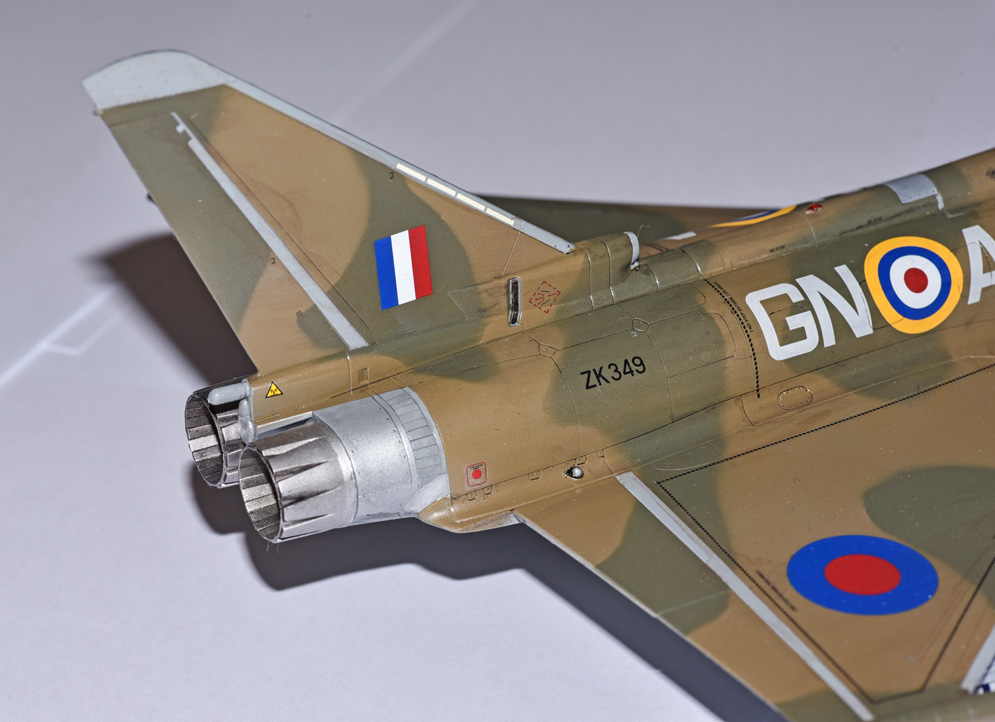

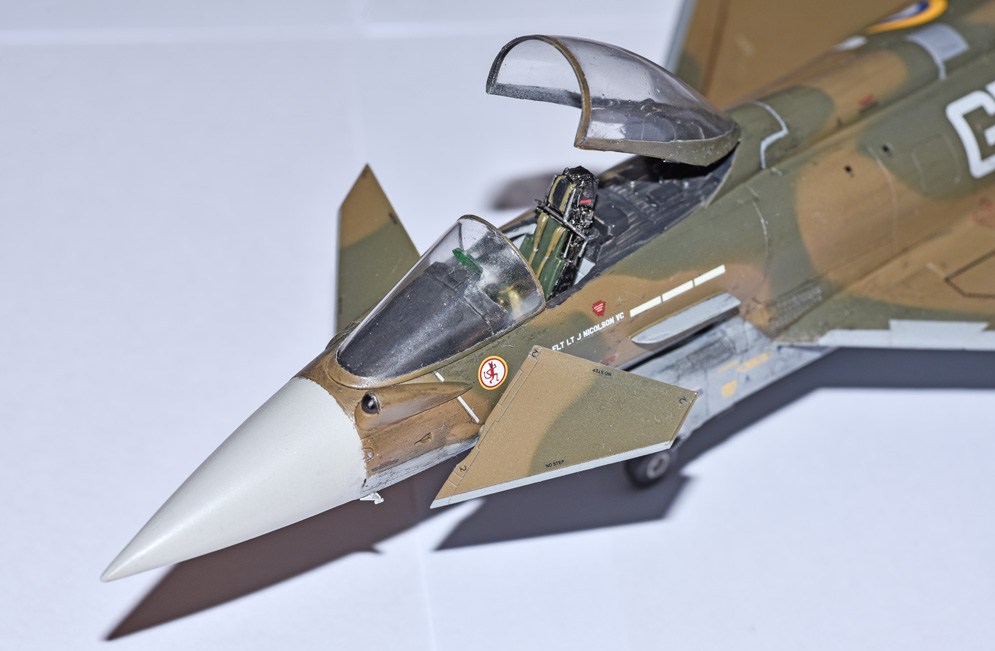

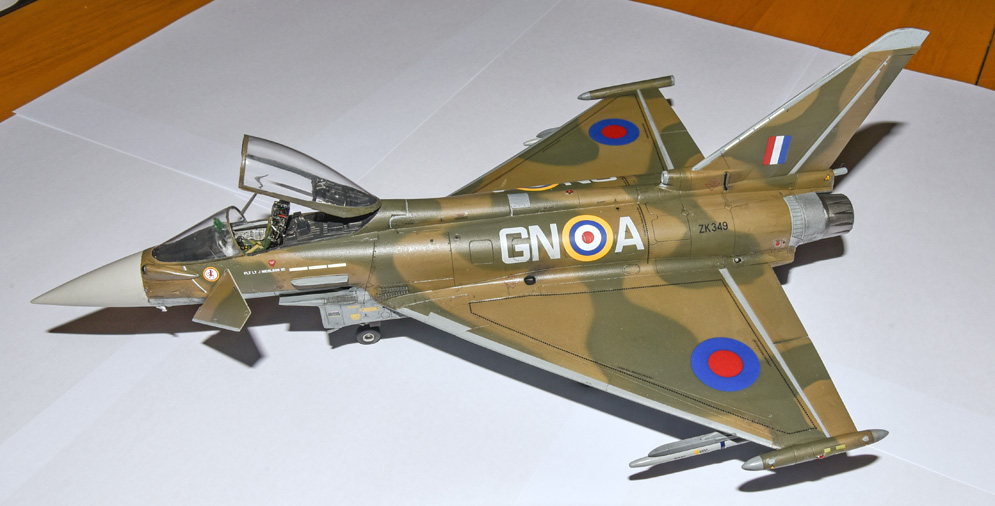

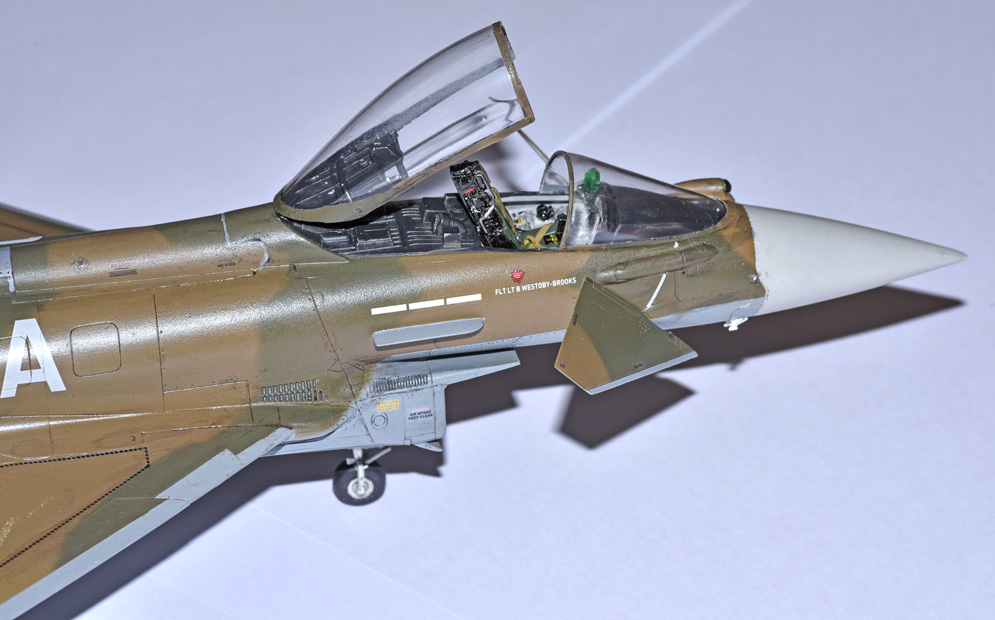

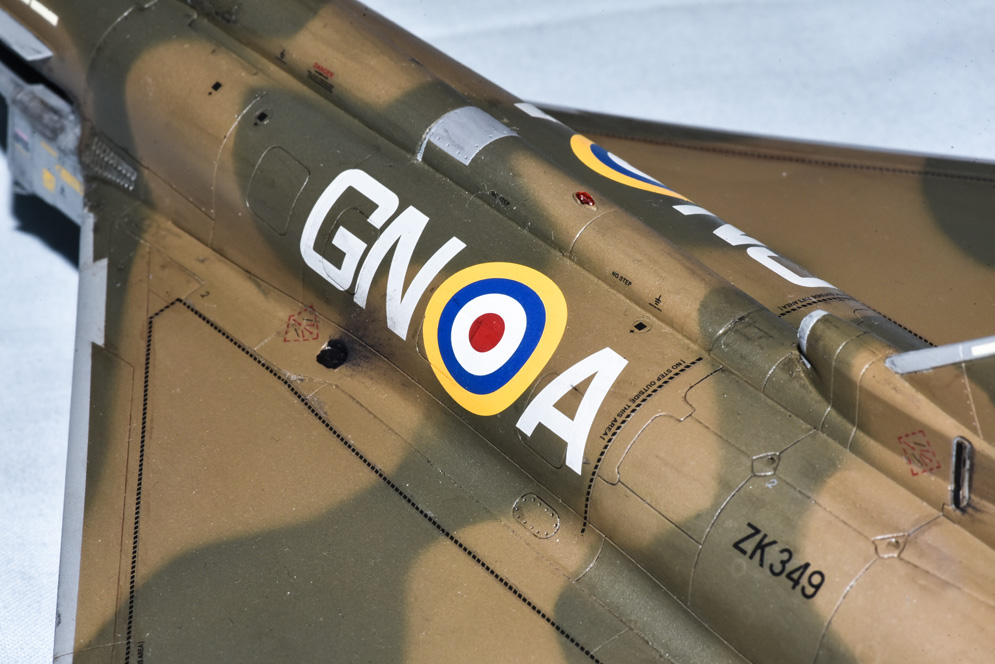

Eurofighter Typhoon FGR-4 ZK349 29(R) Squadron “GiNA”. The 75th Anniversary of the Battle of Britain, celebrated in 2015, RAF Coningsby, Lincolnshire, UK.

Kit – Revell 1:48 Bronze Tiger – kit no. 03949
Built out of the box.
Decals – Caracal set No. 48090

Paints used:
Mr Hobby
Alclad2
Revell enamels

Hope you like it!
Keith S.
